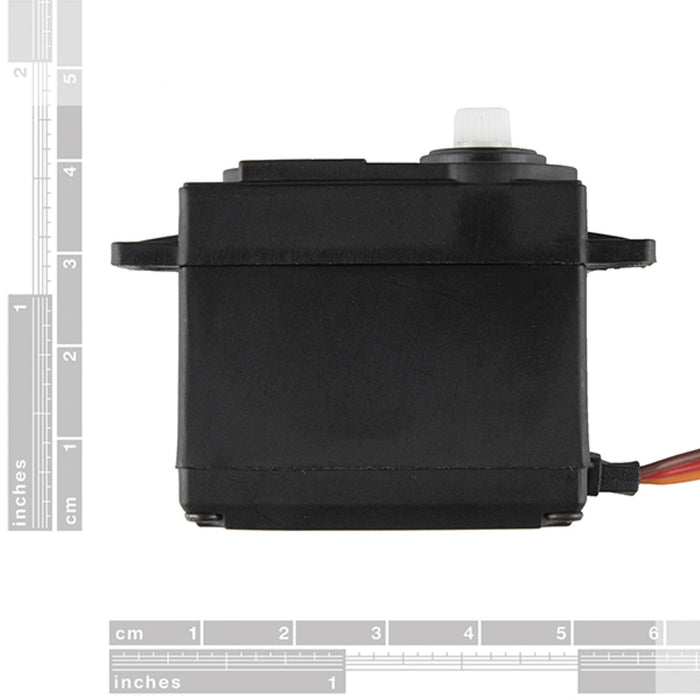

Servo - Generic High Torque (Standard Size)

A reliable, high-torque standard-size servo (FS5106B) with dual ball bearings and nylon gears. Delivering up to 83.47 oz-in of torque at 6V with a speed of 0.16 sec/60°, it's a versatile choice for robotics, RC, and mechatronics projects.

Features a standard 3-pin power and control cable with 180° rotation range. Includes a full set of horns and mounting hardware.

Specifications

• Model – FS5106B
• Voltage – 4.8–6.0V
• Torque – 69.56 oz-in (4.8V) / 83.47 oz-in (6.0V)
• Speed – 0.18 sec/60° (4.8V) / 0.16 sec/60° (6.0V)
• Rotation – 180°
• Direction – Counterclockwise, 1000–2000 µs pulse
• Bearings – Dual ball bearing
• Gears – Nylon
• Spline – 25T (Futaba 3F compatible)
• Dimensions – 40.8 × 20.1 × 38 mm
• Wire Length – 300 mm
• Weight – 40 g

Ideal For

• Robotics and animatronics
• RC vehicles and aircraft
• Pan-tilt mechanisms
• General-purpose mechatronics

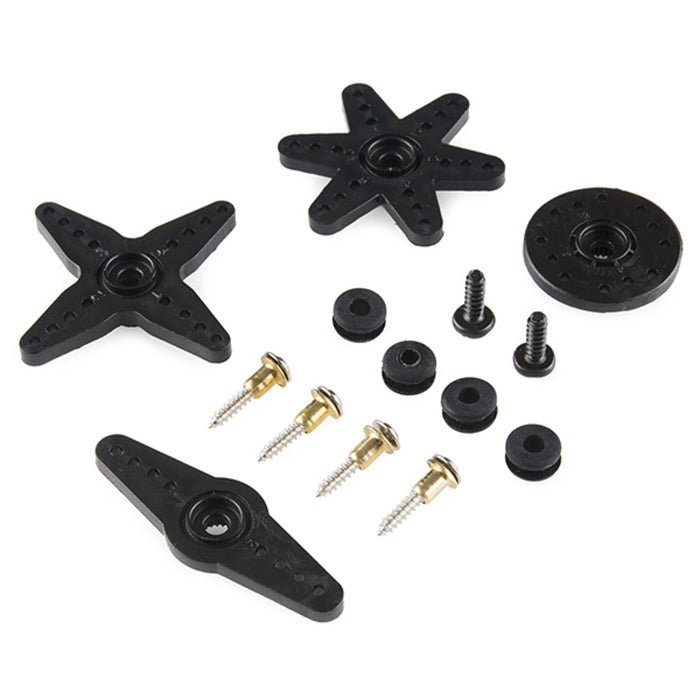

Package Contents

• 1× FS5106B High Torque Servo
• 1× Double arm horn
• 1× Circle horn
• 1× Four-point horn
• 1× Six-point horn
• 2× 3 × 10 mm Phillips screws
• 4× 2 × 13 mm mounting Phillips screws
• 4× Rubber grommets
• 4× Brass eyelets

Resources

• FS5106B datasheet (PDF)
