LED Current Meter 10A (Green)
We have ✅ 1 available of the DF-DFR0244-G in our Sydney warehouse. An extra 19 units available with a short lead time.

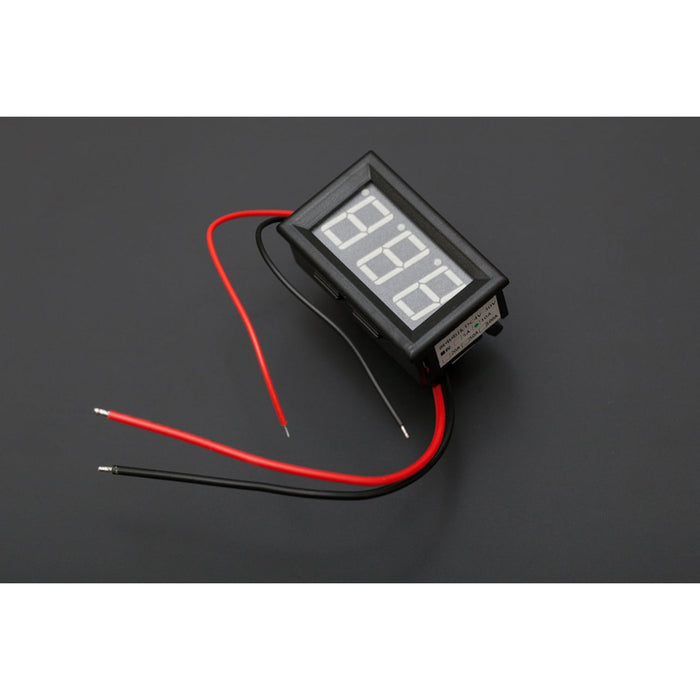

A panel-mount LED current meter that measures 0–9.99 A DC with 2% accuracy. The bright green 3-digit LED display is easy to read, and the meter requires no external circuitry — just connect four wires and it gives a reading straight away.
Designed for embedding into enclosures and panels, the meter fits a standard 45.5mm × 26.5mm cutout and operates on a 4–30V DC power supply.
Key Features
- 0–9.99 A DC Range – Suitable for a wide range of circuits
- 2% Accuracy – Reliable current readings
- Green LED Display – 3-digit, 0.56″ LED digital tube for clear visibility
- Simple Wiring – Four-wire connection, no external components needed
- Panel Mount – Standard cutout for easy enclosure installation
Specifications
- Measurement Range – 0–9.99 A DC
- Supply Voltage – 4–30V DC
- Display – 3-digit 0.56″ green LED
- Accuracy – 2%
- Cutout Dimensions – 45.5mm × 26.5mm
- Overall Dimensions – 48mm × 29mm × 21mm
Warning: The power supply and measurement terminals share a common ground. The measurement terminal must be connected in series after the load. For best results, use an isolated power supply for the meter.
Ideal For
- Monitoring current draw in DC circuits
- Robotics and automation projects
- Power supply builds and test benches
- Panel-mounted instrumentation
Package Contents
- 1× LED Current Meter 10A (Green)
