Gravity: Analog EMG Sensor by OYMotion
385 units available with a short lead time.

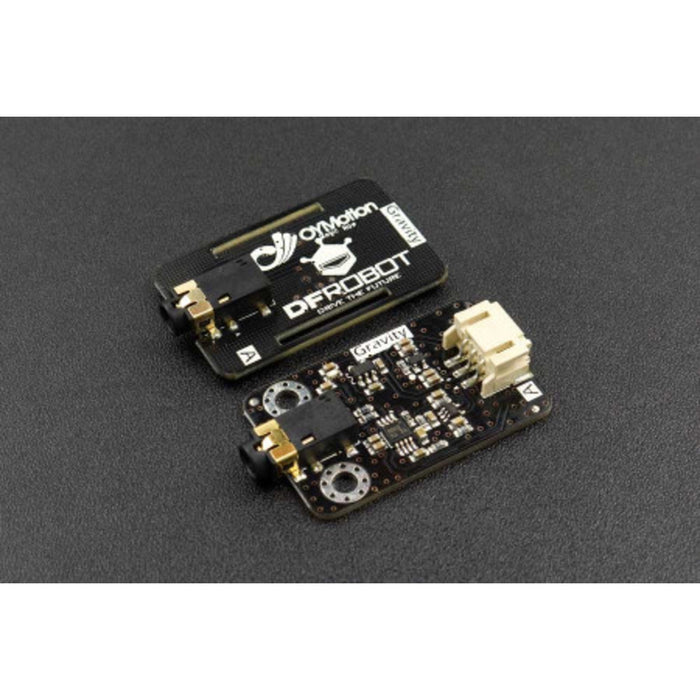

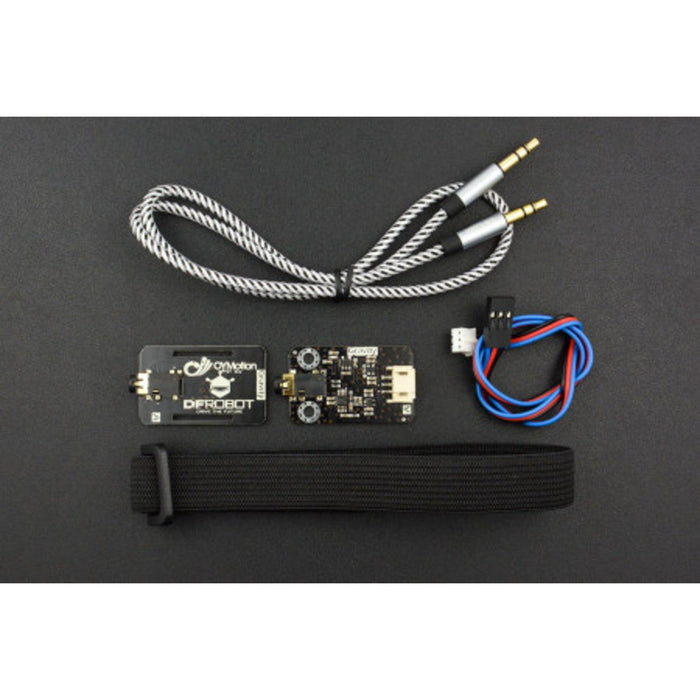

The Gravity Analog EMG Sensor by OYMotion detects surface electromyography (sEMG) signals to measure muscle and neural activity. The sensor amplifies the tiny sEMG signal (±1.5 mV) by 1000× and filters noise through differential input and analogue filtering, outputting a clean 0–3.0V analogue signal with 1.5V reference voltage.
The module uses reusable metal dry electrodes — no conductive gel required — making it convenient for repeated use in both static and dynamic applications. Connect to an Arduino or other microcontroller to detect muscle tension, measure contraction strength, and analyse sEMG waveforms.
Key Features
- 1000× Signal Amplification – Amplifies ±1.5 mV sEMG signals to a 0–3.0V analogue output
- Differential Input – High common-mode rejection ratio for noise suppression
- Metal Dry Electrodes – Reusable, no conductive gel needed
- Analogue Output – 0–3.0V with 1.5V reference, Gravity interface compatible
- Low Power – Single supply, minimal current draw
- Effective Bandwidth – 20–500 Hz
Specifications

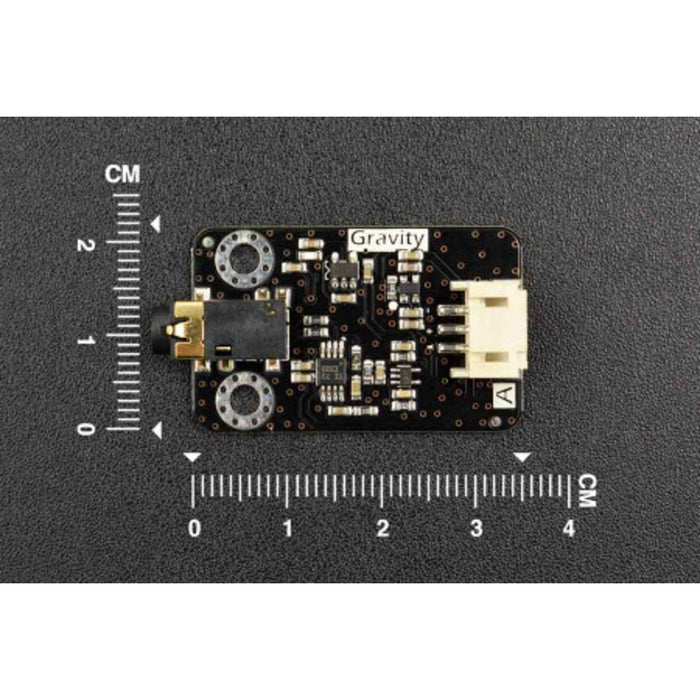

Signal Transmitter Board
- Supply Voltage – 3.3–5.5V
- Output Voltage – 0–3.0V
- Detection Range – ±1.5 mV

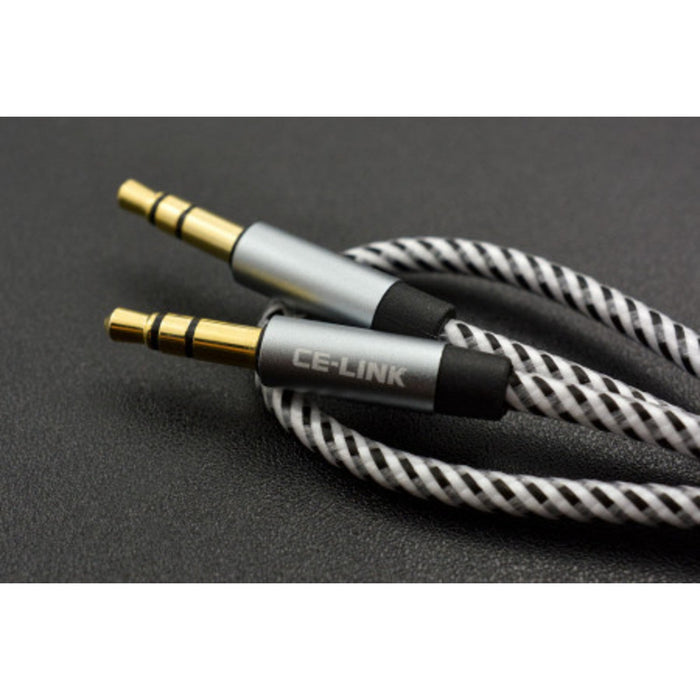

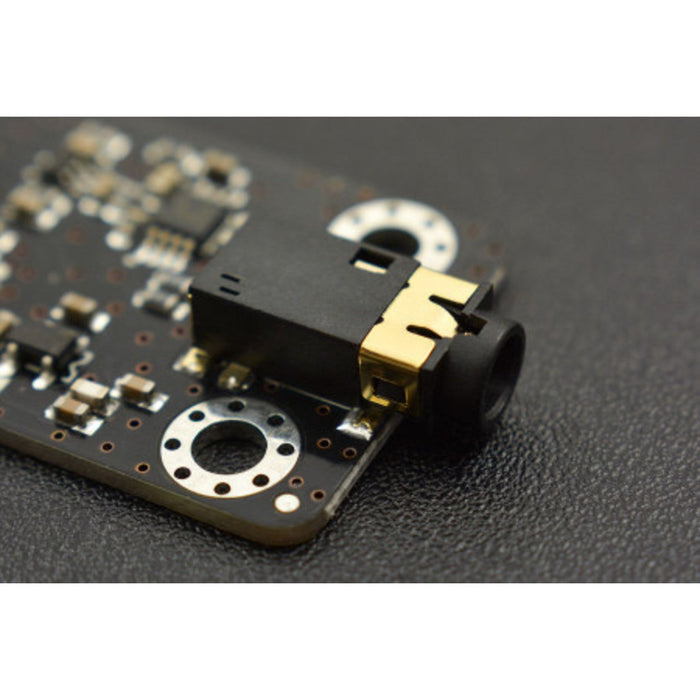

- Electrode Connector – PJ-342
- Module Connector – PH2.0-3P
- Operating Temperature – 0–50°C
- Board Size – 22 × 35 mm

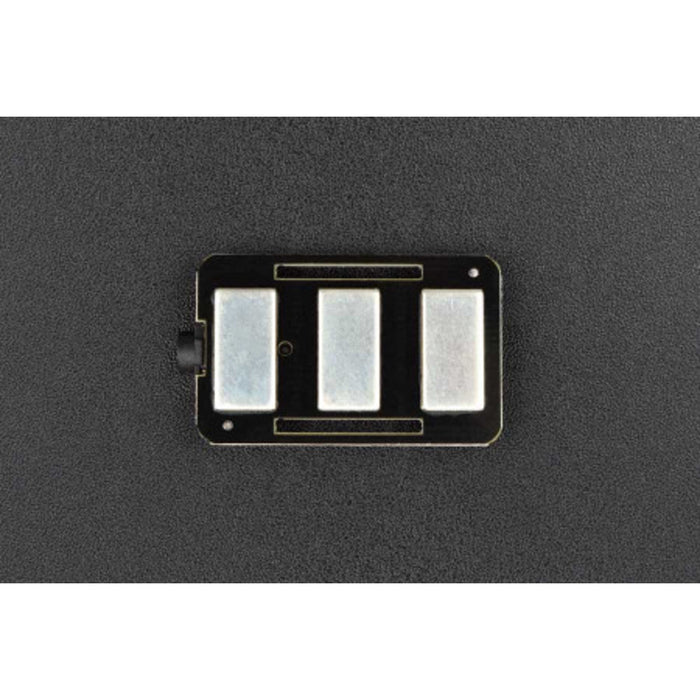

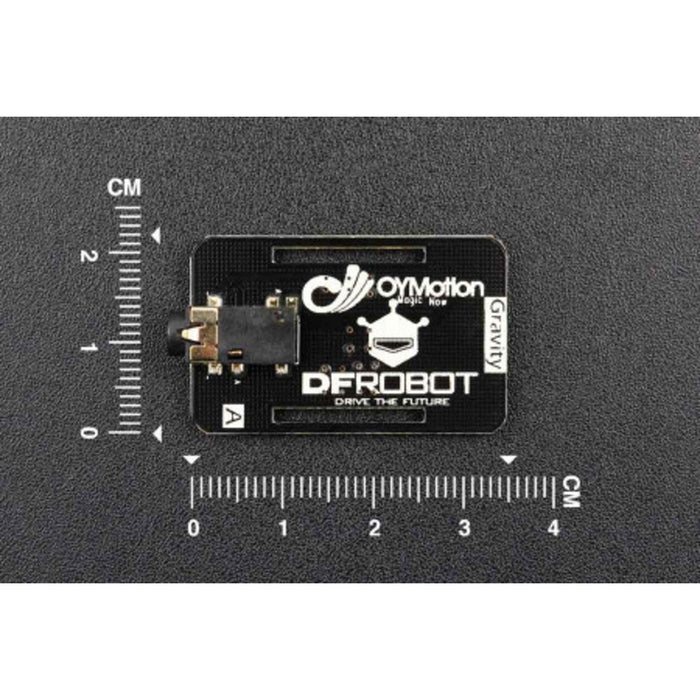

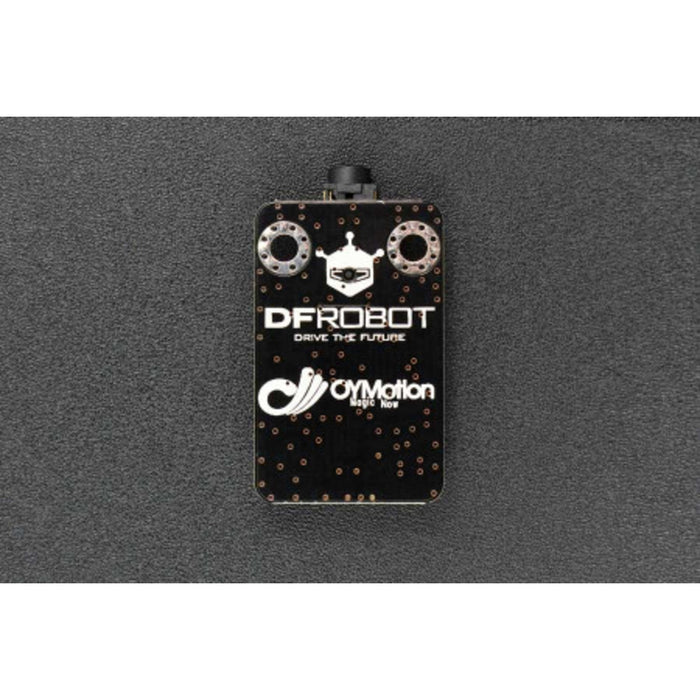

Dry Electrode Board
- Connector – PJ-342
- Wire Length – 50 cm
- Board Size – 22 × 35 mm
- Weight – 36 g
Ideal For
- Human-computer interaction prototyping
- Muscle activity detection and analysis
- Prosthetic and rehabilitation research
- Biometric Arduino projects
