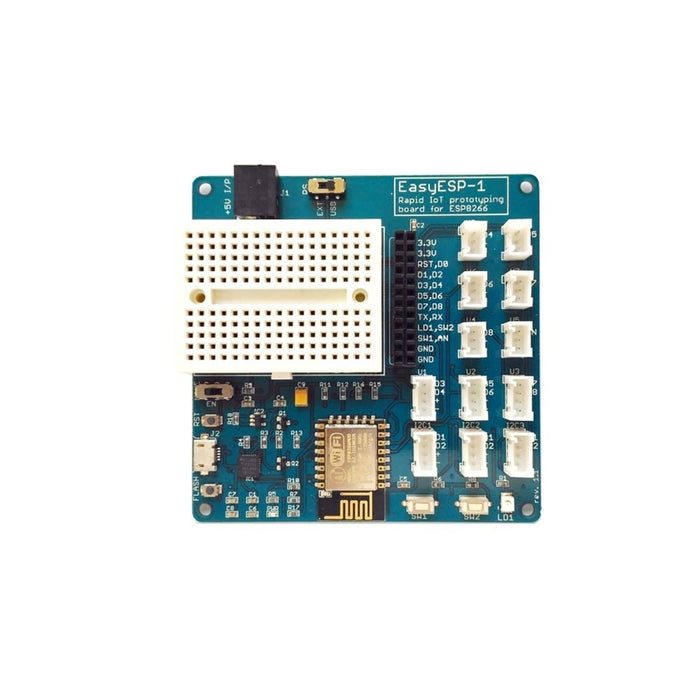

EasyESP-1: An ESP8266 experimenter board for beginners
We have ✅ 1 available of the EC-CDE82664E in our Sydney warehouse. An extra 100 units available with a short lead time.
The EasyESP-1 is a beginner-friendly development board for the ESP8266 Wi-Fi microcontroller, based on the ESP-12E module. It includes an onboard USB-to-serial converter (CP2102) so you can program and debug directly over USB — no additional hardware required.
All GPIO pins are broken out to 2.54 mm (0.1″) female headers and standard Grove/Crowtail connectors for plug-and-play sensor hookup. A built-in 180-point breadboard provides space for prototyping external circuits alongside the ESP8266.
Key Features
- ESP-12E Module – ESP8266 with Wi-Fi, programmed via Arduino IDE or Lua
- Onboard USB-UART – CP2102 for easy programming and serial debugging
- 180-Point Breadboard – Built-in prototyping area
- Grove/Crowtail Connectors – Plug-and-play sensor and module connections
- 3.3 V Regulated Supply – Onboard LDO, up to 800 mA
- User I/O – 2 tactile switches, 1 LED, and a sleep wake-up slide switch
- Full GPIO Access – All pins on 2.54 mm female headers
Specifications
- Module: ESP-12E (ESP8266)
- USB-Serial: CP2102
- Power: USB or external 5 V DC
- Regulated Output: 3.3 V (800 mA)
- Breadboard: 180 tie points
Ideal For
- Beginners learning IoT and Wi-Fi programming
- Rapid ESP8266 prototyping
- Grove/Crowtail sensor experiments
Package Contents
- 1× EasyESP-1 Development Board
