Adafruit GPIO Reference Card for Raspberry Pi Pico
100 units available with a short lead time.

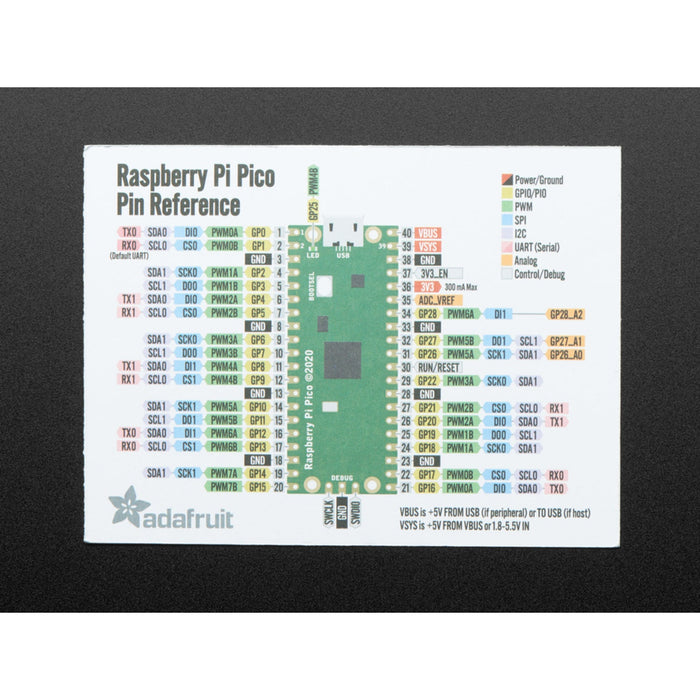

The Adafruit GPIO Reference Card for Raspberry Pi Pico is a pocket-sized, full-colour pinout diagram printed on durable card stock. It provides a quick visual guide to every pin on the Pico, clearly labelling power, PWM, SPI, Serial UART, I²C, and general GPIO functions so you can wire up your projects without guessing.
The back of the card includes a quick-start guide for loading CircuitPython onto your Pico and blinking the on-board LED — everything you need to get started on a convenient 3" × 4" reference card.
Key Features
- Full-Colour Pinout Diagram – All Pico pins labelled by function for quick identification
- Durable Card Stock – Printed on sturdy card for long-lasting bench or pocket use
- CircuitPython Quick-Start Guide – Step-by-step instructions on the back to get started
- Compact Size – 3" × 4" (approximately 76 × 102 mm)
Ideal For
- Quick pin reference while prototyping with Raspberry Pi Pico
- Workshops, classrooms, and maker spaces
- Keeping at your workbench or in your parts kit
Package Contents
- 1× GPIO Reference Card for Raspberry Pi Pico (double-sided)
