45W DC-DC Converter 9V@5A
12 units available with a short lead time.

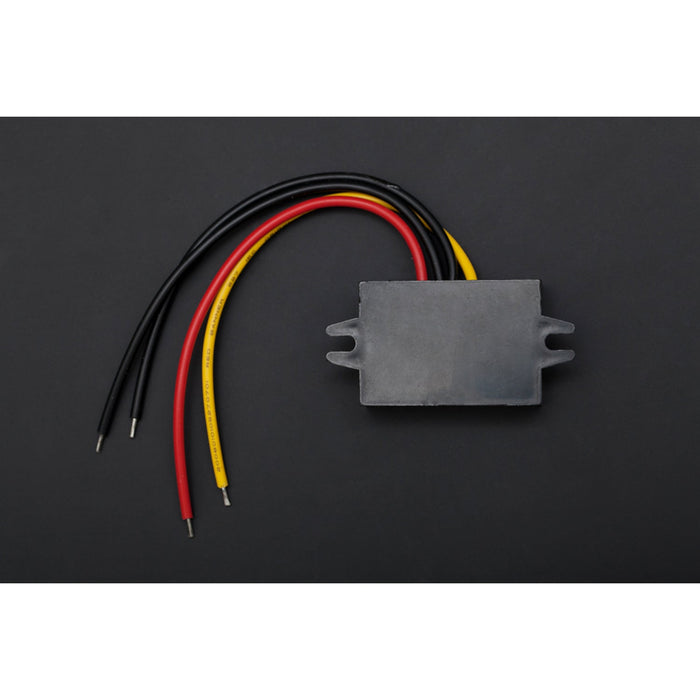

A waterproof DC-DC step-down (buck) converter that accepts 16–36V DC input and outputs a stable 9V at up to 5A (45W). The sealed, shockproof enclosure and 96% efficiency make it well suited for robotics, vehicles, and outdoor installations where reliable voltage regulation is needed.
Key Features
- 45W Output – 9V DC at up to 5A continuous
- Wide Input Range – 16–36V DC (compatible with 4S–8S LiPo, 12V/24V lead-acid)
- 96% Efficiency – Minimal heat generation under load
- Waterproof & Shockproof – Sealed enclosure for harsh environments
- Comprehensive Protection – Overvoltage, overcurrent, overheat, and short-circuit protection
- Compact & Lightweight – 58 × 40.5 × 22 mm, 90 g
Specifications
- Input Voltage: 16–36V DC
- Output Voltage: 9V DC
- Output Current: 5A max
- Output Power: 45W
- Efficiency: 96%
- Max Operating Temperature: 80°C
- Dimensions: 58 × 40.5 × 22 mm
- Weight: 90 g
Ideal For
- Robotics power distribution
- Converting vehicle 12V/24V systems to 9V
- Outdoor and marine electronics
- Battery-powered projects requiring regulated 9V
Package Contents
- 1× 45W DC-DC Converter (FIT0169)
The 45W DC-DC Converter 9V@5A appears in the following collections:
SKU DF-FIT0169
by DFRobot
