1N4148 Signal Diode - 10 pack
We have ✅ 3 available of the AF-1641 in our Sydney warehouse. An extra 100 units available with a short lead time.
A 10-pack of 1N4148 small signal diodes — one of the most commonly used switching diodes in electronics. Designed for fast switching and small signal rectification rather than power applications, with a reverse recovery time of just 4 ns.
Key Features
- Fast Switching – 4 ns reverse recovery time for high-frequency circuits
- Small Signal Use – Rated for 200 mA forward current (not for power rectification)
- 100 V Reverse Voltage – Suitable for most signal-level applications
- ~0.7 V Forward Drop – Standard silicon diode characteristics
Specifications
- Part Number: 1N4148
- Max Forward Current: 200 mA
- Peak Reverse Voltage: 100 V
- Forward Voltage Drop: ~0.7 V (typical)
- Reverse Recovery Time: 4 ns
- Package: DO-35 (axial)
Common Applications
- Signal rectification and clamping
- Logic gate protection
- Switching circuits
- Demodulation and detection
Package Contents

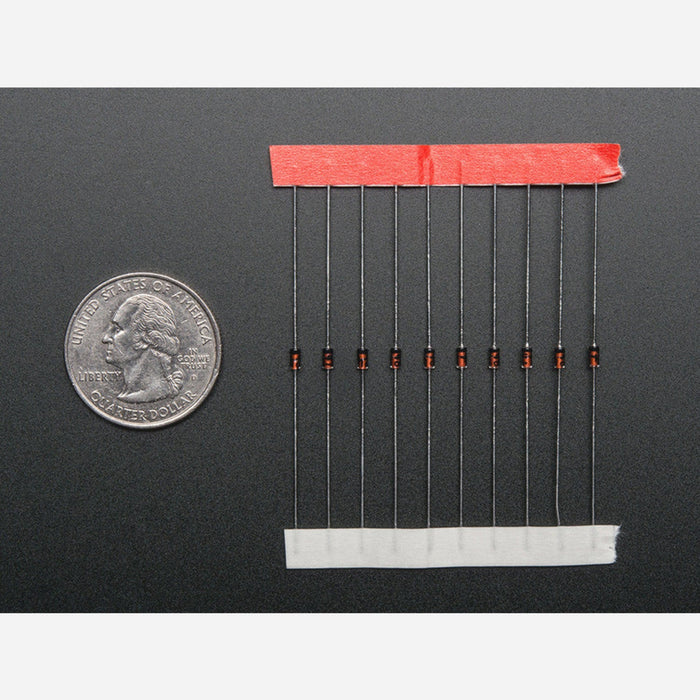

- 10× 1N4148 signal diodes
