Monochrome 0.91”128x32 I2C OLED Display with Chip Pad

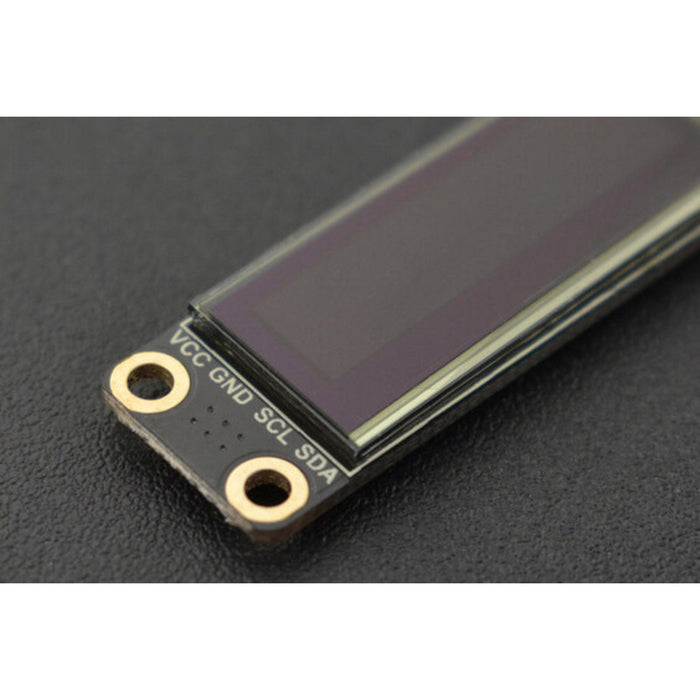

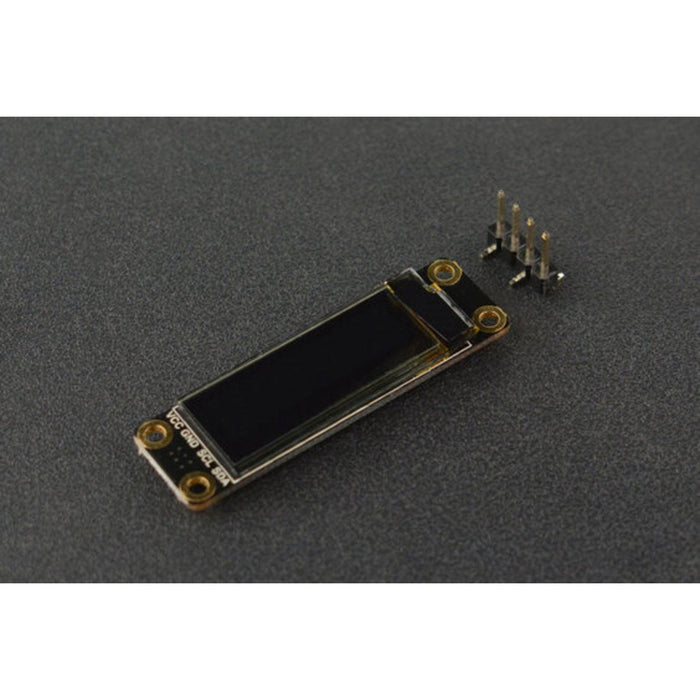

This OLED display module uses the SSD1306 drive chip, has 128x32 self-illuminating white pixels, and adopts the back chip-mounting pad design. Small size, the length is 41mm and the width is only 12mm. With its small size, simple wiring, and low power consumption, it can be applied to many display applications, such as wearable display devices, Mini small game consoles, desktop widgets, etc.

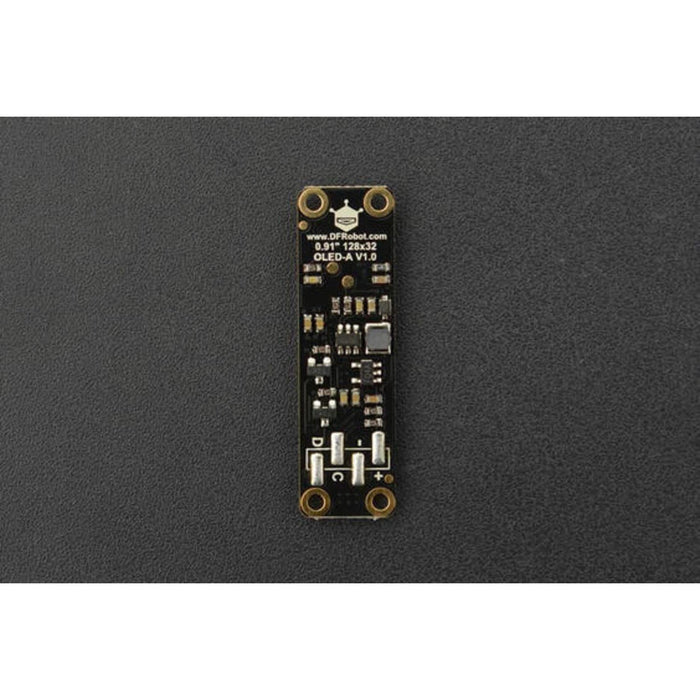

The display module adopts a high-contrast, low-power OLED display. Full-screen lighting consumes approximately 25mA (3.3V) 25mA (5V) and full-screen off power consumption: approx. 2mA (3.3V) 2mA (5V). It is compatible with controllers such as Arduino UNO, Leonardo, ESP32/ESP8266, FireBettle-M0, and so on. Internal power-on reset processing, I2C communication methods and the chip-mounting pad, so that your welding line will be more convenient and simpler. The module has an ultra-narrow PCB design that is more flexible to match more applications.

Note: Turn the pixels off when you are not using the display to prevent the use of some pixels too long to darken them, which will cause the brightness uniformity problem.

FEATURES

• Chip-mounting pad
• Self-illuminating OLED display
• Controllable pixels and low power consumption
• Supports power-on reset

APPLICATIONS

• Thermometer
• Desktop weather display
• Kitchen weighing machine
• Air quality detector
• Mini Game consoles
• Wearable display

SPECIFICATION

• Operating voltage: 3.3V to 5V
• Color: White pixels
• Number of pixels: 128 columns x 32 rows
• Interface: I2C
• Drive chip: SSD1306
• Brightness: 180 (Typ) cd/m2
• Full-screen lighting power: approx. 25mA (3.3V) 25mA (5V)
• Full-screen off power consumption: approx. 2mA (3.3V) 2mA (5V)
• Operating temperature: -30°C to 70°C
• Display area: 22.38 x 5.58 mm / 0.88”x 0.22”
• Mounting hole diameter: 2 mm

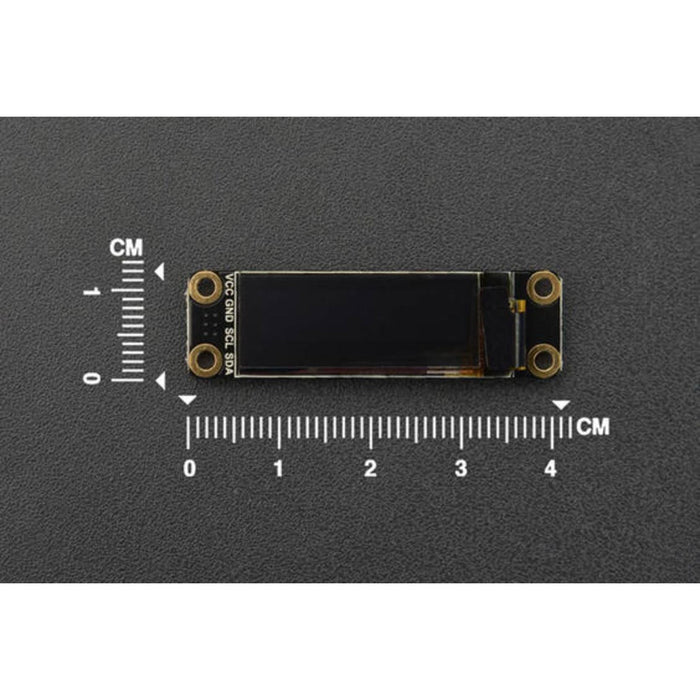

• Size: 41x12 mm / 1.61”x 0.47”
• Weight: 2.2 g

DOCUMENTS

• Product wiki
