5 Inch Display for Raspberry Pi
We have ✅ 2 available of the EC-DIS05490T in our Sydney warehouse. An extra 10 units will be available shortly.
This is a 5-inch HDMI-Compatible capacitive touch monitor with 800*480 resolution.
It has a headphone port and speaker interface, users can choose the appropriate audio output method according to their own needs; it uses a capacitive USB touch screen, and the touch function can be realized by simply powering on the USB touch port. There is no need to install a driver, just plug and play. Very convenient to use.
The four corner holes on the back allow you to mount the monitor to other devices. The back of the monitor is equipped with 4 nut seats for mounting and fixing the Raspberry Pi. Using the HD port to transmit signals, it is compatible with a variety of systems such as Raspbian, Ubantu, Windows, Android, etc.
5-Point Capacitive Touch Screen, Smooth and Accurate.
Feature
Feature
- 5.0 Inch LCD Display with 800*480 resolution and 5 point capacitive touch;
- Build-in speaker and headphone jack;
- Compatible with multiple systems(Raspbian、Ubuntu、Windows、Android、MAC OS andChrome OS);
- Plug and play, no need to install drivers;
- Four nut seats on the back for easy installation of Raspberry Pi.
Specification
Screen Size | 5.0 Inch
Screen Type | TN Panel
Display | TFT-LCD
Resolution | 800 x 480
Brightness | 300cd/m²
Touch Screen Type | 5point Capacitive Touch
Driver IC | ILI6122 & ILI5960
External Power Supply | DC5V-2A
Backlight Switch | Toggle up/down
Interface | Power input & USB touch interface;4P speaker interface ;3.5MM headphone interface
Active Area (W x H) | 108*65mm
Module Size (L x W x H) | 137*80*14 (mm)
Net Weight | 140g
Screen Type | TN Panel
Display | TFT-LCD
Resolution | 800 x 480
Brightness | 300cd/m²
Touch Screen Type | 5point Capacitive Touch
Driver IC | ILI6122 & ILI5960
External Power Supply | DC5V-2A
Backlight Switch | Toggle up/down
Interface | Power input & USB touch interface;4P speaker interface ;3.5MM headphone interface
Active Area (W x H) | 108*65mm
Module Size (L x W x H) | 137*80*14 (mm)
Net Weight | 140g

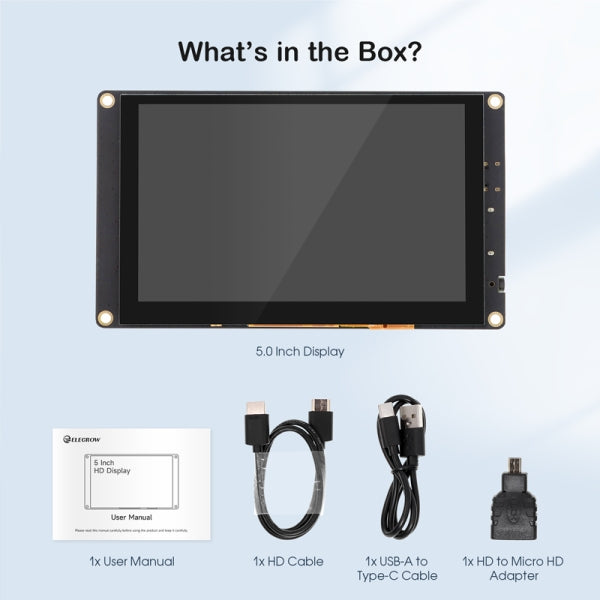

Package List
- 1x 5 Inch Display
- 1x HD Cable
- 1x USB-A to Type-C Cable
- 1x HD to Mini HD Adapter
- 1x User Manual
