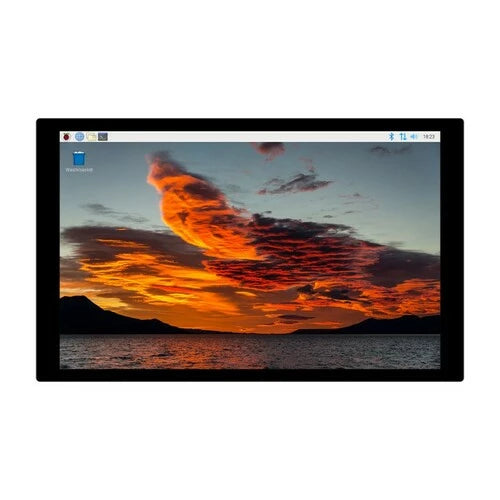

10.1inch Capacitive Touch Display, Optical Bonding Toughened Glass Panel, 1280×800, IPS, HDMI Interface
We have ✅ 5 available of the WS-23739 in our Sydney warehouse. An extra 10 units will be available shortly.
10.1inch Capacitive Touch Display, Optical Bonding Toughened Glass Panel, 1280×800, IPS, HDMI Interface
10.1″ Touch Display
HD Resolution | Multi-Point Touch | Full Color
- Size10.1″
- Resolution1280×800
- Display PortHDMI
- Display PanelIPS
- Viewing Angle178°
- Touch TypeCapacitive
- Touch Points10-Point
- Touch PortUSB Type-C
- Touch PanelToughened Glass
- OSD MenuBrightness/Contrast
- Audio Output13.5mm Jack
- Audio Output24PIN Header
- Touch Panel TechOptical Bonding
Device & System Support
Raspberry Pi
Supports Raspberry Pi OS, 10-point touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free
Supports all versions of Raspberry Pi
Jetson Nano
Supports Ubuntu, single point touch, driver free
PC
Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free
Connection Examples
Working with Raspberry Pi 4B
Working with Raspberry Pi 3B+
Working with Raspberry Pi Zero 2W
* additional mini HMDI adapter and USB cable are requied
Working with Jetson Nano
Working with mini PC
for reference only, the above controller boards or host are not included.
IPS Display Panel
Excellent Display Performance With 178° Wide Viewing Angle
Capacitive 10-Point Touch
- up to 10-point touch, depending on the operating system
- up to 6H hardness toughened glass panel
- Optical Bonding, display well and dustproof
Adjustable brightness via software
Interface Introduction
Product Show
Dimensions
Resources & Services
Support touch screen customization
Support the following ways to customize the touch screen display in bulk order
Over a decade
Waveshare grows with display
Waveshare grows with display
* Waveshare has been focusing on display design for over 10 years.
Have a look :
- 10.1DP-CAPLCD ×1
- HDMI flat cable ~1m ×1
- USB-A to USB-C cable ~1m ×1
- Button board ×1
- Button board cable ×1
- USB to Type-C adapter (B) ×1
- USB to Type-C adapter (C) ×1
- HDMI to Micro HDMI adapter ×1
- HDMI adapter ×1
- Screwspack ×1
