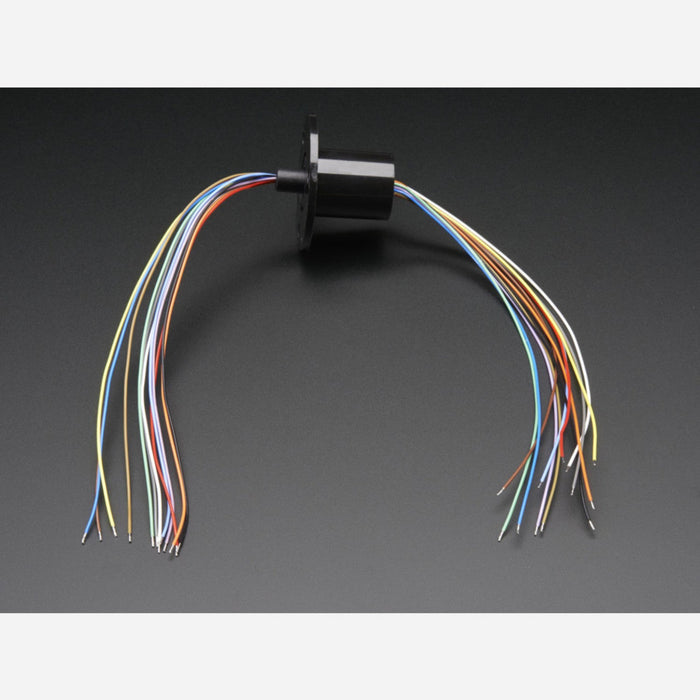

Slip Ring with Flange - 22mm diameter, 12 wires, max 240V @ 2A
We have ✅ 1 available of the AF-1196 in our Sydney warehouse. An extra 69 units available with a short lead time.
A 12-wire slip ring assembly that allows continuous 360° rotation while maintaining electrical continuity. The gold-plated internal contacts ensure reliable signal and power transfer across all 12 colour-coded wire sets, each capable of carrying up to 2A at 240V AC/DC.
The 22mm diameter housing includes a 44mm flange with mounting holes for easy attachment. The flange is ABS plastic and can be cut or machined to suit your project if needed.
Key Features
- 12 Wire Circuits – Colour-coded 28 AWG wire sets for easy identification
- Gold-Plated Contacts – Reliable, low-resistance connections through rotation
- 2A @ 240V Rating – Each circuit handles power or signal independently
- 44mm Mounting Flange – Pre-drilled holes for secure attachment
- 300 RPM Rated – Smooth rotation at rated speed
Specifications
- Circuits – 12 wires
- Wire Gauge – 28 AWG, colour coded
- Current Rating – 2A per circuit
- Voltage Rating – 240V AC/DC
- Housing Diameter – 22mm
- Flange Diameter – 44mm
- Flange Material – ABS plastic
- Max Speed – 300 RPM (rated)
Ideal For
- Rotating LED displays and light rigs
- 360° sensor and encoder assemblies
- Robotics with continuous rotation joints
- Turntables and rotating platforms
Package Contents
- 1× Slip Ring with Flange (22mm, 12 wires)
