Maix Bit AI Development Kit RISC-V K210 IOT
14 units will be available shortly.

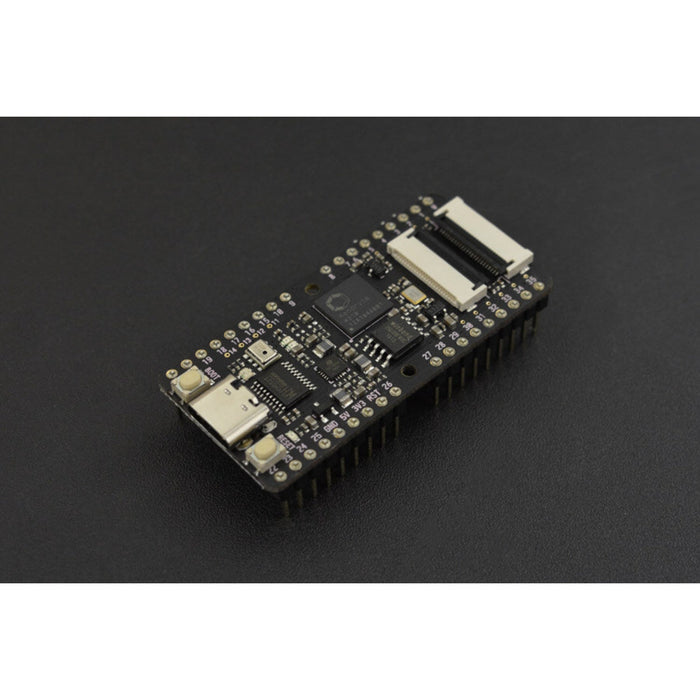

Maix Bit AI development board adopts AI chip K210 of RISC-V kernel. K210 comes with dual-core processor chip with independent FPU, 64 bits CPU bit width, 8 MB on-chip SRAM, 400 adjustable nominal frequency, and double precision FPU supporting multiplication, division, and square root operation.
On the 53.3mm x 25.4mm board, Maix Bit AI development board integrates on-board 128 Mbit high speed and large-capacity Flash, high speed USB to Serial port chip CH552, RGB LED, MEMS microphone, 24pin DVP camera interface, 24 pin 8bit MCU LCD interface. The product features RISC frame, high performance, low price, AI, and MicroPython support.
MaixPy firmware is micropython firmware, which makes it easy for everyone to use AI algorithms and the operation of conventional microcontrollers; MaixPy firmware is compatible with most APIs of OpenMV! Buying the MAIX development board is equivalent to having an OpenMV development board that is three times the price of the MAIX development board! And the measured power of the ordinary algorithm is 2~3 times of the original STM32H7 version! The power of the AI algorithm is even more than 1000 times that of the STM32H7 version of openmv! That's right, it's 1000 times!
The package of the kit includes Maix Bit AI Development board, 2.4”LCD display and M12 camera, default with 4mm focal length HD lens (with 650nm infrared cut filter), users can change the lens by themselves.
FEATURES
- MicroPython support
- Compatible with most OpenMV algorithms
- Support neural network algorithms, encapsulates the nn class of mpy
- Neural network algorithm speed: hundreds of GOPS (thousands of times STM32)
- Face detection speed: conventional algorithms 6 frames
- OVGA, RGB image: AI accelerator can reach more than 60 frames
- Debugging support: UART and JTAG interface
- GPIO interface: all GPIOs are connected to Headers 2.54mm
- DVP connector: 24P FPC connector(compatible with OV2640, OV7740, OV5640, etc.)
- LCD connector: 8 bit MCU LCD 24P 0.5mm FPC connector
- On-board MEMS microphone
- On-board TF card slot
- Main-controller chip: K210
- Chip core: dual-core RISC-V 64bit IMAFDC
- Main frequency: nominal 400M, can be overclocked to 600M
- Memory: 6MB general memory+2MB AI memory
- Flash: 16MB
SPECIFICATION
- Dimension: 53.3x 25.4mm/2.101”
- Input Voltage: 4.8~5.2 V
- Input Current: >600mA
- Temperature Rise: <30 K
- Operating Temperature: -30~85 ºC
- M12 Camera: 4mm focal length HD lens(with 650nm infrared cut filter)
- 2.4” LCD Display
