Super Capacitor - 10F/2.5V
178 units available with a short lead time.

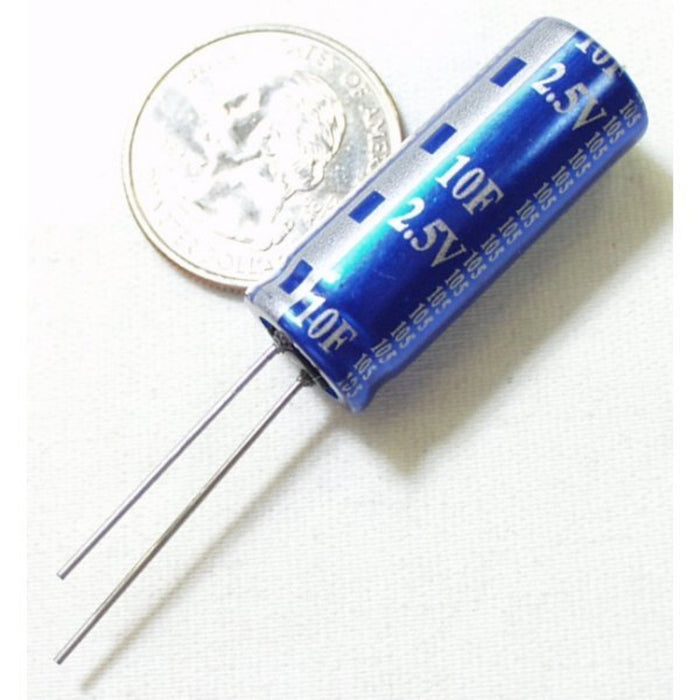

A 10 F (farad) supercapacitor rated at 2.5 V. This compact energy storage device can be charged and slowly discharged to power low-current systems for extended periods. Two can be connected in series for 5 F at 5 V.
Key Features
- 10 F Capacitance – High energy storage in a compact package
- 2.5 V Rating – Two in series for 5 F / 5 V operation
- Slow Discharge – Suitable for backup power and energy harvesting applications
- Compact Size – 13 × 33.5 mm cylindrical package
Specifications
- Capacitance – 10 F
- Voltage Rating – 2.5 V (do not exceed)
- Dimensions – 13 × 33.5 mm (diameter × height)
- Polarity – Polarised (observe correct orientation)
Warning: Do not exceed the rated voltage or reverse the polarity. Doing so may damage the capacitor.
Ideal For
- Backup power for RTC and memory retention
- Energy harvesting and solar projects
- Low-power system buffering
- Experimentation with high-capacitance energy storage
Package Contents
- 1× Super Capacitor (10 F / 2.5 V)
Resources
The Super Capacitor - 10F/2.5V appears in the following collections:
SKU SF-COM-00746
by SparkFun
