5MP Night Vision Camera for Raspberry Pi
5 units available with a short lead time.

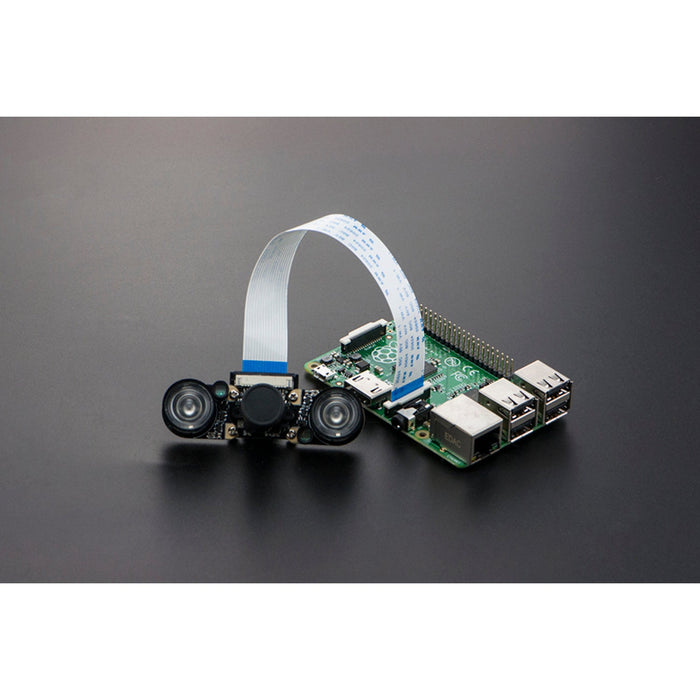

A 5-megapixel night vision camera module for Raspberry Pi, complete with two infrared LED boards for clear imaging in low-light and dark environments. Based on the OmniVision OV5647 sensor, it connects directly to the Raspberry Pi's CSI camera port and features an adjustable focus ring for fine-tuning image sharpness at different distances.
The included IR LED boards use photoresistors to detect ambient light levels and automatically switch the infrared illumination on or off, so the camera adapts seamlessly between day and night conditions.
Key Features
- Infrared Night Vision – Two 850 nm IR LED boards for clear imaging in complete darkness
- Automatic IR Switching – Photoresistors detect ambient light and toggle IR illumination automatically
- Adjustable Focus – Manual focus ring for sharp images at varying distances
- 5 MP OV5647 Sensor – Up to 1080p video and 2592 × 1944 stills
- CSI Interface – Connects directly via 15-pin ribbon cable
- Mounting Holes – Four screw holes for secure, fixed-position mounting
Specifications
- Sensor – OmniVision OV5647 (5 MP)
- CCD Size – 1/4"
- Aperture – f/1.8
- Focal Length – 3.6 mm (adjustable)
- Field of View – 75.7° diagonal
- Best Video Resolution – 1080p
- IR LED Wavelength – 850 nm
- Power – 3.3 V external supply for IR LEDs
- Dimensions – 25 × 24 mm
Ideal For
- Security and surveillance cameras
- Wildlife monitoring (day and night)
- Baby monitors and pet cameras
- Raspberry Pi computer vision projects requiring low-light capability
Package Contents
- 1× 5 MP Night Vision Camera Module
- 2× Infrared LED Board
- 1× 15-pin FFC ribbon cable
