SparkFun XBee Explorer USB
We have ✅ 1 available of the SF-WRL-11812 in our Sydney warehouse. An extra 257 units will be available shortly.

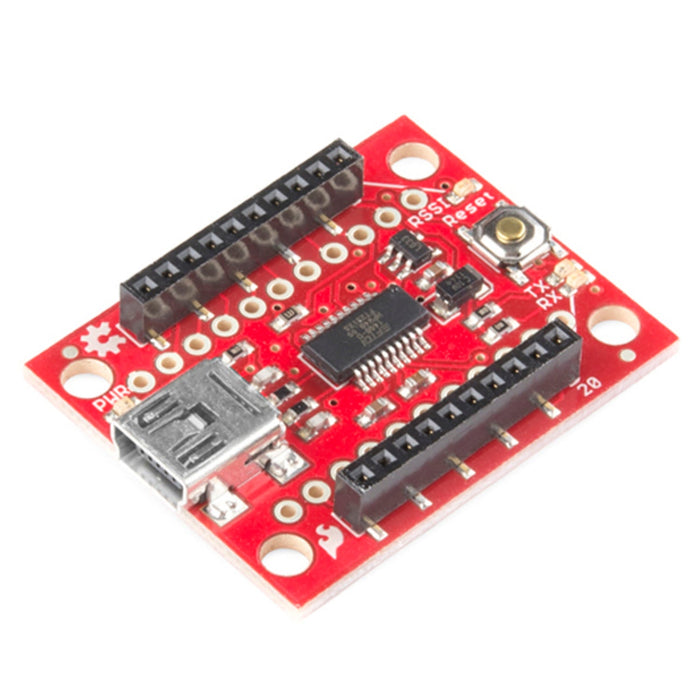

This is a simple to use, USB to serial base unit for the Digi XBee line. This unit works with all XBee modules including the Series 1 and Series 2.5, standard and Pro version. Plug the unit into the XBee Explorer, attach a mini USB cable, and you will have direct access to the serial and programming pins on the XBee unit.
The highlight of this board is an FT231X USB-to-Serial converter. That’s what translates data between your computer and the XBee. There’s also a reset button, and a voltage regulator to supply the XBee with plenty of power. In addition, there are four LEDs that’ll help if you ever need to debug your XBee: RX, TX, RSSI (signal-strength indicator), and power indicator.
This board also breaks out each of the XBee’s I/O pins to a pair of breadboard-compatible headers. So if you want to make use of the XBee’s extended functionality, you can solder some header pins into those, or even just solder some wire.
Note: There is no XBee included with this Explorer USB. Check the Recommended Products section below for different options.
Documents:
The SparkFun XBee Explorer USB appears in the following collections:
SKU SF-WRL-11812
