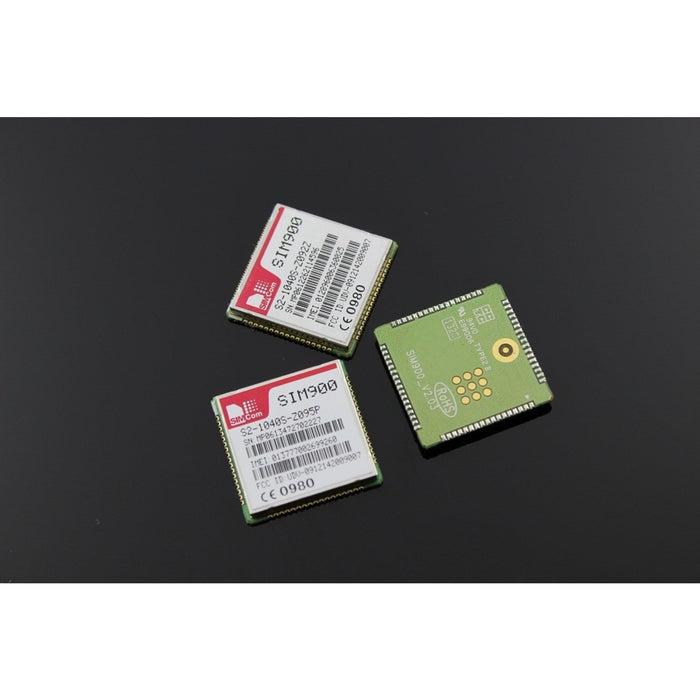

SIM900 Module - 4 Frequency

SIM900 Module - 4 Frequency

100 units available with a short lead time.

Express post shipping available (product has a short lead time)

The SIM900 is an ultra-compact and reliable quad-band GSM/GPRS module in an SMT package. Built around a powerful single-chip processor with an ARM926EJ-S core, it delivers voice, SMS, data, and fax capabilities in a tiny 24 × 24 × 3 mm form factor weighing just 3.4 g.

Operating across the 850/900/1800/1900 MHz bands, the SIM900 is ideal for M2M applications where space and power efficiency are critical. It supports embedded TCP/UDP, FTP/HTTP, MMS, and multiplexing protocols, and is controlled via standard AT commands.

Key Features

  • Quad-Band GSM/GPRS – 850/900/1800/1900 MHz coverage
  • Ultra-Compact Size – Just 24 × 24 × 3 mm and 3.4 g
  • Low Power Consumption – 1.5 mA in sleep mode
  • Wide Supply Voltage – 3.1 V to 4.8 V input range
  • Extended Temperature Range – Operates from −40 °C to +85 °C
  • AT Command Control – GSM 07.07, 07.05, and SIMCom enhanced AT commands
  • SIM Application Toolkit – Supports 3 V and 1.8 V SIM cards
  • Embedded Networking – TCP/UDP, FTP, HTTP, and MMS protocols built in
  • GPRS Class 10 – Up to 85.6 kbps downlink with coding schemes CS 1–4
  • Voice Support – Half rate, full rate, enhanced full rate, and AMR codecs with echo suppression

Interfaces

  • Serial Interface – Primary communication with host MCU
  • SPI – Optional serial peripheral interface
  • I2C, GPIO, PWM, ADC – Flexible peripheral connectivity
  • Analog Audio – For voice applications and hands-free operation
  • Antenna Pad – External antenna connection
  • RTC Backup – Real-time clock with battery backup support

Data & SMS Specifications

  • GPRS multi-slot class 10/8, mobile station class B
  • CSD up to 14.4 kbps, USSD, non-transparent mode, PPP stack
  • PBCCH support
  • SMS point-to-point (MO/MT) and cell broadcast
  • Text and PDU mode
  • Fax Group 3, Class 1

GSM Power Class

  • Class 4 – 2 W at 850/900 MHz
  • Class 1 – 1 W at 1800/1900 MHz

Certifications

  • CE, FCC, ROHS, PTCRB, GCF, IC, ICASA, TA, REACH, AT&T

Ideal For

  • IoT and M2M communication projects
  • Remote monitoring and telemetry systems
  • GPS tracking devices with cellular connectivity
  • SMS-based alert and notification systems
  • Embedded systems requiring voice or data over GSM

Package Contents

  • 1× SIM900 GSM/GPRS Module (SMT)

The SIM900 Module - 4 Frequency appears in the following collections:

SKU EC-WGS49001G
