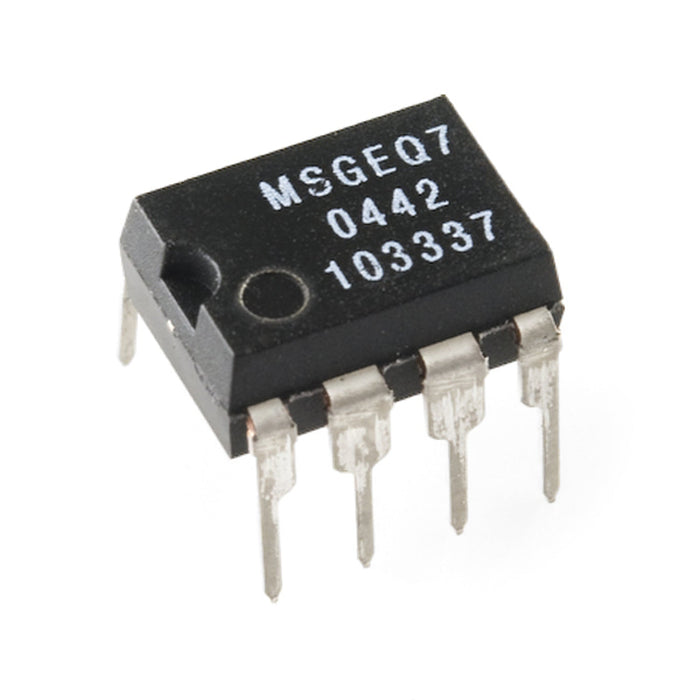

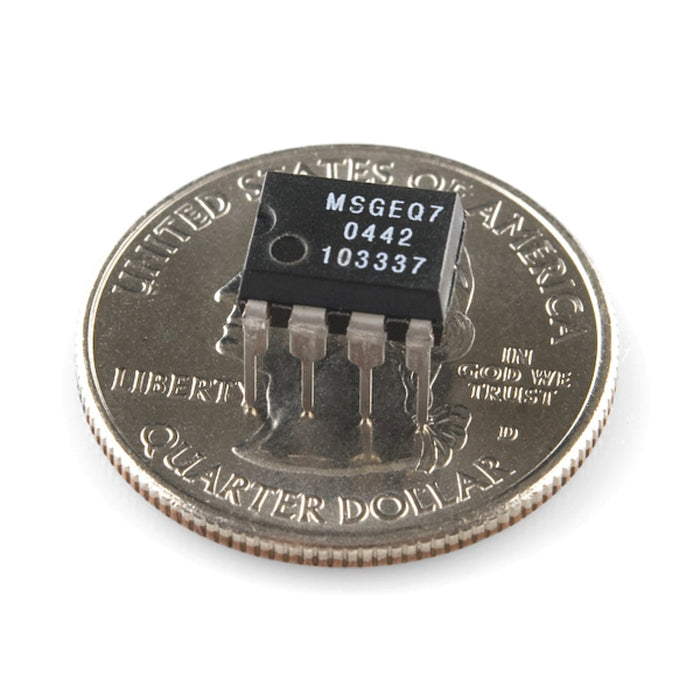

Graphic Equalizer Display Filter - MSGEQ7
We have ✅ 2 available of the SF-COM-10468 in our Sydney warehouse. An extra 392 units available with a short lead time.
The MSGEQ7 is a CMOS graphic equaliser IC that divides the audio spectrum into seven frequency bands: 63 Hz, 160 Hz, 400 Hz, 1 kHz, 2.5 kHz, 6.25 kHz, and 16 kHz. Each band is peak-detected and multiplexed to provide a DC output representing the amplitude — ideal for driving LED audio visualisers and spectrum analysers.
Requires only two external components (one resistor and one capacitor) to set the on-chip clock oscillator. The multiplexer is controlled via reset and strobe pins, allowing readout with just two I/O pins from your microcontroller.
Key Features
- 7-Band Frequency Analysis – 63 Hz, 160 Hz, 400 Hz, 1 kHz, 2.5 kHz, 6.25 kHz, 16 kHz
- Minimal External Components – Only one resistor and one capacitor needed
- 3.3V or 5V Operation – Supply range of 2.7–5.5V (best performance at 5V)
- 20 dB Gain – Built-in signal amplification
- Low Power – Less than 1 mA typical quiescent current
- 2-Pin Multiplexer Control – Reset and strobe pins for simple readout
- Variable Decay Time – Controlled by multiplexer readout rate (10% decay per read)
- 8-Pin DIP Package – Breadboard-friendly form factor
Specifications
- IC – MSGEQ7
- Technology – CMOS switched-capacitor filters
- Supply Voltage – 2.7–5.5V
- Quiescent Current – <1 mA typical

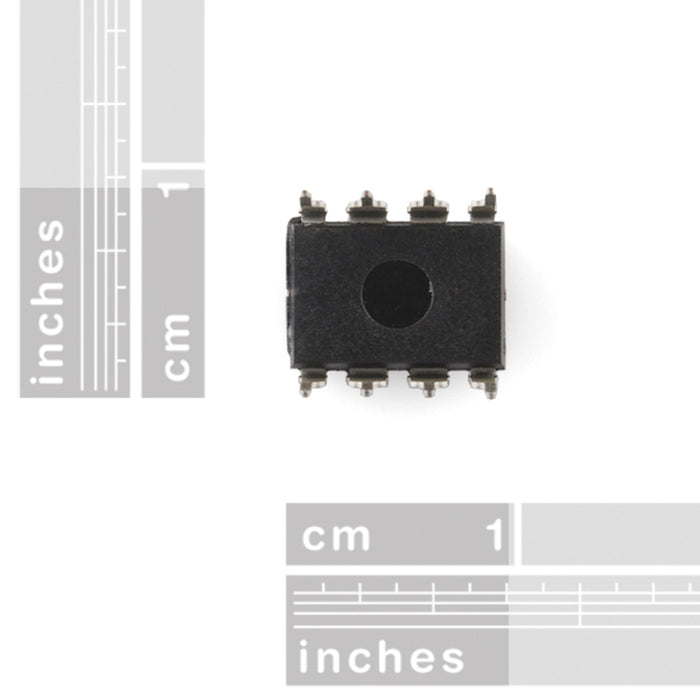

- Package – 8-pin DIP
Ideal For
- LED audio spectrum visualisers
- Music-reactive lighting projects
- Portable audio equipment
- Arduino and microcontroller audio analysis
