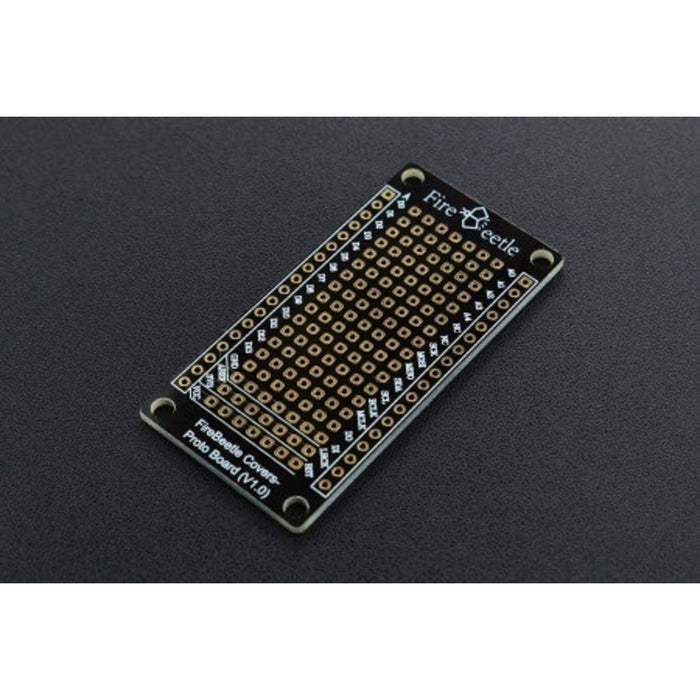

FireBeetle Covers Prototype Board
We have ✅ 1 available of the DF-DFR0481 in our Sydney warehouse. An extra 311 units will be available shortly.
DFRobot FireBeetle series is the low-power consumption micro-controller intentionally designed for Internet of Things (IoT). The series micro-controllers aims at IoT node of low-power consumption, attending to build the IoT hardware platform quickly and conveniently. There are three types of FireBeetle, containing Boards (main control), Covers (expansion boards) and related Accessories. Proto Board is compatible with products of FireBeetle series. There are 14x7 general 2.54mm solder holes in the board of standard spacing. The prototyping boards connect to one master board with VCC, 3.3V and GND soldering pads. These features of Proto Board contribute to it an ideal vehicle for soldering any electronic component. Moreover, the ports compatible with other projects of FireBeetle makes it the best choice for overlay circuit prototypes.
FireBeetle Connection FEATURES
SPECIFICATIONS
DOCUMENTS
SHIPPING LIST
FireBeetle Covers-Proto Board x1 18 pin-2.54mm pin x4 18 pin-2.54mm long pin header x4
