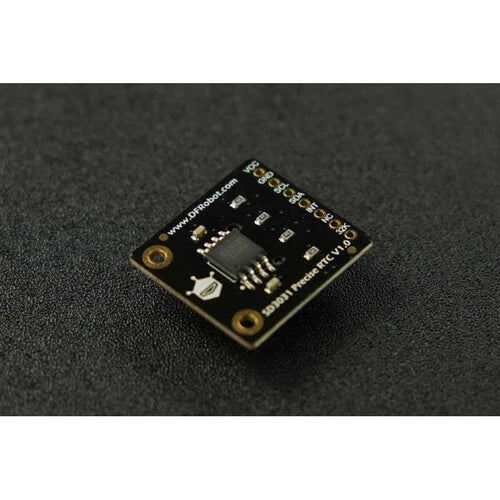

Fermion: SD3031 Precision RTC Module for Arduino (Breakout)

Fermion: SD3031 Precision RTC Module for Arduino (Breakout)

93 units will be available shortly.

Express post shipping available (product is on backorder)

This real-time clock (RTC) module uses the SD3031 chip, which has an integrated crystal oscillator and temperature compensator. This provides high-precision timing and stability. At a temperature of 25 °C, the accuracy is maintained at ±3.8ppm (±0.32832 seconds/day).

The SD3031 can be powered by button-cell batteries. This allows for accurate timing even when the main power source is interrupted. The RTC keeps track of seconds, minutes, hours, days of the week, dates of the month, and months and years. It also automatically adjusts the date at the end of each month and includes leap year corrections. The SD3031 has a built-in 70-byte SRAM for low-power data storage.

Please note that due to recent air cargo regulations, special items such as batteries, magnets, and liquids are strictly audited for air transport. As a result, the RTC module does not come with batteries. You will need to purchase them locally. The button cell model that is compatible with this module is the CR1220.

Wiring diagram


RTC Module Selection Guide

Product Name Fermion: DS3231M MEMS Precise RTC Module Fermion: DS3231 Precise RTC Module
Fermion: DS3232  Precision RTC Module
  Fermion: SD3031 RTC Module
SKU DFR0641 DFR0819 DFR0821 DFR0998
Storage None None 236Byte 70Byte
Integrated Resonator MEMS XTAL XTAL XTAL
Timing Current 2000nA 840nA 1500nA 1800nA
Timing Precision ±5ppm (±0.432s/d) ±3.5ppm (±0.3024s/d) ±3.5ppm (±0.3024s/d) ±3.8ppm (0.32832s/d) @ 25°C
Operating Voltage 3.3V-5.5V 3.3V-5.5V 3.3V-5.5V 3.3V
Operating Temperature -45°C to 85°C -40°C to 85°C -40°C to 85°C -10°C to 70°C
Introduction A real-time clock (RTC) module with integrated MEMS resonator, reducing the risk of mechanical failure, suitable for scenarios with strong and frequent vibration. A real-time clock (RTC) module with integrated crystal oscillator, featuring higher precision and lower power consumption, suitable for scenarios requiring high precision and low power. A real-time clock (RTC) module with integrated crystal oscillator, featuring built-in 236Byte SRAM storage, capable of storing data with ultra-low power consumption, suitable for low-power loT applications requiring real-time clock. A cost-effective RTC module with integrated crystal oscillator, featuring built-in 70Byte SRAM storage, capable of storing data with ultra-low power consumption, suitable for low-power loT applications requiring real-time clock.


Features
  • Low power consumption, operating current of only 1.8µA when powered by button cell battery
  • High precision, ±3.8ppm@25°C
  • Integrated temperature compensator, small temperature drift
  • Readable button cell voltage
  • Built-in 70Byte SRAM

    • Applications
  • Event Reminder
  • Countdown Devices
  • MCU External Wake-up Source
  • Clock & Alarm Output
  • IoT Data Collection & Storage

    • Specification
  • Supply Voltage: 3.3V
  • I2C Address: 0x32
  • SRAM: 70 Byte (0x2C-0x71)
  • Timing Year Range: 2000 - 2099
  • Operating Temperature: -10°C to +70°C
  • Timing Accuracy: ±3.8ppm @ 25°C
  • Dimension: 22.5x21mm/0.89x0.83"

    • Documents
  • Product wiki
  • Schematics

    • Shipping List
  • Fermion: SD3031 RTC module (Breakout) × 1
  • 2.54-7P Black Single-row Pin Connector × 1
