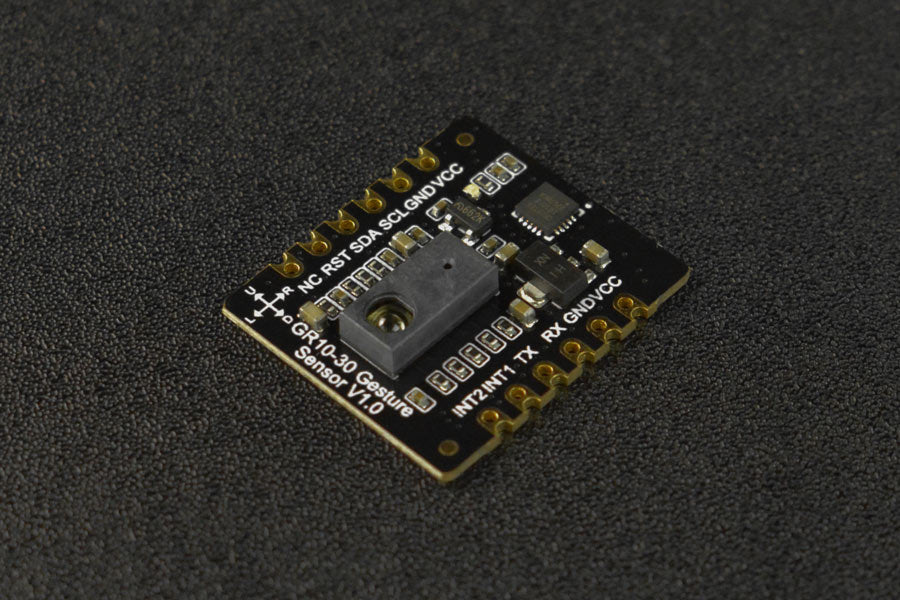

Fermion: GR10-30 Gesture Sensor (Breakout, UART & I2C, 12 Gestures, 0~30cm)
We have ✅ 5 available of the DF-SEN0543 in our Sydney warehouse. An extra 223 units will be available shortly.
This GR10-30 gesture sensor is capable of recognizing 12 hand gestures: move up, down, left, right, forward & backward, rotate clockwise & counterclockwise, rotate clockwise & counterclockwise continuously, hover, and wave. And users can set parameters such as the gesture trigger distance, the hand rotation angle and hovering time that can be recognized, and the size of the recognition window to get more accurate results.
The GR10-30 features stable performance and high accuracy within a sensing distance of up to 30cm. Meanwhile, it provides two interrupt pins for indicating if a gesture trigger occurs and if an object enters the recognition range.
Most gesture recognition sensors use the PAJ7620U2 chip, which has a recognition distance of 20cm and supports 9 types of hand gestures (compared to GR10-30, it lacks three gestures: clockwise and counterclockwise continuous rotation, and hovering).
The sensor is well suited to non-contact operation applications like gesture remote controllers, robot interaction, human-machine interface control, lighting control, and gesture game machine.
Connection Diagram
Features
Maximum recognition distance of 30cm
Capable of recognizing 12 gestures
Configurable recognition threshold & other parameters
Support UART & I2C communication
Applications
Gesture Remote Controller
Robot Interaction
Human-machine Interface Control
Specification
Supply Voltage: 3.3V to 5V
Operating Current: <10mA
I2C Address: 0x73
Serial Baud Rate: 9600
Maximum Recognition Distance: 30cm
Operating Temperature: 0°C to 70°C
Operating Humidity: 5%RH to 85%RH
Dimension: 20.5×23.5mm/0.81×0.93”
Documents
Shipping List
Fermion: GR10-30 Gesture Sensor × 1
2.54-6P Black Single-row Pin Connector × 2
