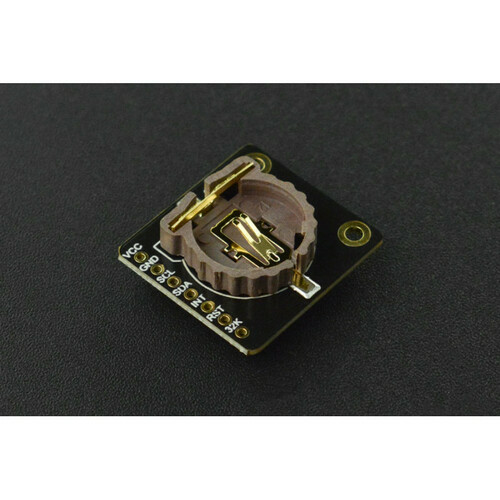

Fermion: DS3232 Precise RTC (Breakout)
131 units will be available shortly.
This real-time clock module (RTC) uses the DS3232 chip that integrates a crystal resonator and a temperature compensator, which improves the long-term accuracy of the module. In the range of -40°C to +85°C, the accuracy of DS3231 remains at ±3.5ppm (±0.3024 seconds/day).
The DS3232 integrates 236Byte SRAM storage that can store data with extremely low power consumption, and it also can be used in scenarios such as low power consumption collection of the Internet of Things.
The device incorporates a battery input and maintains high precision timing when the main power to the device is interrupted. The RTC provides information of seconds, minutes, hours, week, day, month, and year, and it can automatically adjust the date at the end of the month, including corrections for leap year. The clock operates in either the 24-hour or 12-hour format with AM/PM indicator. Two programmable time-of-day alarms and a programmable square-wave output are provided. In addition, the RST pin can be used as a push-button input for microprocessor reset.
Note: Due to the latest air cargo regulations, the transport audit of special items such as batteries, magnets, and liquids will become very strict, so the RTC module does not come with batteries anymore, please purchase them locally. The button cell model that goes with the module is CR1220.
Connection Diagram
Board Overview
DS323X Selection Guide
| Product Name | Fermion: DS3231M MEMS Precise RTC Module | Fermion: DS3231 Precision RTC Module | Fermion: DS3232 Precision RTC Module |
| SKU | DFR0641 | DFR0819 | DFR0821 |
| Storage | None | None | 236Byte |
| Integrated Resonator | MEMS | XTAL | XTAL |
| Timing Current | 2000nA | 840nA | 1500nA |
| Timing Precision | ±5ppm (±0.432s/d) | ±3.5ppm (±0.3024s/d) | ±3.5ppm (±0.3024s/d) |
| Operating Voltage | 3.3V-5.5V | 3.3V-5.5V | 3.3V-5.5V |
| Operating Temperature | -45°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Introduction | Integrated MEMS resonatr, reducing the risk of mechanical failure, suitable for use in strong and frequent vibration. | A RTC module with integrated crystal resonator, featuring a higher precision and a lower power consumption, suitable for use in the occasion in demand of high precision and low power. | A RTC module with integrated crystal resonator, equipped with 236Byte SRAM storage inside, enabling it to store data at an extremely low power consumption, suitable for low-power loT applications requiring real-time clock. |
Features
Applications
Specification
Documents
Shipping List
