BeaglePlay

BeaglePlay

72 units will be available shortly.

Express post shipping available (product is on backorder)

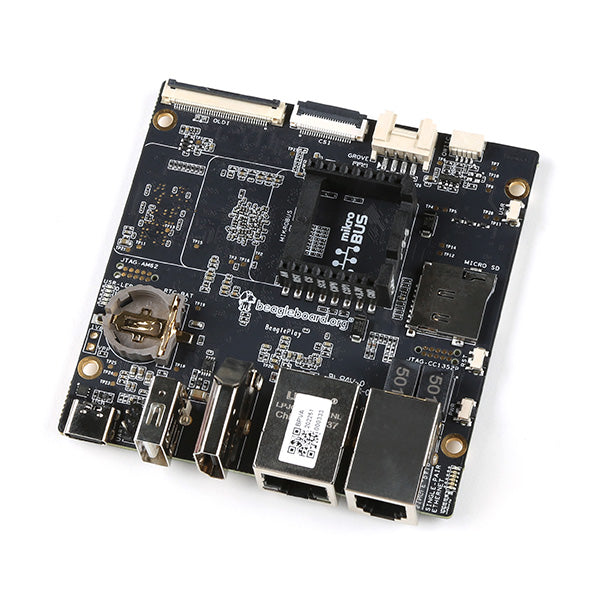

BeaglePlay is an open-source single board computer designed to simplify the process of adding sensors, actuators, indicators, human interfaces, and connectivity to a reliable embedded system. It features a powerful 64-bit, quad-core processor and innovative connectivity options, including WiFi, Gigabit Ethernet, sub-GHz wireless, and single-pair Ethernet with power-over-data-line. With compatibility with 1,000s of off-the-shelf add-ons and a customized Debian Linux image, BeaglePlay makes expansion and customization easy. It also includes ribbon-cable connections for cameras and touch-screen displays, and a socket for a battery-backed real-time-clock, making it ideal for human-machine interface designs.
BeaglePlay is built around Texas Instruments AM62x Sitara™ Processors which is a Quad-Core Arm® Cortex®-A53 Human-machine-interaction SoC. It comes with 2GB DDR4 RAM, 16GB eMMC storage, Full size HDMI, USB-A host port, USB-C power & connectivity port, serial debug interface, and much more.
Features:
  • Processor: TI AM6254 (multicore A53s with R5, M4s and PRUs)
  • PMIC: TPS6521901
  • Memory: 2GB DDR4
  • Storage: 16GB eMMC
  • WiFi:
    • PHY: WL1807MOD (roadmap to next-gen TI CC33XX WiFi 6 & BLE)
    • Antennas: 2.4GHz & 5GHz
  • BLE/SubG:
    • CC1352P7 M4+M0 with BeagleConnect firmware
    • BeagleConnect Wireless enabled
    • Antennas: 2.4GHz & SubG IEEE802.15.4 software defined radio (SDR)
  • Ethernet:
    • PHY: Realtek RTL8211F-VD-CG Gigabit Ethernet phy
    • Connector: integrated magnetics RJ-45
  • Single-pair Ethernet:
    • BeagleConnect Wired enabled
    • PHY: DP83TD510E 10Mbit 10BASE-T1L single-pair Ethernet phy
    • Connector: RJ-11 jack
    • Power (PoDL): Input: N/A (protection to 12V), Output: 5V @ 250mA
  • USB type-C:
    • PD/CC: None, HS shorted to both sides
    • Power: Input: 5V @ 3A, Output: N/A (USB-C DRP Not supported)
  • HDMI:
    • Transmitter: IT66121
    • Connector: full-size
  • Other Connectors:
    • microSD
    • USB 2.0 type-A (480Mbit)
    • mikroBUS connector (I2C/UART/SPI/MCAN/MCASP/PWM/GPIO)
    • Grove connector (I2C/UART/ADC/PWM/GPIO)
    • QWIIC connector (I2C)
    • CSI connector compatible with BeagleBone AI-64, Raspberry Pi Zero / CM4 (22-pin)
    • OLDI connector (40-pin)
Documents:

The BeaglePlay appears in the following collections:

SKU SF-DEV-22659
by Little Bird
