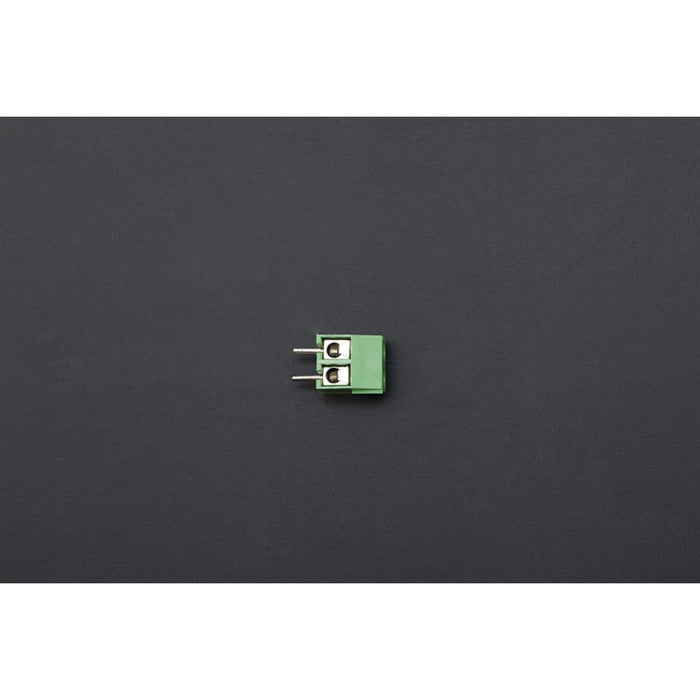

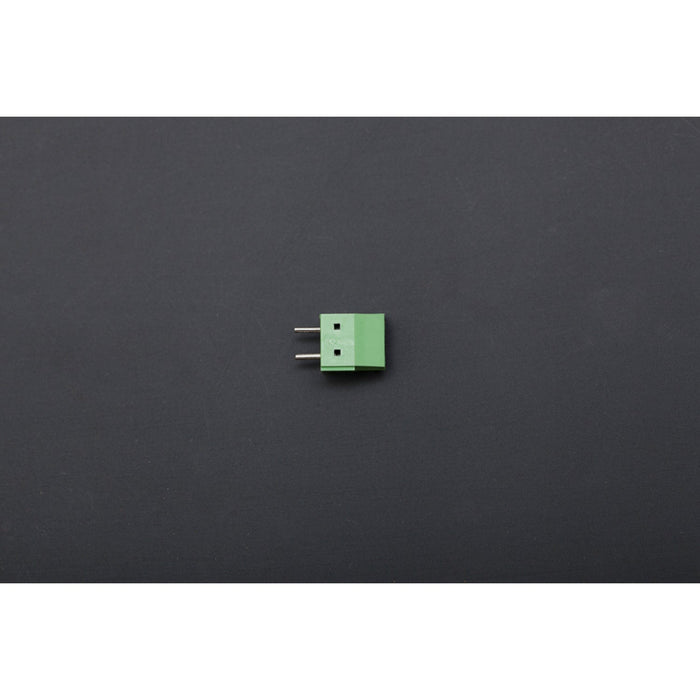

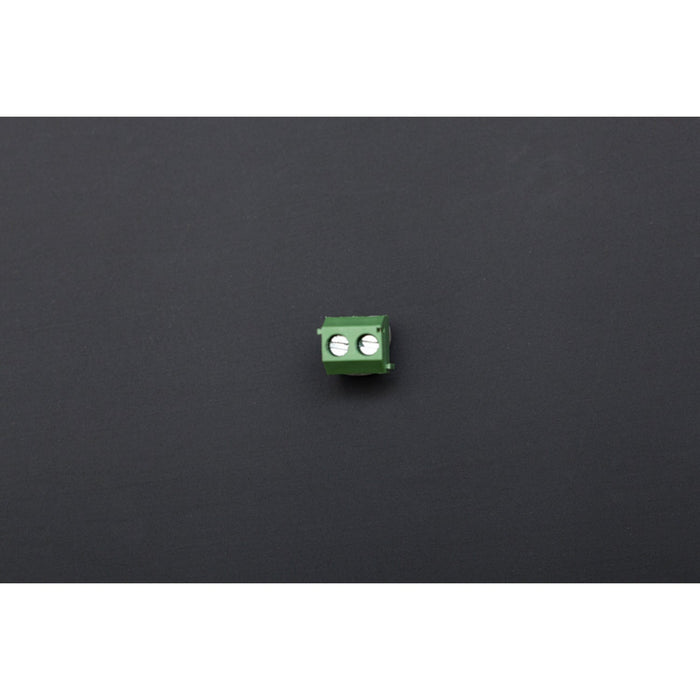

Screw Terminal 3.5mm Pitch(2-Pin)
100 units available with a short lead time.
This is a high quality 2-pin screw terminal. Very useful when you want to connect 24-18AWG wires to your circuits.
SPECIFICATIONS
- Rated voltage: 300V
- Rated current: 10A
- Contact resistence: 20mΩ
- Insulation resistence: 5000Ω/1000V
- Voltage tolernce: AC2000V/1Min
- Wire diameter:24-18AWG
- Tempearture range: -30°C+120°C
- Instant temperature: +250°C 5Min
- Torque 0.2Nm (1.7lb.in)
- Strip length: 4.5-5mm(0.18"-0.2")
DOCUMENTS
SHIPPING LIST
- Screw Terminals 3.5mm(0.14") Pitch (2-Pin) x1
The Screw Terminal 3.5mm Pitch(2-Pin) appears in the following collections:
SKU DF-FIT0181
