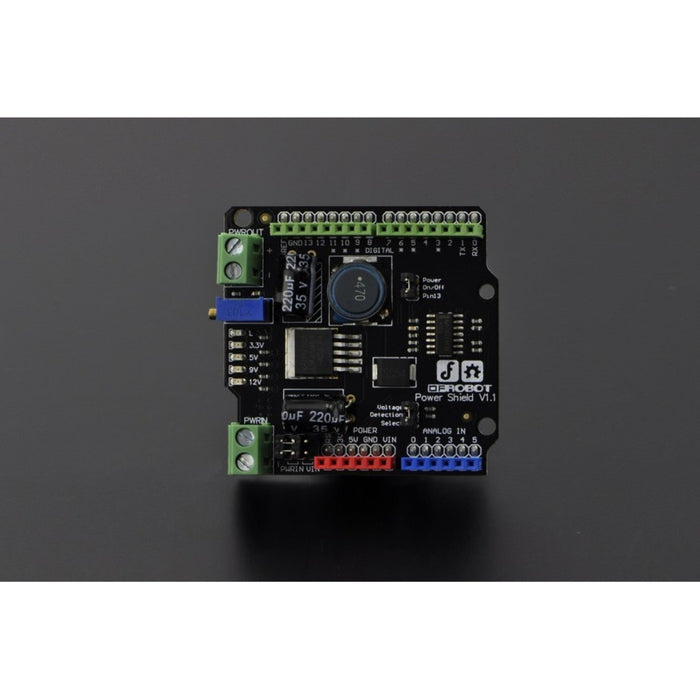

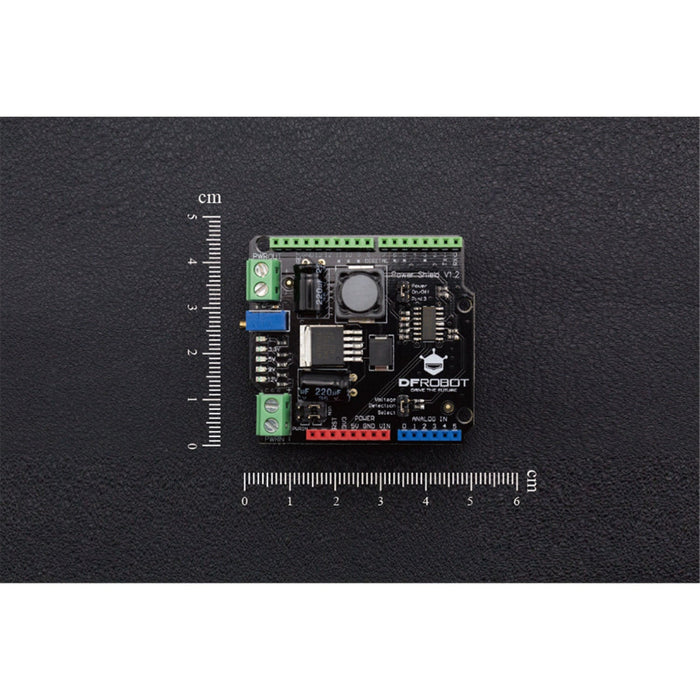

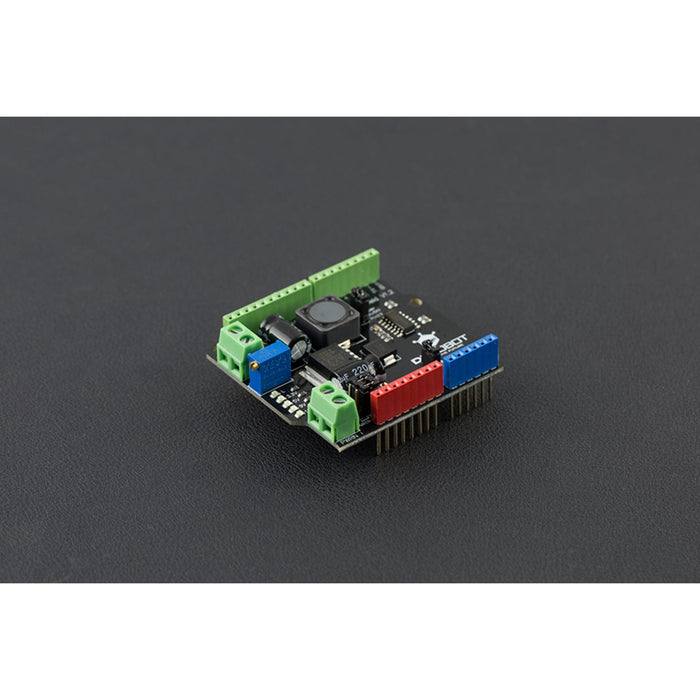

Power supply Shield (Arduino Compatible)
90 units available with a short lead time.
Most project of Arduino may need more than two voltage supply. When feed with from 4.5-35V, this arduino power shield able to provide a voltage range from 1.25-12V with 3A peak current. Ideal for servo control and other non-standard components. With this arduino power supply shield, your Arduino now have one power supply for all.

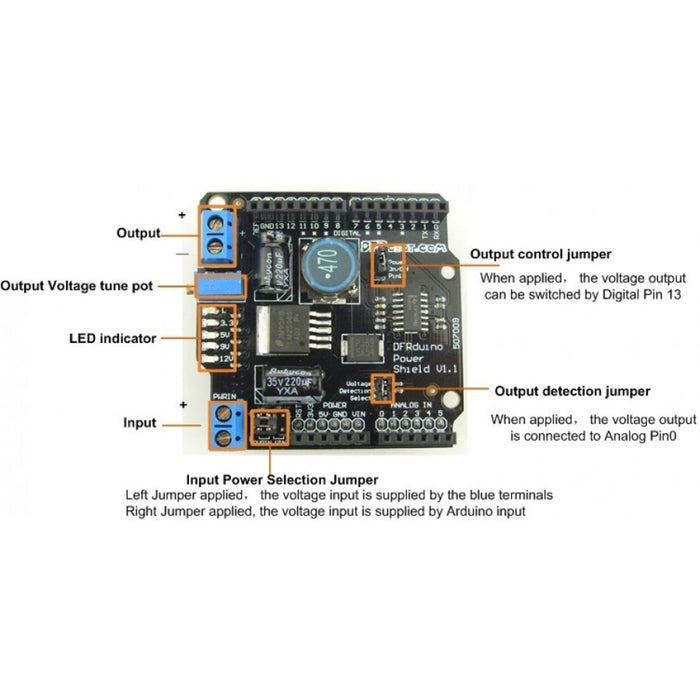

It has be build-in voltage measuring function which mapping the output voltage to Arduino analog pin 0. It can be controlled by Arduino digital Pin13 to switch on/off.
SPECIFICATIONS
- Supply voltage:4.5-35V
- Output voltage:1.25-12V
- Output current: 2A (3A peak)
- Max output power: 15W 3A@5V
- Efficiency:90%
DOCUMENTS
SHIPPING LIST
- Power Shield x1
The Power supply Shield (Arduino Compatible) appears in the following collections:
SKU DF-DFR0105
