LED RGB Strip - Addressable, 1m (APA102)
8 units available with a short lead time.

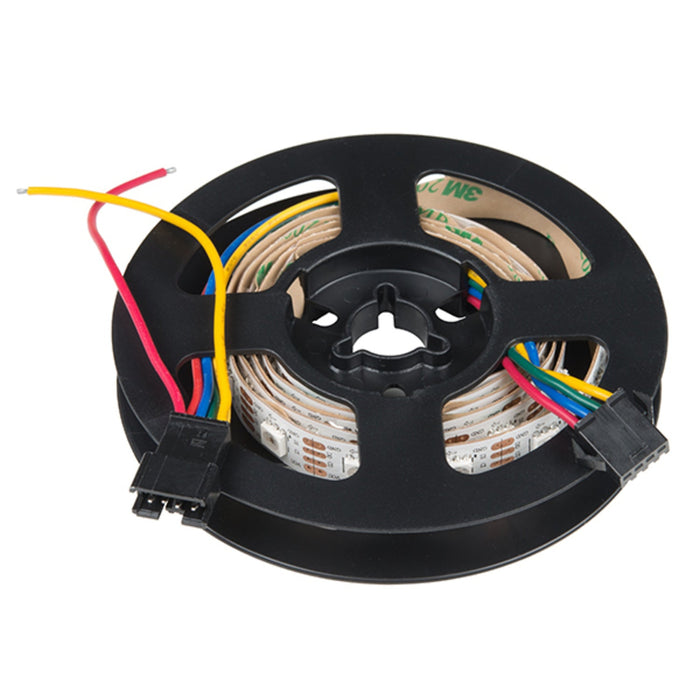

A 1 m addressable RGB LED strip packed with 60 APA102C LEDs. Unlike WS2812-based strips, APA102s are controlled via a standard SPI interface and feature an extremely high PWM frequency for flicker-free dimming. Each LED is individually addressable for full colour control across the entire strip.
The strip runs on 5 V and can be cut between any two LEDs for custom lengths. It comes pre-terminated with 0.1" (2.54 mm) spaced 4-pin connectors on each end for easy daisy-chaining or direct connection to a microcontroller.
Key Features
- 60× APA102C LEDs – Individually addressable RGB with high PWM frequency
- SPI Interface – Two-wire (data + clock) for reliable, high-speed communication
- Flicker-Free Dimming – High PWM rate eliminates visible flicker on camera
- Cuttable – Trim to length between any two LEDs
- Pre-Terminated – 4-pin 0.1" connectors on both ends
Specifications
- LED Type – APA102C (RGB)
- LED Count – 60 per metre
- Length – 1 m
- Operating Voltage – 5 V
- Interface – SPI (data + clock)
Ideal For
- Decorative and ambient lighting
- LED art installations and wearables
- Video-friendly lighting (no flicker)
- Arduino, Raspberry Pi, and ESP32 projects
Package Contents
- 1× APA102C LED strip (1 m, 60 LEDs)
Resources
