JST PH 4-Pin to Male Header Cable - I2C STEMMA Cable - 200mm

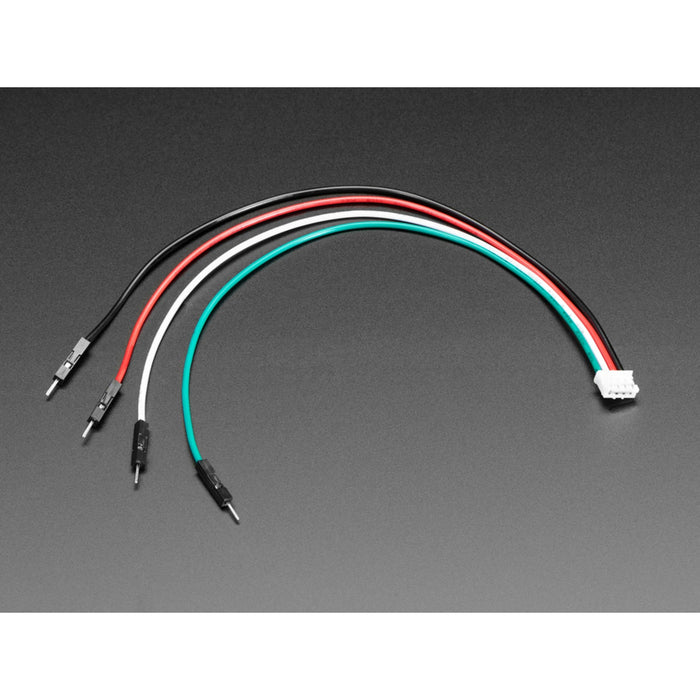

This 200 mm cable converts a JST PH 4-pin connector into four individual wires with 0.1″ (2.54 mm) male header pins on the end. It's designed for connecting STEMMA and Grove I²C boards to breadboards, socket headers, or any standard 0.1″ pitch connection.

Key Features

• JST PH to Male Headers – 4-pin JST PH on one end, individual 0.1″ male pins on the other
• 200 mm Length – Convenient length for prototyping
• Colour-Coded Wires – Easy identification of each connection
• STEMMA & Grove Compatible – Fits both Adafruit STEMMA and Seeed Grove I²C connectors

Wire Colours

• Black – GND
• Red – V+
• White – SDA
• Green – SCL

Specifications

• Connector A – JST PH 4-pin
• Connector B – 4× 0.1″ male header pins
• Length – 200 mm
• Conductors – 4 (GND, V+, SDA, SCL)

Ideal For

• Connecting STEMMA or Grove boards to breadboards
• I²C sensor prototyping with standard headers
• Bridging JST PH connectors to 0.1″ pitch sockets
