This kit includes JST XHP-2, XHP-3 and XHP-4 housing (20 units each), through-hole type shrouded header (20 units each) and crimp contact (100 units).


SPECIFICATIONS

  • Current rating:3A AC,DC (AWG #22)
  • Voltage rating:250V AC,DC
  • Temperature range: -25°C to +85°C (including temperature rise in applying electrical current)
  • Contact resistance: Initial value/10m Ω max.
  • After environmental testing/20m Ω max.
  • Insulation resistance: 1000M Ω min.
  • Withstanding voltage: 1000V AC/minute
  • Applicable wire: AWG#30~#22
  • Applicable PC board thickness: 1.6mm (0.06")

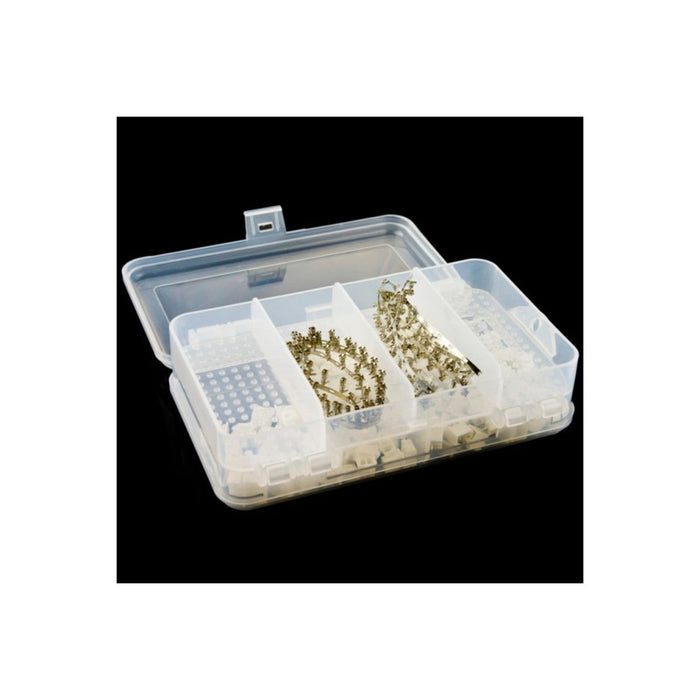

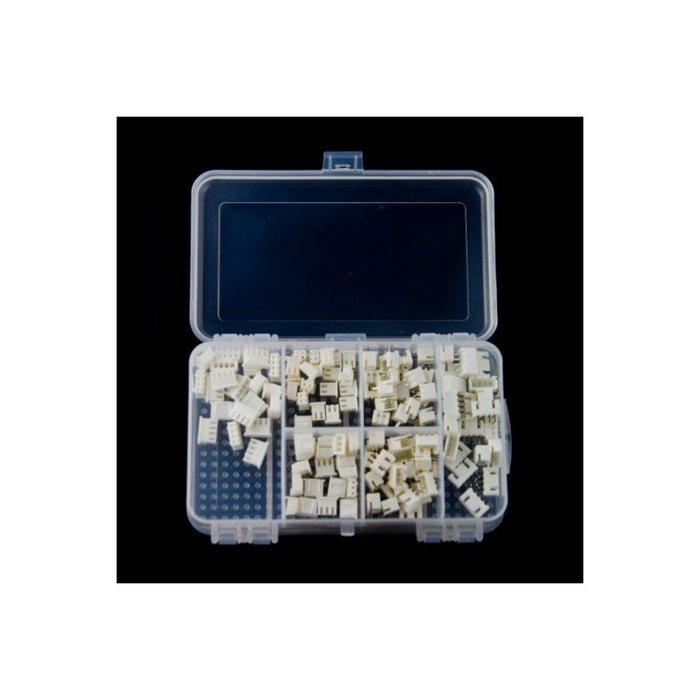

SHIPPING LIST

  • JST 2.54mm (0.1") XHP-2 housing x20
  • JST 2.54mm (0.1") XHP-3 housing x20
  • JST 2.54mm (0.1") XHP-4 housing x20
  • JST 2.54mm (0.1") B2B-XH-Athrough-hole type shrouded header x20
  • JST 2.54mm (0.1") B3B-XH-Athrough-hole type shrouded header x20
  • JST 2.54mm (0.1") B4B-XH-Athrough-hole type shrouded header x20
  • crimp contact x100
  • Two-sided Compartment Parts Box x1
