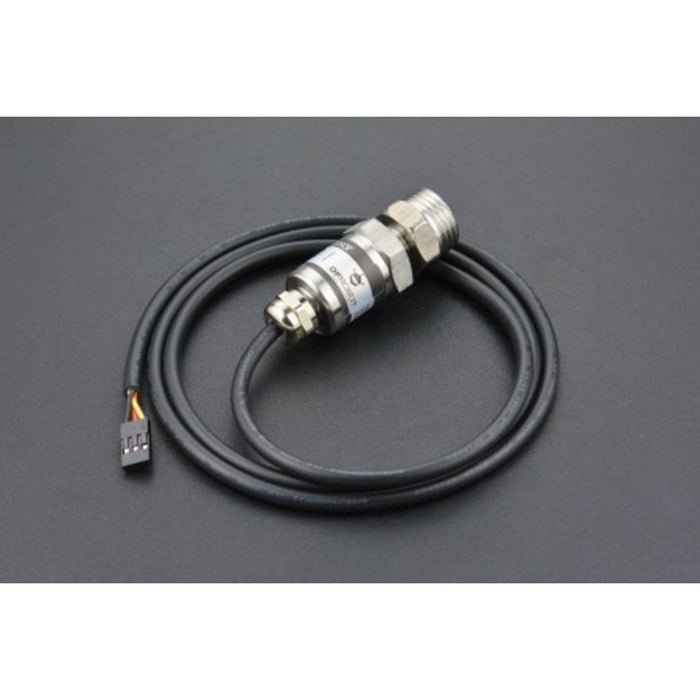

Gravity: Analog Water Pressure Sensor
1101 units available with a short lead time.
The Gravity Analog Water Pressure Sensor measures water or gas pressure and outputs a linear 0.5–4.5 V analogue signal proportional to the applied pressure (0–1.6 MPa). Using the DFRobot Gravity 3-pin interface, it connects directly to Arduino and other 5 V microcontrollers for easy integration into water monitoring and control systems.
The sensor features a G1/4 thread fitting (with a G1/2 to G1/4 adapter included), IP68 waterproof rating, and compatibility with non-corrosive liquids and gases. Suitable for household water systems, garden irrigation, tank level monitoring, and environmental water pressure detection.
Key Features
- Gravity 3-Pin Interface – Plug-and-play with Gravity-compatible boards
- Linear Analogue Output – 0.5–4.5 V proportional to 0–1.6 MPa
- IP68 Waterproof – Fully submersible sensor probe
- Wide Pressure Range – 0–1.6 MPa measurement, up to 2.0 MPa operating
- Fast Response – <2.0 ms response time
- Low Power – 2.8 mA quiescent current
Specifications
- Medium – Non-corrosive liquid or gas
- Pressure Range – 0–1.6 MPa
- Normal Operating Pressure – ≤2.0 MPa
- Damage Pressure – ≥3.0 MPa
- Input Voltage – 5 V DC
- Output Voltage – 0.5–4.5 V (linear)
- Accuracy – 0.5–1% FS (0.5% at 0–55 °C)
- Quiescent Current – 2.8 mA
- Response Time – <2.0 ms
- Thread – G1/4 (G1/2 adapter included)
- Waterproof Rating – IP68
- Operating Temperature – −20 °C to +85 °C
- Interface – Gravity 3-pin (Signal–VCC–GND)
- Service Life – 10,000,000 cycles
Ideal For
- Household water pressure monitoring
- Garden and farm irrigation systems
- Tank and liquid level detection
- IoT smart water control systems
Package Contents
- 1× Gravity Analog Water Pressure Sensor
- 1× G1/2 to G1/4 Thread Adapter
