Adafruit Trinket - 5V
We have ✅ 10 available of the AF-1501 in our Sydney warehouse. An extra 100 units available with a short lead time.

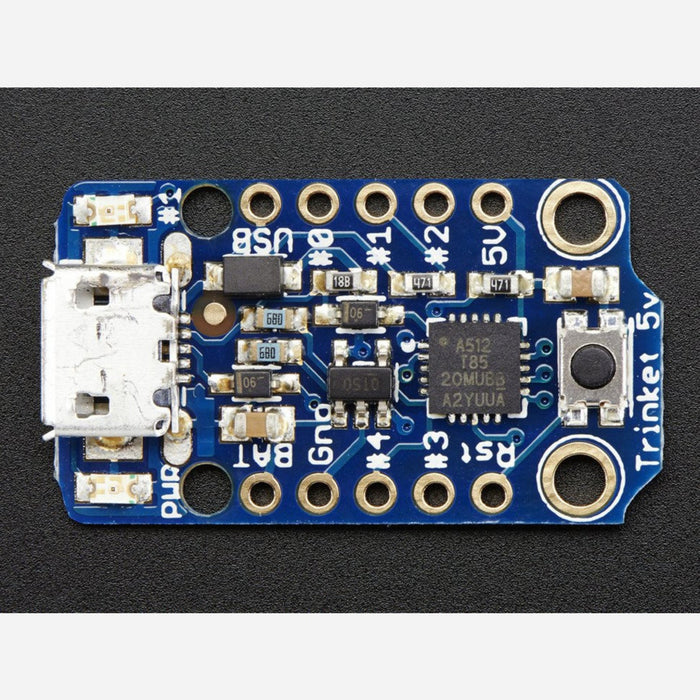

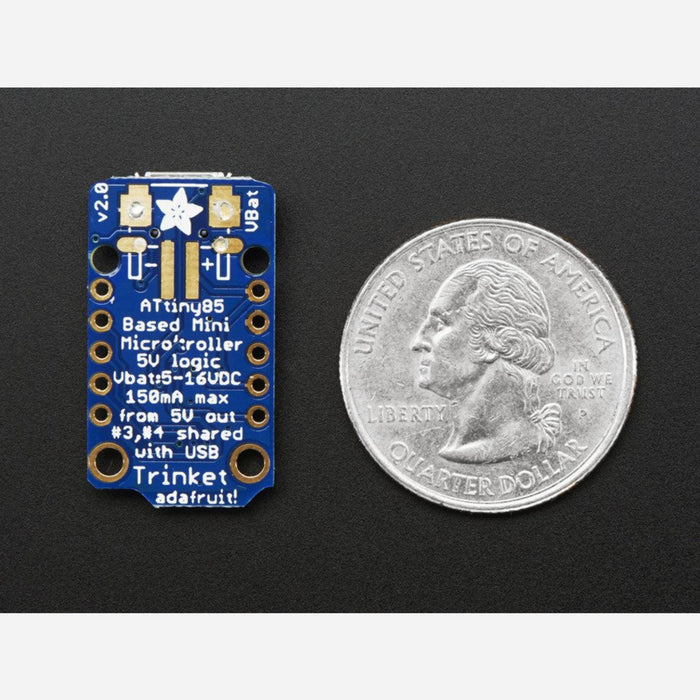

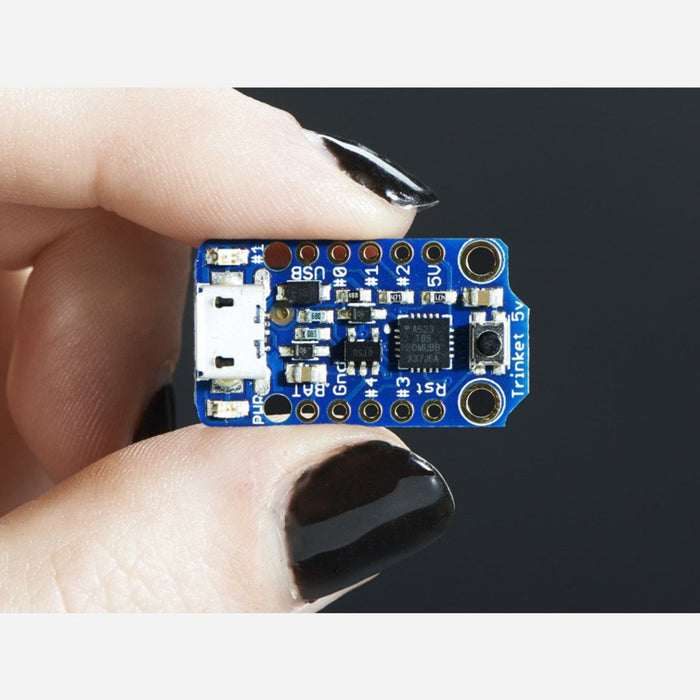

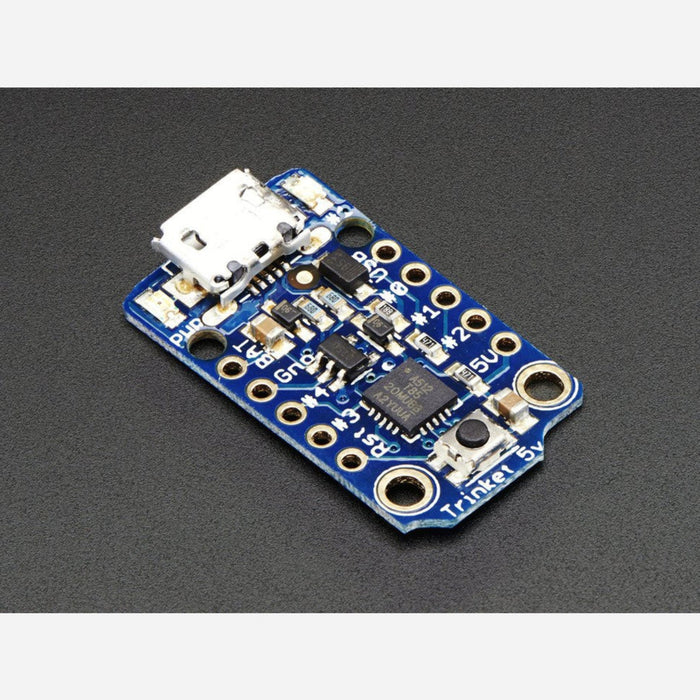

The Adafruit Trinket 5V is a tiny microcontroller board built around the Atmel ATtiny85 processor. At just 27mm × 15mm, it's small enough to fit into virtually any project and affordable enough to dedicate to a single build. Program it via the Arduino IDE over the Micro-USB connector — no separate programmer required.
This is the 5V version, designed for interfacing with 5V sensors, components, and logic levels. It can run at 8 MHz or 16 MHz via a software-configurable clock setting. For 3.3V logic or LiPo battery projects, choose the 3V version instead.
Key Features
- ATtiny85 Processor – 8K flash (~5.25K usable), 512 bytes SRAM, 512 bytes EEPROM
- 5 GPIO Pins – 3 independent I/O (1 analog input, 2 PWM outputs) plus 2 shared with USB (2 more analog inputs, 1 more PWM output)
- Arduino IDE Compatible – USB bootloader allows programming directly from the Arduino IDE or AVRdude

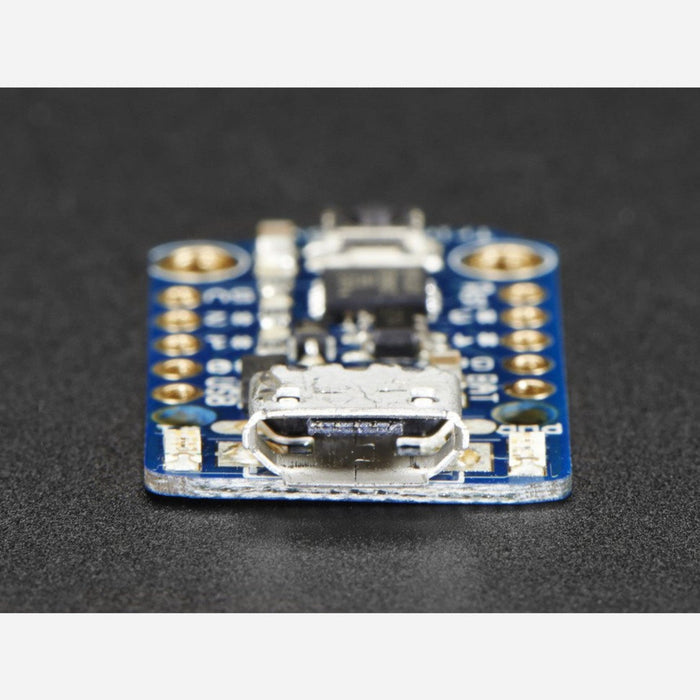

- Micro-USB Connector – For programming and power
- Onboard 5.0V Regulator – 150mA output with up to 16V input, reverse-polarity protection, thermal and current-limit protection
- Automatic Power Switching – Powers from USB or external source (battery), switches automatically
- Hardware I2C / SPI – For connecting breakouts and sensors
- 8 MHz or 16 MHz Operation – Software-configurable clock speed
- Onboard LEDs – Green power LED and red LED on pin #1
- Reset Button – Enter bootloader or restart without unplugging
- Mounting Holes – For secure installation
Ideal For
- Small, embedded projects with minimal I/O requirements
- NeoPixel and LED projects
- Wearable electronics and compact builds
- Dedicated microcontroller for single-purpose 5V projects
Package Contents

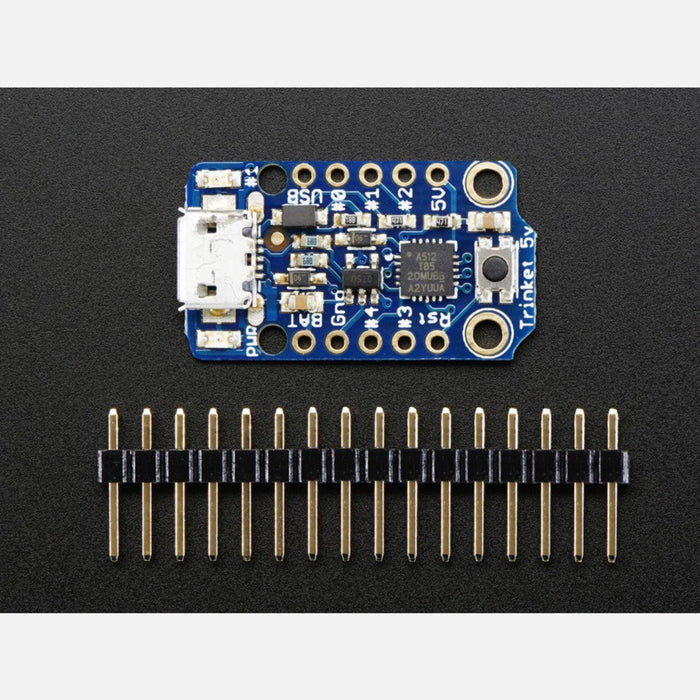

- 1× Adafruit Trinket 5V Microcontroller Board
