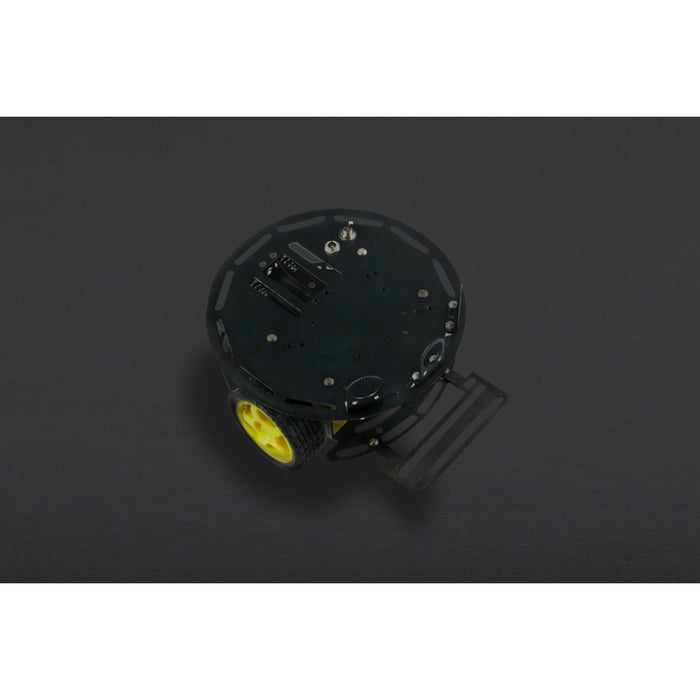

Turtle: 2WD Arduino Mobile Robot Platform
We have ✅ 9 available of the DF-ROB0005 in our Sydney warehouse. An extra 24 units available with a short lead time.
The Turtle is a compact 2WD mobile robot platform designed for use with Arduino and other microcontroller boards. It comes as a kit with two geared DC motors, rubber wheels, a rear caster ball, an aluminium alloy chassis, and all mounting hardware needed for assembly.
The top layer includes a standard servo socket and three optional sensor holder positions for IR range sensors. The servo mount supports simple rotation platforms, two degree-of-freedom camera holders, or small robotic arms. With its differential drive and near-zero turning radius, it's well suited to indoor flat-surface navigation.
Key Features
- Differential 2WD Drive – Two geared motors with near-zero turning radius
- Aluminium Alloy Chassis – Durable, lightweight 170 mm diameter base
- Servo and Sensor Mounts – Standard servo socket with three adjustable sensor positions
- Expandable Platform – Compatible with Arduino motor shields and all-in-one robot controllers
- Rear Caster Ball – Smooth omnidirectional movement
Specifications
- Drive – 2WD differential
- Base Diameter – 170 mm
- Weight – 445 g
- Motors – 2× TT geared DC motors with back shaft
Package Contents
- 1× Aluminium alloy chassis
- 2× TT geared DC motors
- 2× Rubber wheels
- 1× Rear caster ball
- Mounting hardware
