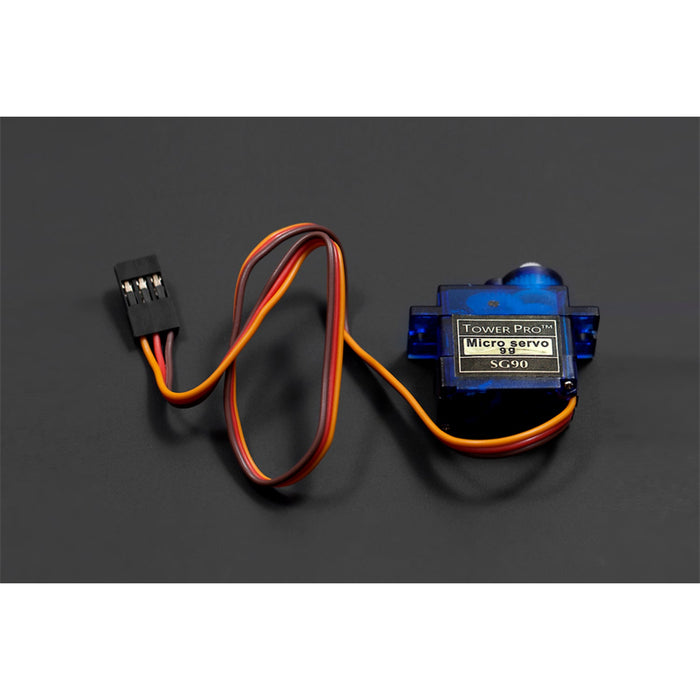

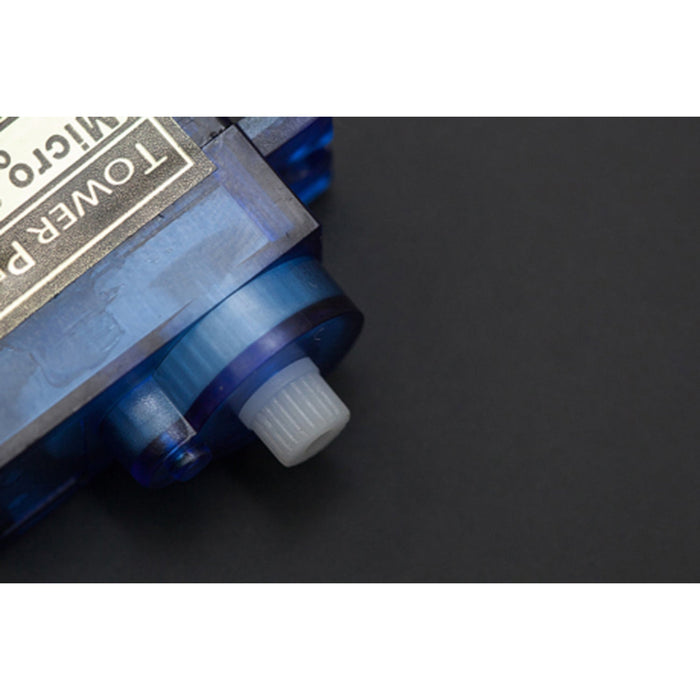

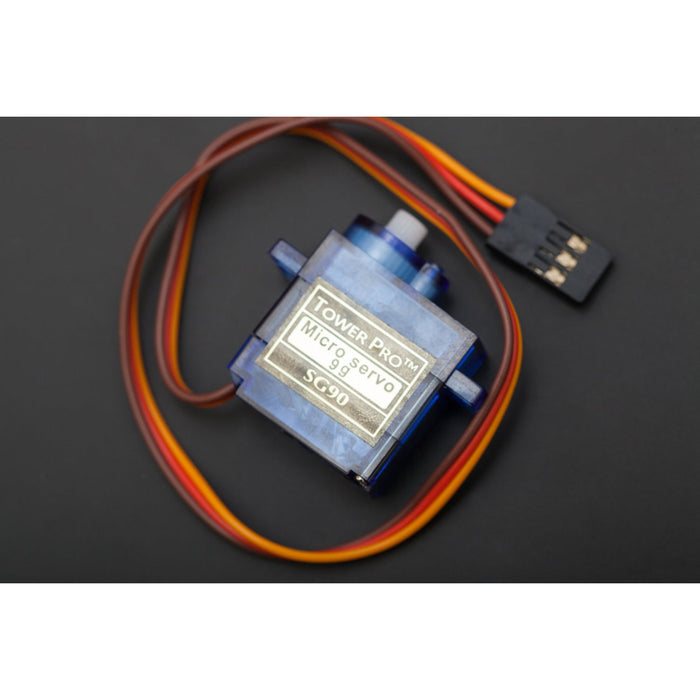

9g micro servo (1.6kg)
We have ✅ 8 available of the DF-SER0006 in our Sydney warehouse. An extra 606 units available with a short lead time.
A lightweight 9g micro servo with 1.6 kgf·cm of torque at 4.8V. Ideal for small-scale robotics, beam robots, and automation tasks where a compact, affordable servo is needed. At only 9 grams, it fits into tight spaces while providing reliable performance.
Specifications
- Operating Voltage – 4.8–6V
- Operating Angle – 180°
- Stall Torque – 1.6 kgf·cm (4.8V)
- Speed (No Load) – 0.12 sec/60° (4.8V)
- Working Current – less than 500mA
- Dead Band – 7μs
- Operating Temperature – -30°C to +60°C

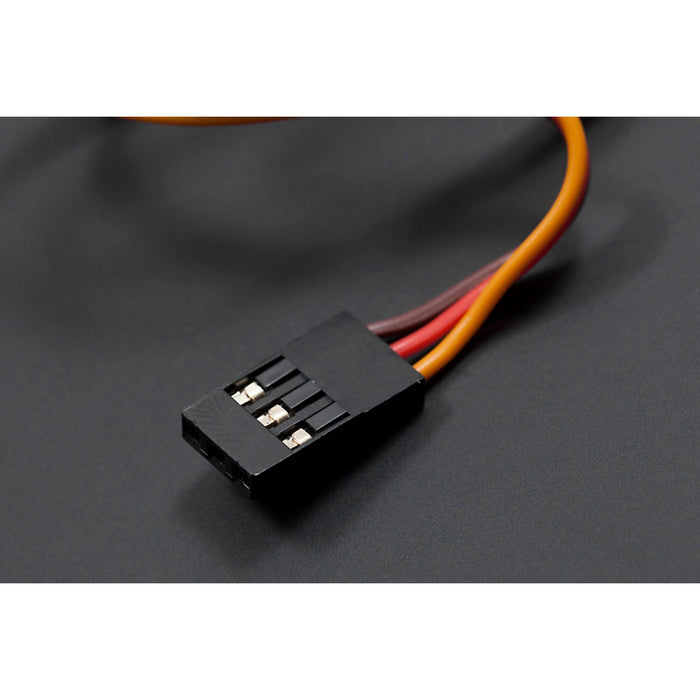

- Cable Length – 180mm
- Dimensions – 22 × 12.5 × 29.5mm
- Weight – 9g
Ideal For
- Small-scale robotics (e.g. Insectbot Kit)
- Beam robots and automation tasks
- Lightweight projects where space is limited

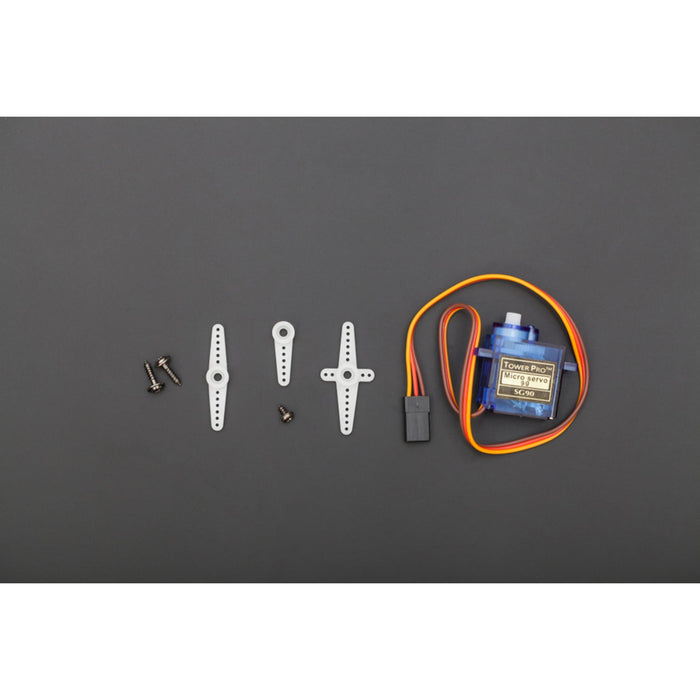

Package Contents

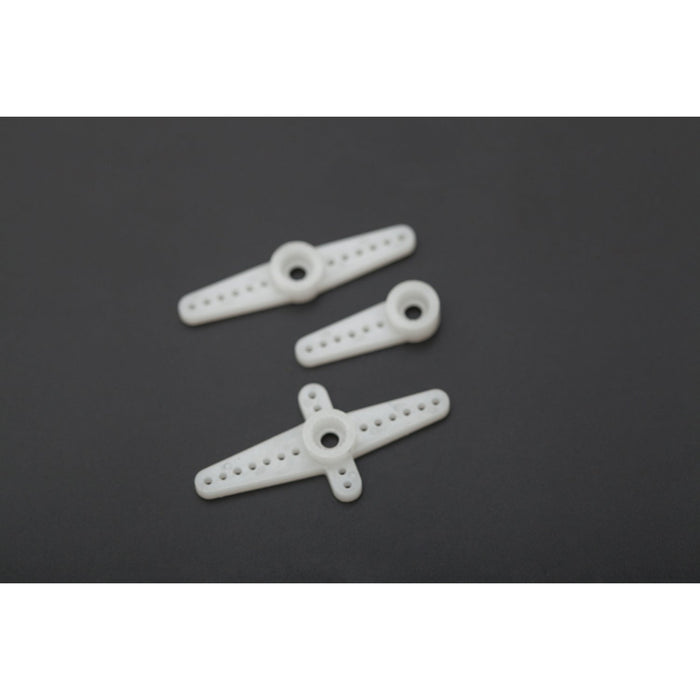

- 1× 9g Micro Servo (1.6kg)
The 9g micro servo (1.6kg) appears in the following collections:
SKU DF-SER0006
by DFRobot
