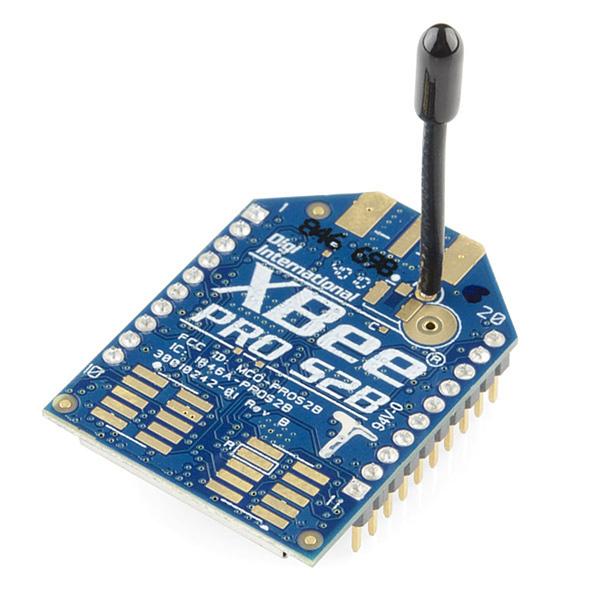

XBee Pro 63mW Wire Antenna - Series 2B (ZigBee Mesh)
Discontinued
The XBee Pro Series 2B (XBP24-BZ7WIT-004) is a 63 mW ZigBee mesh networking module from Digi. It enables reliable serial communication between microcontrollers, computers, and other devices over distances up to 1 mile (1.6 km). The module supports point-to-point, multi-point, and complex mesh network topologies using the XBee ZB ZigBee firmware.
Series 2B modules communicate with Series 2 XBee modules but are not compatible with the older Series 2.5 modules. This version features a wire antenna and 128-bit encryption for secure wireless links.
Note: Series 2B requires configuration for mesh networking — it is not plug-and-play like Series 1. Series 1 and Series 2B have the same pin-out but cannot communicate with each other. Check local radio communication regulations if using outside the United States.
Key Features
- 63 mW Output (+17 dBm) – Extended range up to 1 mile (1.6 km)
- ZigBee Mesh Networking – Point-to-point, multi-point, and mesh topologies
- 250 kbps Max Data Rate – Fast serial communication
- 128-Bit Encryption – Secure wireless data transfer
- Wire Antenna – Built-in for easy deployment
- 6× 10-Bit ADC Inputs – Analog sensor reading capability
- 8× Digital I/O Pins – Direct control of remote devices
- AT or API Command Set – Local or over-the-air configuration
Specifications
- Module – Digi XBP24-BZ7WIT-004
- Protocol – ZigBee (XBee ZB firmware)
- Frequency – 2.4 GHz
- TX Power – 63 mW (+17 dBm)
- Range – Up to 1 mile (1.6 km)
- Data Rate – 250 kbps max
- Power – 3.3V @ 295 mA
- Antenna – Wire
- Certification – FCC
Ideal For
- Wireless sensor networks
- Remote monitoring and control
- ZigBee mesh network projects
- Home automation and IoT
Package Contents
- 1× XBee Pro 63 mW Wire Antenna – Series 2B
