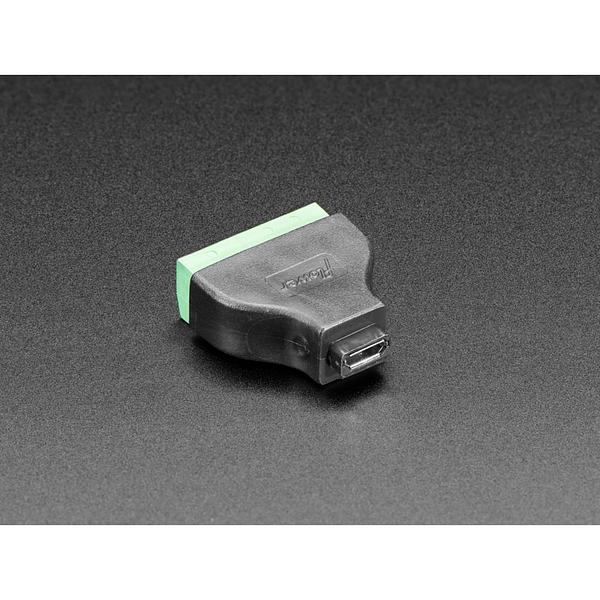

USB Micro B Female Socket to 5-pin Terminal Block
Discontinued
This adapter breaks out a Micro USB female socket to a 5-pin screw terminal block, making it easy to create custom USB cables and connections without soldering. Simply loosen the terminal screws, insert your stranded or solid-core wire, and tighten — all pins are clearly labelled.
Ideal for prototyping USB power connections, building custom OTG cables, or accessing individual USB data lines for testing and development.
Pin Assignment
- A – Pin 1 (V+)
- B – Pin 2 (D−)
- C – Pin 3 (D+)
- D – Pin 4 (ID)
- E – Pin 5 (GND)
Key Features
- No Soldering Required – Screw terminal connections for quick wiring
- Micro USB Female Socket – Accepts standard Micro USB plugs
- All 5 Pins Broken Out – Including ID pin for OTG applications
- Clearly Labelled – Pin assignments printed on the board
Ideal For
- Custom USB cable and adapter builds
- USB power supply prototyping
- USB OTG device development
- Testing and debugging USB connections
Package Contents
- 1× USB Micro B Female Socket to 5-Pin Terminal Block
