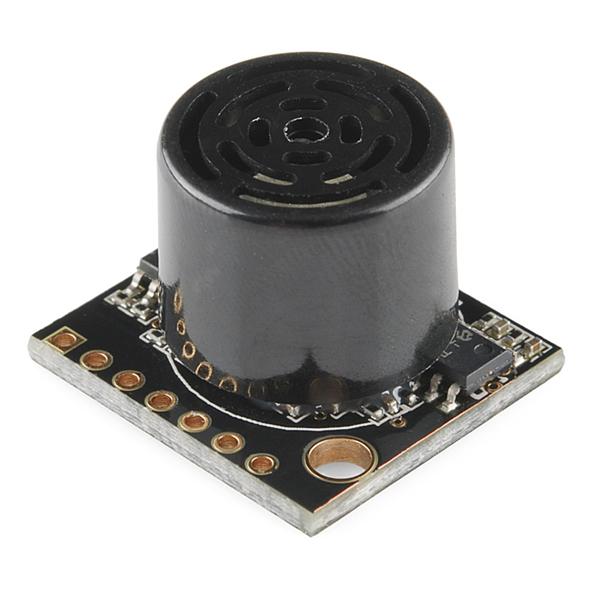

Ultrasonic Range Finder - HRLV-MaxSonar-EZ1
The HRLV-MaxSonar-EZ1 is a high-resolution ultrasonic rangefinder from MaxBotix with 1mm resolution. It measures distances up to 5,000mm (5 metres) with virtually no dead zone — objects closer than 300mm will typically read as 300mm. Three output formats (analog voltage, RS232 serial, and pulse width) make it easy to interface with any microcontroller.
The EZ1 offers a medium beam width, sitting between the wider EZ0 and narrower EZ4 models in the HRLV-MaxSonar range. Up to 10 sensors can be daisy-chained and controlled with just two pins.
Key Features
- Sensor Frequency – 42 kHz ultrasonic
- Resolution – 1mm
- Maximum Range – 5,000mm (5m / 195 inches)
- Minimum Range – ~300mm (objects closer read as 300mm)
- Outputs – Analog voltage, RS232 or TTL serial, and pulse width
- Operating Voltage – 2.5V to 5.5V
- Current Draw – 3.1 mA average
- Reading Rate – 10 Hz
- Beam Width – Medium (EZ1 pattern)
- Multi-Sensor – Chain up to 10 sensors using 2 pins
Ideal For
- Robotics obstacle detection and navigation
- Distance measurement and proximity sensing
- Level sensing in tanks and containers
- Automotive and industrial applications
Package Contents
- 1× HRLV-MaxSonar-EZ1 ultrasonic range finder
