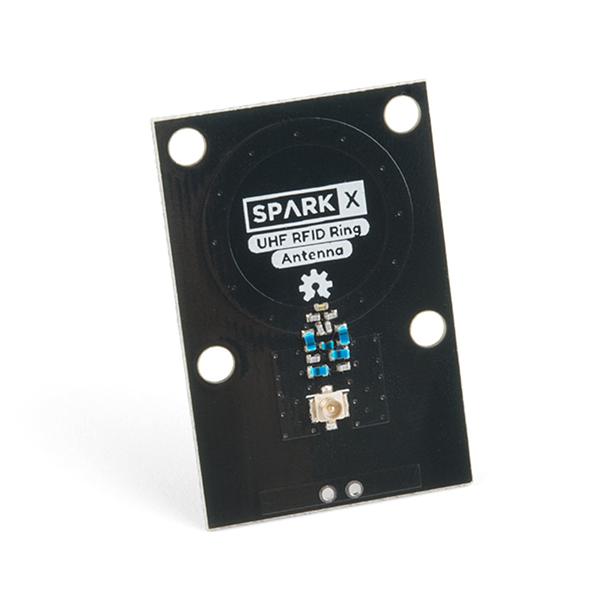

Eager to try out the new Ultra-small UHF RFID Rain Tags it quickly became apparent that the trace antenna on the M6E Nano Shield wasn’t going to cut it so we based a board on Murata’s reference design. So born was the UHF RFID Ring Antenna! This antenna does one thing and does it well - increasing the effective range of the Rain tags from (effectively) zero to about one inch. Ask any mathematician and they’ll tell you that’s a very good return!
This antenna is intended to be used in the UHF band (865MHz to 928MHz) and the U.FL connector makes it easy to connect to the M6E Nano or most other compatible RF products using a U.FL to U.FL cable. You can even use two through-hole locations to solder in place strain protection for the cable.
Cable Sold Separately Unless you already have a spare U.FL to U.FL coaxial we recommend picking up this one.
