This product is no longer available
We no longer stock TFMini - Micro LiDAR Module, but here are current alternatives in Distance & Ranging Sensors.

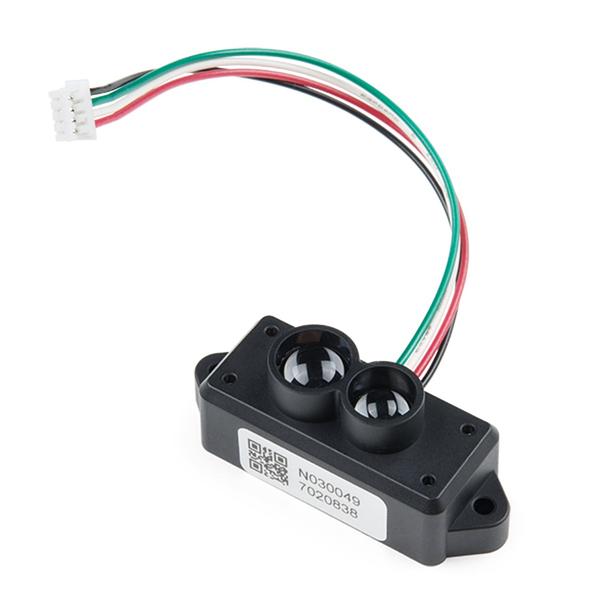

TFMini - Micro LiDAR Module
Discontinued
The TFMini is a compact Time of Flight (ToF) LiDAR sensor that measures distance from 30 cm to 12 metres. At just 42 × 15 × 16 mm, it brings LiDAR ranging to applications traditionally reserved for smaller infrared sensors.
This version includes a breadboard-friendly cable with four pins for easy connection to Arduino and other microcontroller platforms via female headers. It runs on 5 V and communicates over 3.3 V UART at 115200 baud.
Key Features
- Time of Flight LiDAR – Accurate distance measurement using infrared laser ranging
- 30 cm to 12 m Range – Effective range varies with lighting conditions and target reflectivity
- Ultra-Compact – Just 42 × 15 × 16 mm, suitable for space-constrained builds
- Simple Interface – 3.3 V UART at 115200 baud for easy integration
- Breadboard-Friendly Cable – Four-wire cable terminated with pin headers
- Low Power – Operates on 5 V supply
Ideal For
- Robotics and obstacle avoidance
- Drone altitude and proximity sensing
- Distance measurement and mapping projects
- Arduino, Raspberry Pi, and microcontroller integration
Package Contents
- 1× TFMini Micro LiDAR Module
- 1× Breadboard-friendly cable
