Temperature Sensor - Waterproof (DS18B20)
This sealed digital temperature probe lets you precisely measure temperatures in wet environments with a simple 1-Wire interface. The DS18B20 provides 9 t...
This sealed digital temperature probe lets you precisely measure temperatures in wet environments with a simple 1-Wire interface. The DS18B20 provides 9 to 12-bit (configurable) temperature readings over a 1-Wire interface, so that only one wire (and ground) needs to be connected from a central microprocessor.

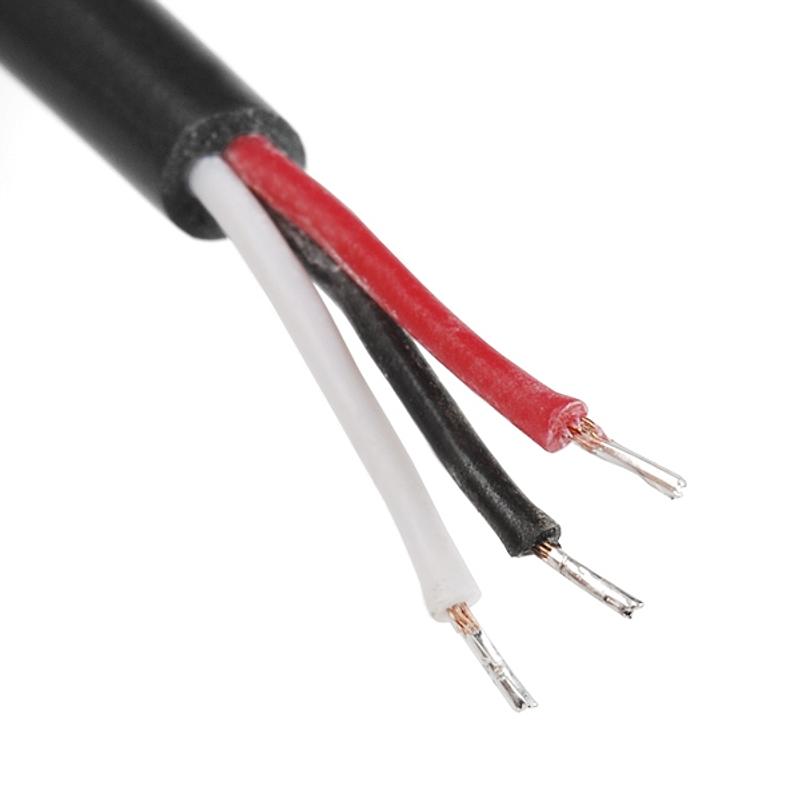

Note: The pinout for this sensor is as follows: RED=Vcc BLACK=GND WHITE=SIG

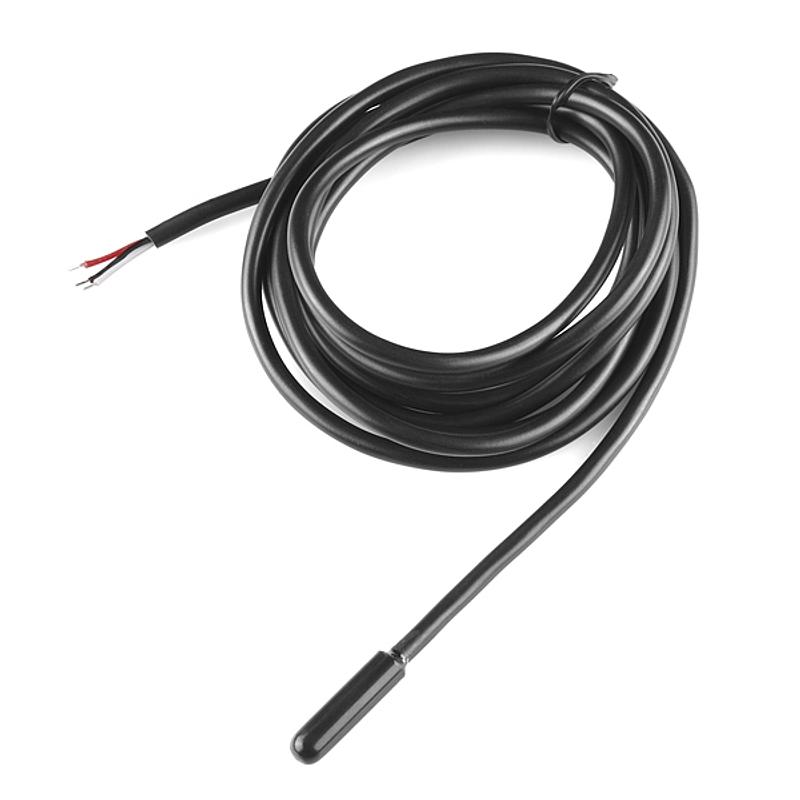

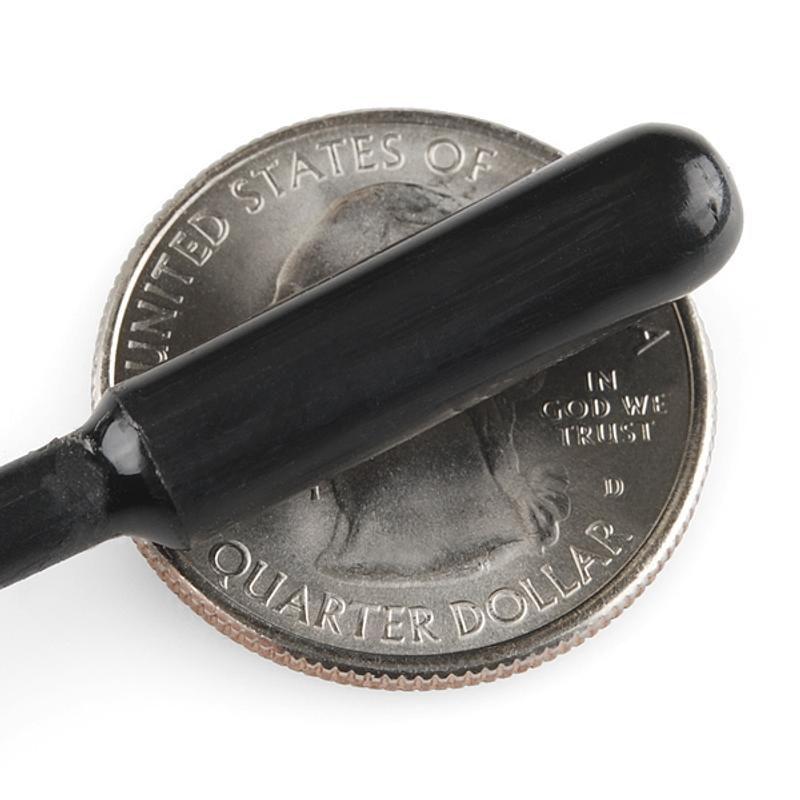

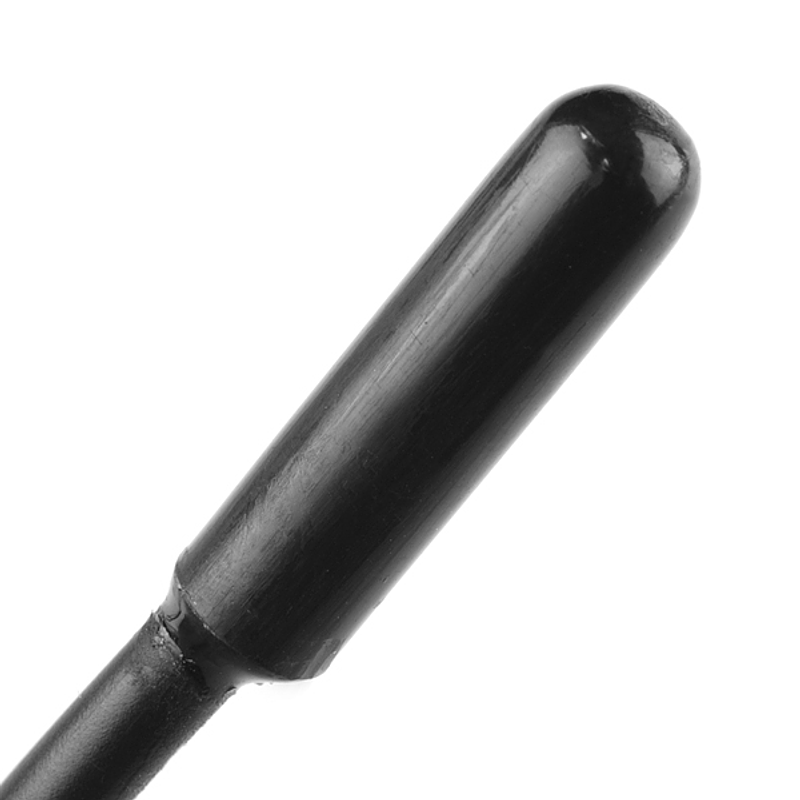

Dimensions: Probe is 7mm in diameter and roughly 26mm long. Overall length (including wire) is 6 feet.
Features:
- 3.0-5.5V input voltage
- Waterproof
- -55°C to+125°C temperature range
- ±0.5°C accuracy from -10°C to +85°C
- 1 Wire interface
Documents:
- Datasheet (DS18B20)
- Simple Sketch Code
- mbed Example
Jargon buster
Plain-language definitions for the technical terms used above.
- 1-Wire
- 1-Wire is a communication method where devices share a single data line, often with each device having its own address. It matters because several temperature modules can be connected to one microcontroller pin instead of needing a separate pin for each probe.
- DS18B20
- A common digital temperature sensor often sold in waterproof probe form. It matters here because the kit does not include temperature measurement, and a DS18B20 is the suggested add-on if your water readings need temperature context.
