Teensy 3.2 + header [AF-2756]

Teensy 3.2 + header

Teensy 3.2 + header [AF-2756]

Price: $56.27
Fastest delivery: Monday, 13th December
Order before 2pm Thursday, 9th December
We have 2 in our Sydney warehouse.
Need more than 2 units?
🔒 Secure transaction
Ships from: Little Bird (SYD) → You
Ships from: Supplier → Little Bird (SYD) → You

Product Image Gallery

Photo of Teensy 3.2 + header Photo of Teensy 3.2 + header Photo of Teensy 3.2 + header Photo of Teensy 3.2 + header Photo of Teensy 3.2 + header Photo of Teensy 3.2 + header Photo of Teensy 3.2 + header Photo of Teensy 3.2 + header

Description

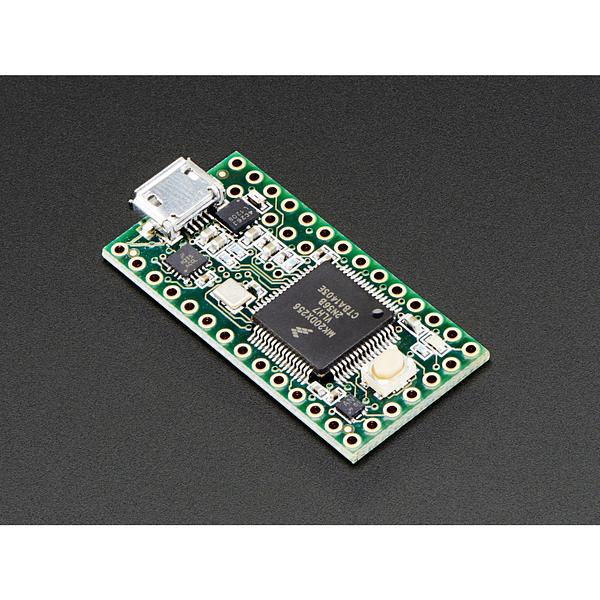

Teensy 3.2 is a small, breadboard-friendly development board designed by Paul Stoffregen and PJRC. Teensy 3.2 brings a low-cost 32 bit ARM Cortex-M4 platform to hobbyists, students and engineers, using an adapted version of the Arduino IDE (Teensyduino) or programming directly in C language. Teensy 3.2 is an upgrade over 3.1! Teensy 3.2 is a drop-in replacement upgrade for 3.1 and can run any sketches designed for 3.1.

This latest version of this complete USB-based microcontoller development system now adds a more powerful 3.3V regulator, as well as accepts a wider voltage input range. This board has the same size, shape and pinout as well as full compatibility with all shields and add-on boards made for the Teensy 3.1, plus double the Flash memory as the Teensy 3.0.

Let's get started!

Please note: Teensy 3 and 2 are not official Arduino-brand products. Although the Teensyduino IDE has been adapted so that many simple Arduino projects will work with the Teensy, there will still be a lot of libraries and shields that will not work with this device! If you're new to microcontrollers, we suggest going with a classic Arduino UNO since all Arduino projects, examples and libraries will work with it.

Once headers are installed they can be fitted into 0.6" wide sockets

Technical Specifications:

  • 32 bit ARM Cortex-M4 72MHz CPU (M4 = DSP extensions) Here is Freescale's reference manual for the chip (warning 1227 pages) as well as the Datasheet and User Guide!
  • 256K Flash Memory, 64K RAM, 2K EEPROM
  • 21* High Resolution Analog Inputs (13 bits usable, 16 bit hardware)
  • 34* Digital I/O Pins (21 shared with analog)
  • 12 PWM outputs
  • 1 12-bit DAC output
  • 8 Timers for intervals/delays, separate from PWM
  • USB with dedicated DMA memory transfers
  • CAN bus
  • 3 UARTs (serial ports)
  • SPI, I2C, I2S, IR modulator
  • I2S (for high quality audio interface)
  • Real Time Clock (with user-added 32.768 crystal and battery)
  • 16 general purpose DMA channels (separate from USB)
  • Touch Sensor Inputs

Information, documentation and specs are on the Teensy site. Please check it out for more details!
