SparkFun USB Mini-B Breakout
A simple breakout board for the USB Mini-B connector, bringing all 5 pins out to a breadboard-friendly 0.1" pitch header. Useful for prototyping USB connecti...
Get notified when back in stock

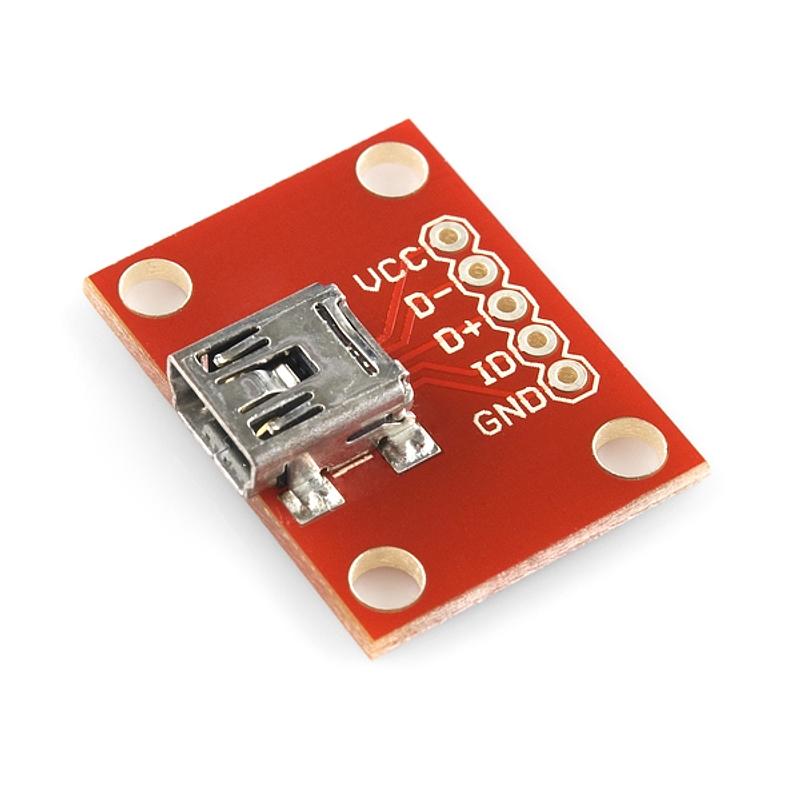

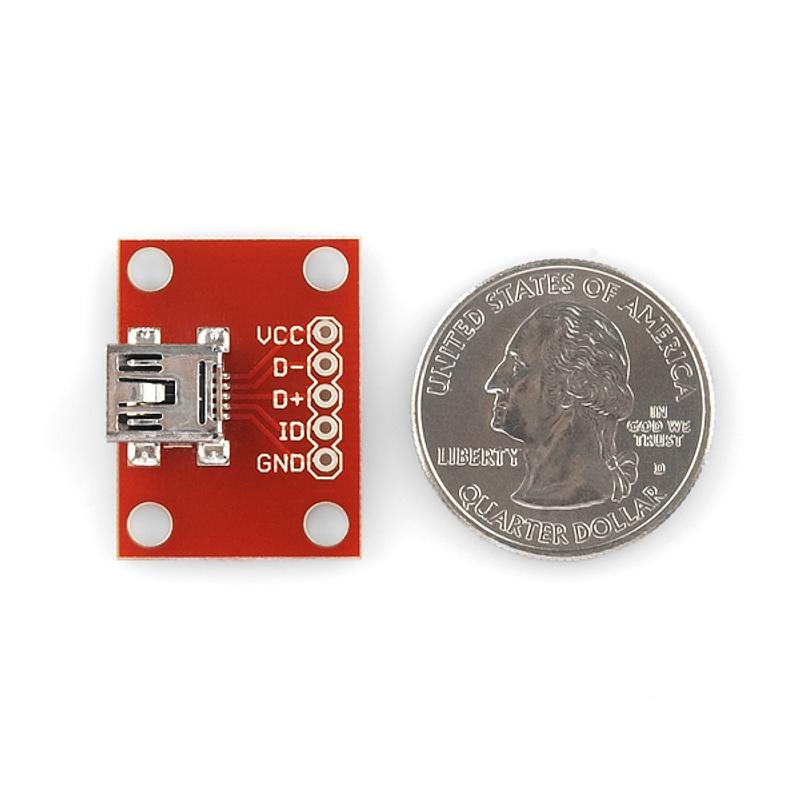

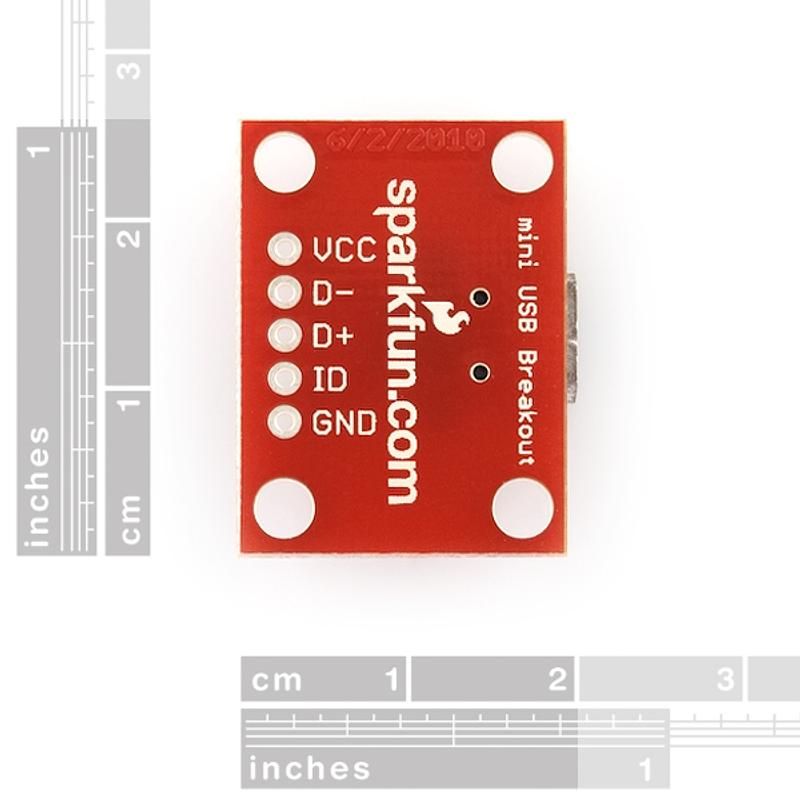

A simple breakout board for the USB Mini-B connector, bringing all 5 pins out to a breadboard-friendly 0.1" pitch header. Useful for prototyping USB connections or as a convenient 5V power source (up to 100 mA, unregulated).
Key Features
- All 5 Pins Broken Out – VCC, D-, D+, ID, and GND
- Breadboard Compatible – 0.1" pin spacing for easy prototyping
- 5V Power Source – Up to 100 mA (unregulated, non-current-limited)
Package Contents
- 1× SparkFun USB Mini-B Breakout Board
Resources
Jargon buster
Plain-language definitions for the technical terms used above.
- breakout
- A breakout board carries a small or fine-pitched component and brings its connections out to standard, breadboard- and header-friendly pins. Describing a part as a breakout means it can be wired into a project without soldering directly to the component's tiny contacts.
- GND
- GND is the ground or reference connection (0 V) for a circuit. When connecting two devices together, their grounds must be joined so both agree on what counts as a low or high signal.
- VCC
- VCC is the positive power-supply connection on a chip or module. Connecting it to the correct supply voltage is needed for the part to power on and helps avoid damaging the electronics.
Find this product in
Brands
Prototyping & Wiring
Supplier page — sparkfun.com
Supplier Description · 510.5 KB · Click any page to view full size
Resources & Downloads
Guides, code examples, and more
Source Code
Open-source libraries, firmware & example projects for this product
SparkFun USB miniB connector breakout board, available from SparkFun Electronics.
d2b4503
over 10 years ago
· 3 commits
- Hardware Initial hardware file commit over 11 years ago
- Production created larger panel v13b over 10 years ago
- .gitattributes Initial hardware file commit over 11 years ago
- .gitignore Initial hardware file commit over 11 years ago
- README.md Initial hardware file commit over 11 years ago
