SparkFun SD/MMC Card Breakout
With SD and MMC memory prices dropping, the time is right for mass storage and datalogging. This breakout board will allow you to breakout the SD/MMC socket ...
Get notified when back in stock

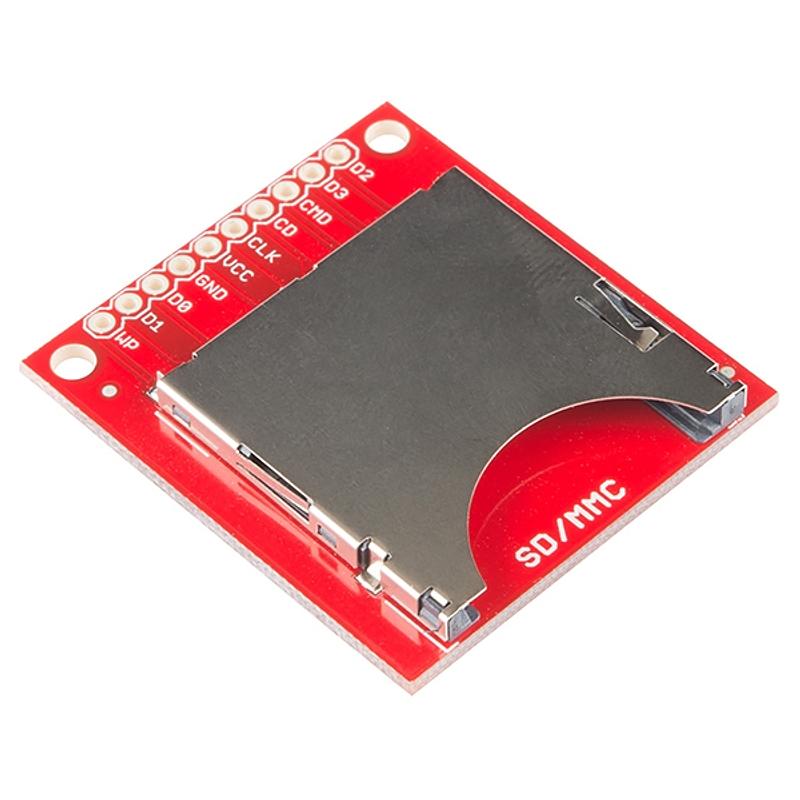

With SD and MMC memory prices dropping, the time is right for mass storage and datalogging. This breakout board will allow you to breakout the SD/MMC socket to a standard .1" 10-pin header. Perfect for breadboarding and the likes. Board comes fully assembled and tested as shown.
Dimensions: 1.3" x 1.5"
Documents:
- Schematic
- Eagle Files
- Datasheet (SD/MMC Socket)
- Hookup Guide
- Example MMC Interface Code
- GitHub (Design Files)
