SparkFun Photo Interrupter Breakout Board - GP1A57HRJ00F

$2.31

Part Number:  SF-BOB-09322
Brand:  SparkFun Australia

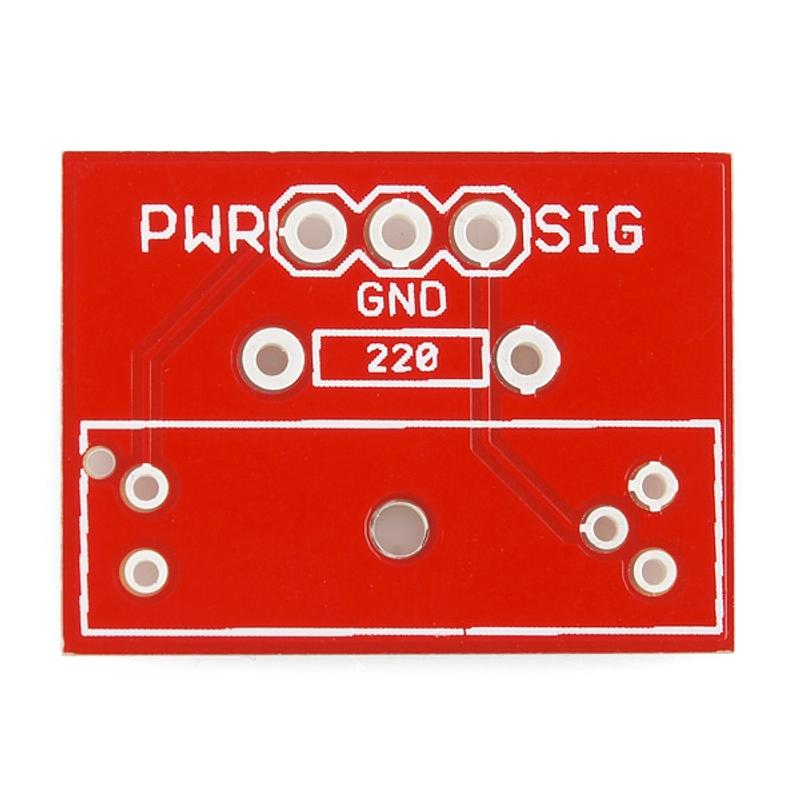

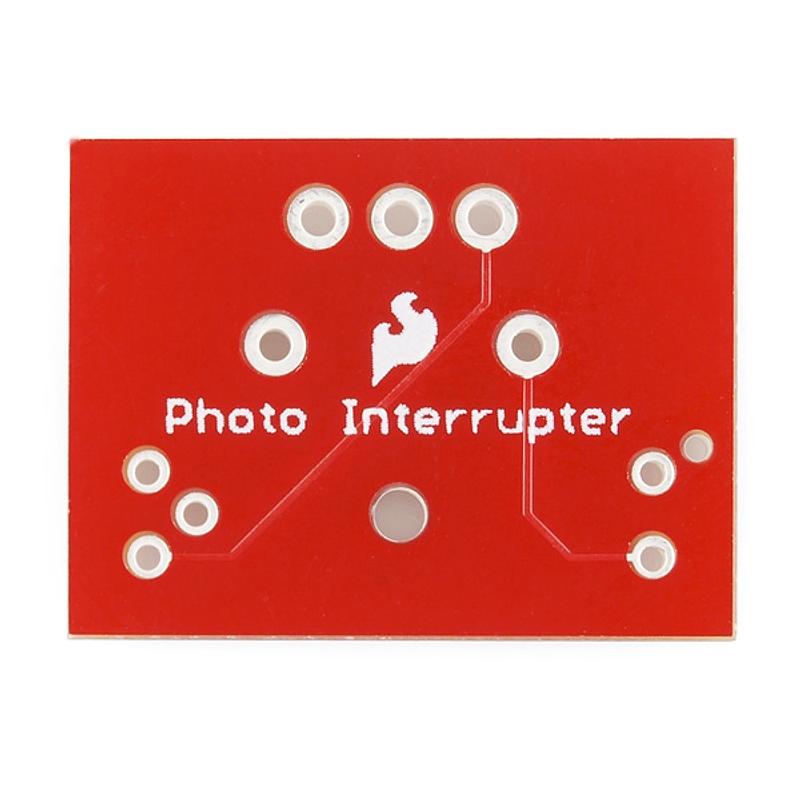

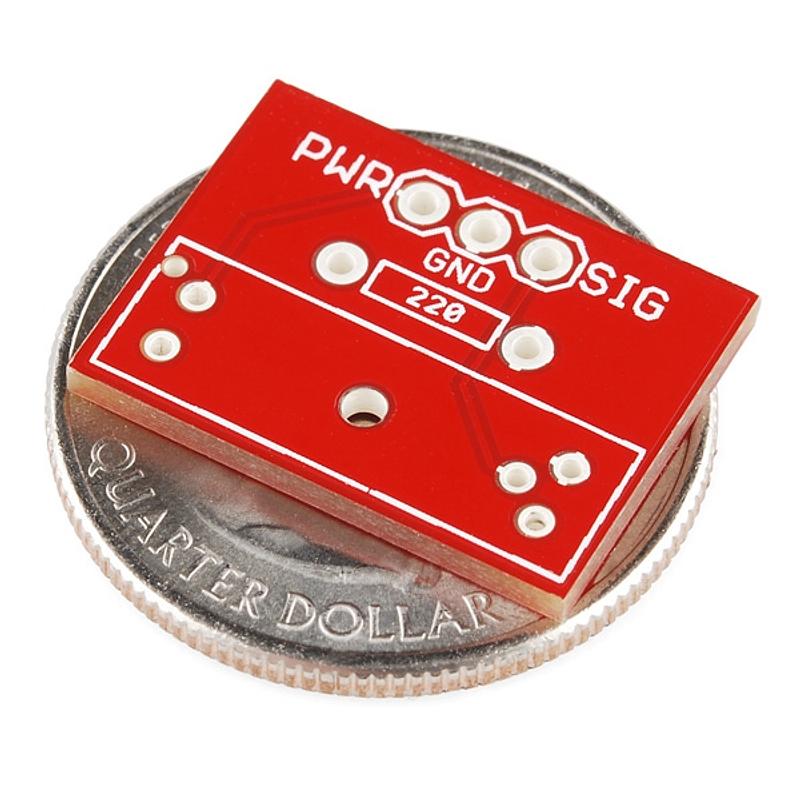

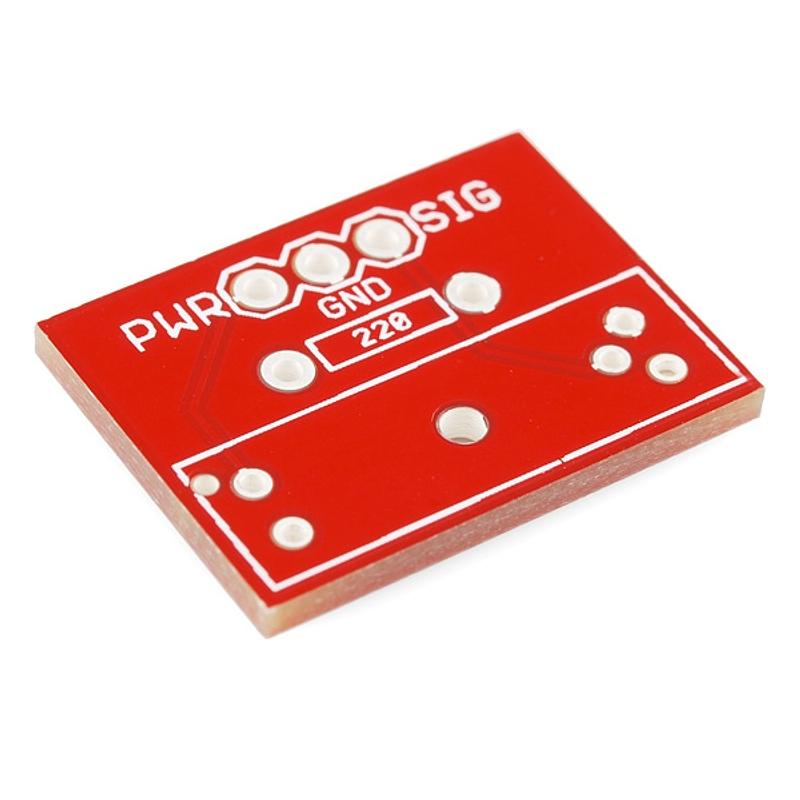

A simple breakout PCB for the GP1A57HR photo interrupter. This PCB has three connections for PWR, GND, and Signal. When the gate is clear, SIG will be high (>4.9V). When the gate is blocked by a finger, writing utensil, food pellet, or anything else - SIG will go low (<0.4V). Assembled picture is for reference only, board comes bare; photo interrupter and the 220Ω (330Ω,...
We can dispatch today: - units (delivered by -)
We can dispatch in - days: - units (delivered by -)

A simple breakout PCB for the GP1A57HR photo interrupter. This PCB has three connections for PWR, GND, and Signal.

When the gate is clear, SIG will be high (>4.9V). When the gate is blocked by a finger, writing utensil, food pellet, or anything else - SIG will go low (<0.4V).

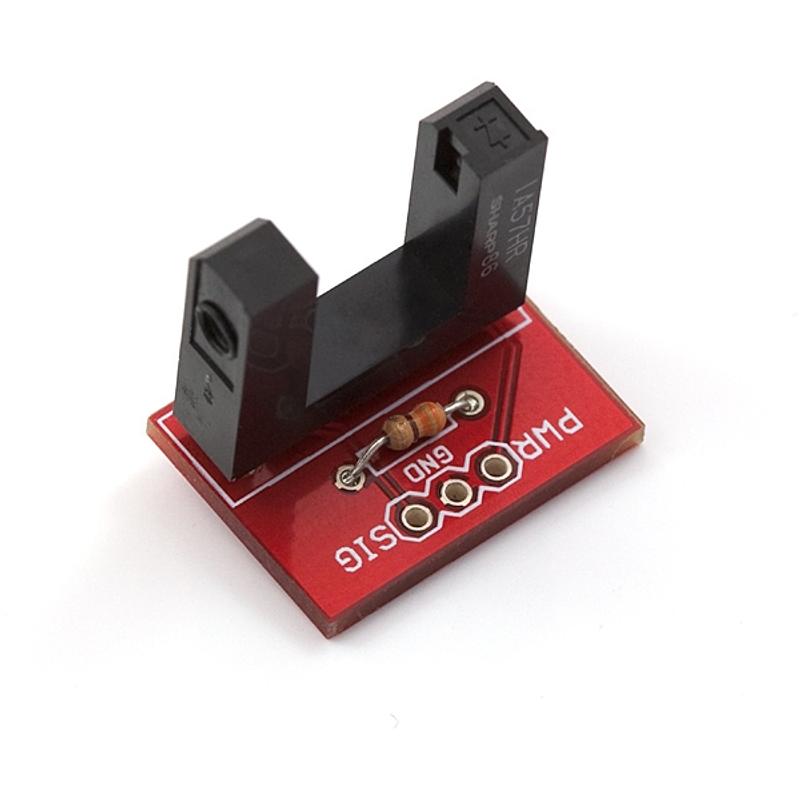

Assembled picture is for reference only, board comes bare; photo interrupter and the 220Ω (330Ω, works as well) current limiting resistor are listed below.
