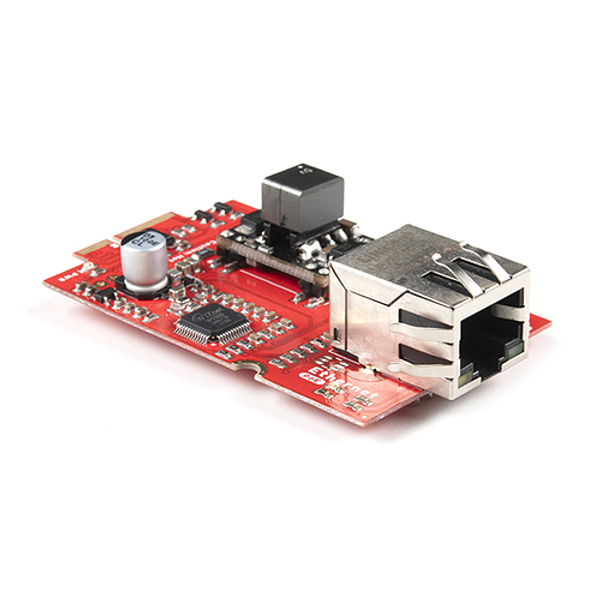

SparkFun MicroMod Ethernet Function Board - W5500

The SparkFun MicroMod Ethernet Function Board adds wired Ethernet connectivity and Power-over-Ethernet (PoE) to any MicroMod assembly. Built around the WIZnet W5500 hardwired TCP/IP controller and an Ag9900M PoE DC/DC converter, it lets you connect and power a MicroMod project from a single Ethernet cable.

The W5500 communicates over SPI at up to 80 MHz and supports eight simultaneous independent sockets with TCP, UDP, IPv4, ICMP, ARP, IGMP, and PPPoE protocols. The on-board PoE converter accepts 36–57 V input and delivers 9 W at 5 V, configured for IEEE 802.3af Alternate B (power on spare pairs 4,5 and 7,8).

Key Features

• WIZnet W5500 Ethernet Controller – Hardwired TCP/IP with 32 KB internal buffer
• High-Speed SPI – Up to 80 MHz clock for fast Ethernet communication
• 8 Independent Sockets – Simultaneous TCP/UDP connections
• Power-over-Ethernet – Ag9900M DC/DC converter, 9 W at 5 V output, IEEE 802.3af compliant
• PoE Input Range – 36 V to 57 V
• RJ45 with Integrated Magnetics – 10/100 Base-T with link and activity LEDs
• Wake on LAN – Remote wake via UDP
• Power Down Mode – Low-power standby for energy-conscious designs
• M.2 Connector – Standard MicroMod Function Board form factor

Ideal For

• PoE-powered IoT sensor nodes and data loggers
• Wired network connectivity for MicroMod projects
• Industrial monitoring and automation

Package Contents

• 1× SparkFun MicroMod Ethernet Function Board (W5500)

Resources

• Hookup Guide
• Schematic (PDF)
• Board Dimensions
• W5500 Datasheet (PDF)
• Ag9900M PoE Module Datasheet (PDF)
• GitHub Hardware Repo
