SparkFun microB USB Breakout
Add a Micro-B USB connector to your project without the hassle of soldering tiny SMD pads. This compact breakout board routes all five pins — VCC, GND, ID, D...
Get notified when back in stock

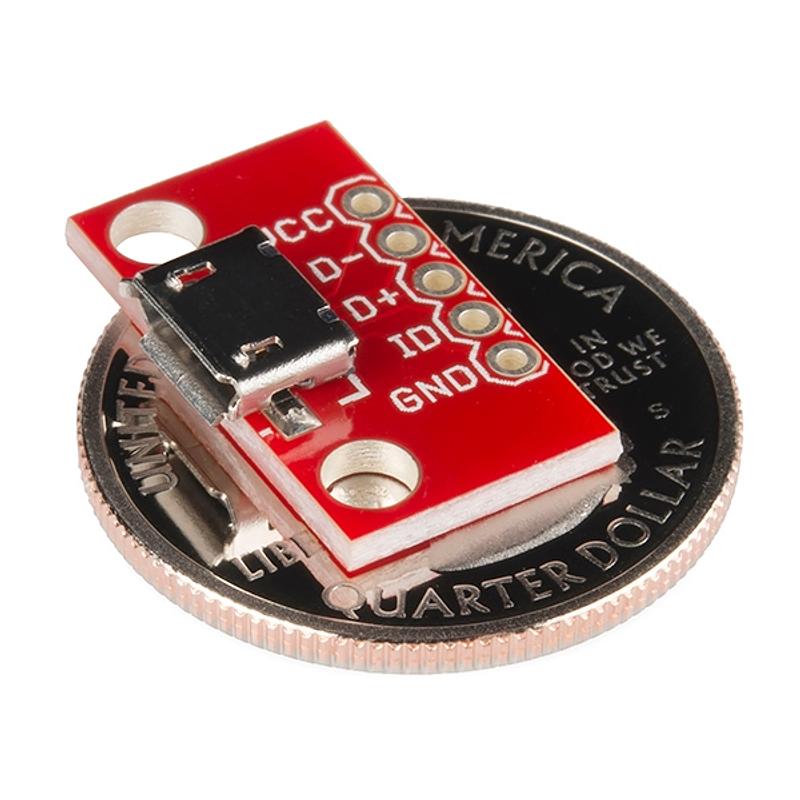

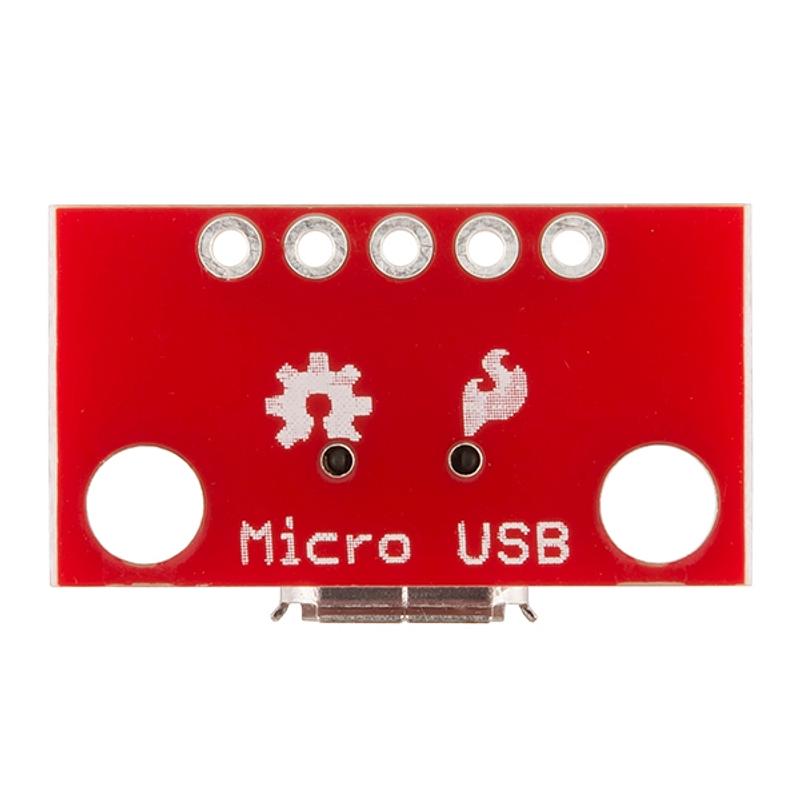

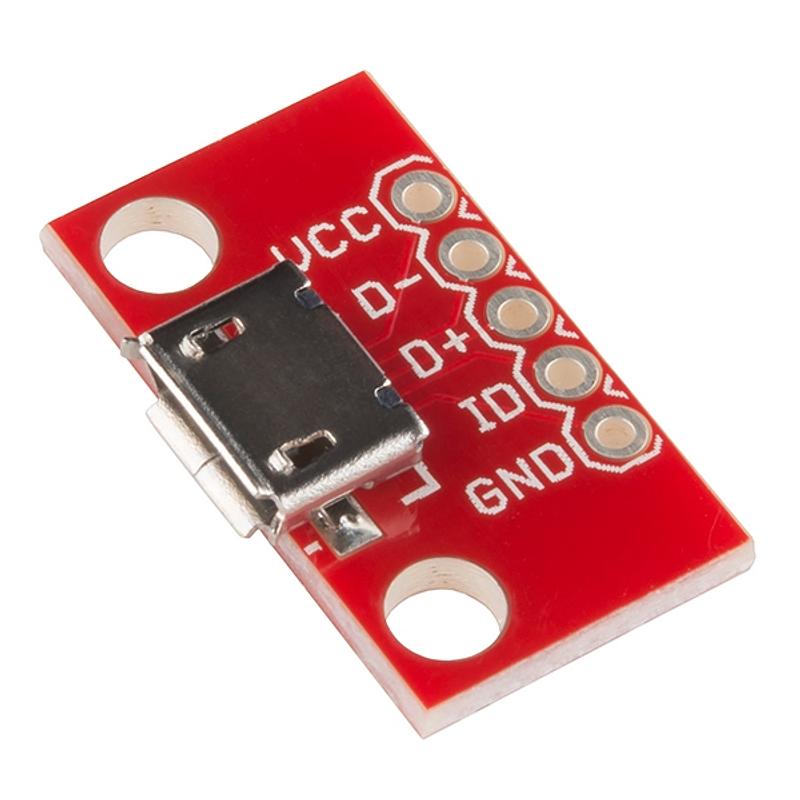

Add a Micro-B USB connector to your project without the hassle of soldering tiny SMD pads. This compact breakout board routes all five pins — VCC, GND, ID, D−, and D+ — to a standard 0.1" pitch header for easy breadboard or through-hole connection.
Specifications
- Connector – Micro-B USB
- Pins Broken Out – VCC, GND, ID, D−, D+
- Header Pitch – 0.1" (2.54mm)
- Dimensions – 20.3 × 11.4mm (0.8 × 0.45")
Ideal For
- Adding Micro-B USB power input to custom projects
- Prototyping USB data and power connections
- Any project needing a Micro-B USB port without SMD soldering
Resources
Jargon buster
Plain-language definitions for the technical terms used above.
- breakout
- A breakout board carries a small or fine-pitched component and brings its connections out to standard, breadboard- and header-friendly pins. Describing a part as a breakout means it can be wired into a project without soldering directly to the component's tiny contacts.
- GND
- GND is the ground or reference connection (0 V) for a circuit. When connecting two devices together, their grounds must be joined so both agree on what counts as a low or high signal.
- SMD
- SMD means surface-mount device, a component style designed to be soldered directly onto the surface of a circuit board rather than through holes. SMD parts are compact and mounted flat on the board, which suits smaller and mass-produced designs.
- through-hole
- A mounting style where the component leads pass through holes in a circuit board and are soldered on the other side. Through-hole parts are often easier to handle and solder by hand, which is useful for classroom and hobby projects.
- VCC
- VCC is the positive power-supply connection on a chip or module. Connecting it to the correct supply voltage is needed for the part to power on and helps avoid damaging the electronics.
Find this product in
Brands
Prototyping & Wiring
SparkFun microB USB Breakout Schematic
Schematic · 31.1 KB · Click any page to view full size
Supplier page — sparkfun.com
Supplier Description · 600.3 KB · Click any page to view full size
Resources & Downloads
Guides, code examples, and more
Source Code
Open-source libraries, firmware & example projects for this product
9d1460e
about 1 year ago
· 10 commits
- Hardware Input Value almost 9 years ago
- Production Files Panel Created almost 13 years ago
- .gitignore Swapped in new microB FP w/ bosses almost 13 years ago
- README.md Update README.md about 1 year ago
