SparkFun ATX Power Connector Breakout Kit - 12V/5V (4-pin)
Discontinued
The SparkFun ATX Power Connector Breakout Kit breaks out the standard 4-pin computer peripheral power connector, giving you easy access to both 12V and 5V rails with screw terminals. Ideal for projects that need dual-voltage power from a single supply.
This is a soldering kit — assembly is required. Once assembled, connect it to an ATX power supply's 4-pin peripheral connector or use the included 12V/5V wall adapter. Screw terminals make it easy to power projects directly or feed power to a breadboard.
Key Features
- Dual Voltage Output – 12V and 5V from one connector
- Screw Terminals – Easy connection for project wiring
- Wall Adapter Included – 100–240VAC input with 2-prong plug
- ATX Compatible – Standard 4-pin peripheral power connector
Note: This is an unassembled kit — soldering is required. Only the pin next to 5V is grounded. The pin next to 12V is not connected (NC). Refer to the bottom of the board for the pin layout.

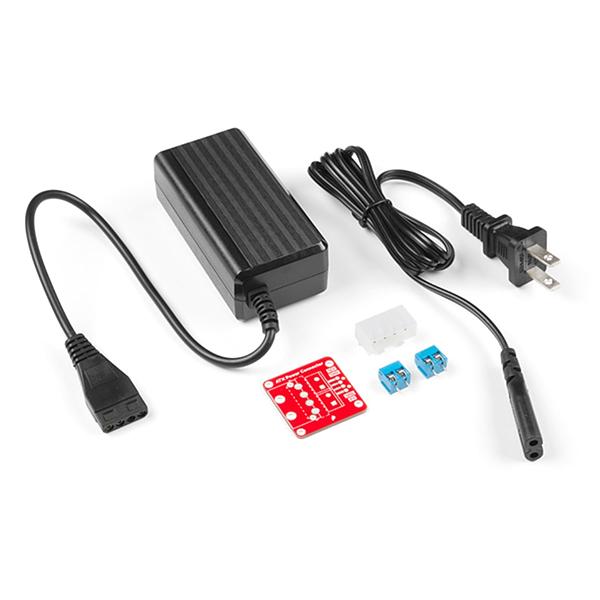

Package Contents
- 1× ATX power connector breakout PCB
- 1× 12V/5V wall adapter (100–240VAC, 2-prong plug)
- Screw terminals and header components
