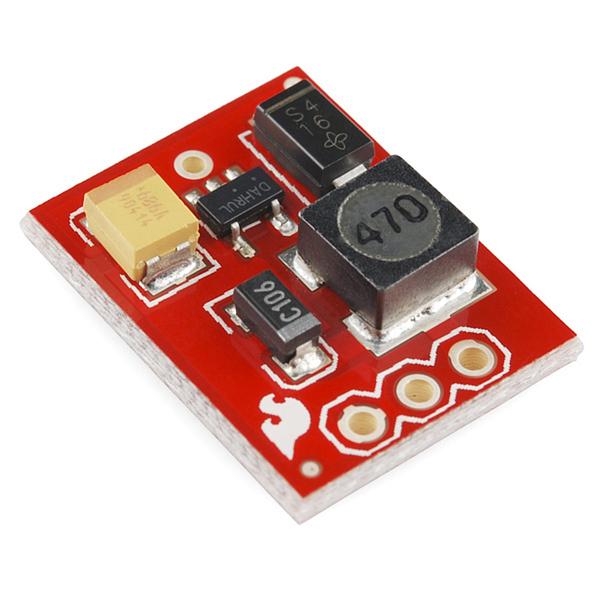

SparkFun 5V Step-Up Breakout - NCP1402
Discontinued
The NCP1402 is a 5V DC-DC converter. This breakout board will accept voltage inputs between 1 and 4 Volts and output a constant, low ripple 5V output capable of sourcing up to 200 mA. This board is great for supplying power to 5V sensors on a 3.3V board, or providing 5V from a AA battery.
The breakout board includes all of the necessary peripheral components. The input, output and ground pins are broken out on a 0.1" grid to allow easy access on a breadboard.
Documents:
- Schematic
- Eagle Files
- Datasheet
- GitHub (Design Files)
