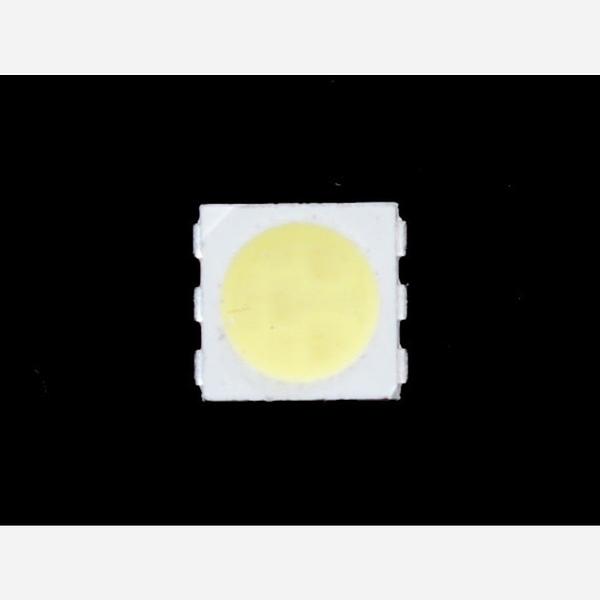

SMT Cool White 5050 LED - 10 pack [6500-7000K]

$7.55

Part Number:  AF-682
Brand:  Adafruit Australia

DescriptionThese surface-mount LEDs are an easy way to add a lot of bright white dots to your project. They're similar to the ones in Adafruit's digital RGB LED strip, same size and shape, but do not have red/green/blue LED chips inside. Instead, there are 3 ultra bright cool white (6500-7000K) LEDs. They are half a centimeter on a side, which makes them small but not...
We can dispatch today: - units (delivered by -)
We can dispatch in - days: - units (delivered by -)

Description

These surface-mount LEDs are an easy way to add a lot of bright white dots to your project. They're similar to the ones in Adafruit's digital RGB LED strip, same size and shape, but do not have red/green/blue LED chips inside. Instead, there are 3 ultra bright cool white (6500-7000K) LEDs. They are half a centimeter on a side, which makes them small but not so small that they are impossible to hand solder. The LED is insanely bright, at a eyeball-blistering 20 Lumens (~6000mcd with 120 degree beam width).

Comes in a strip of 10 pieces. If you order more than one strip, it will come as multiple strips of 10, not one long strip.

Please note this is a surface mount part! it is possible to solder thin wires to the pads but its designed for use on a SMT PCB. Adafruit do have an Eagle package for this LED in Adafruit's github library repository, called RGBLED5050 that you can use in your next PCB design.

Technical Details

  • Vf: 3.0 - 3.2V
  • Color Temperature: 6500-7000K
  • Brightness: 18-20 Lumens
  • Recommended Current drive: 55-60mA for all three LEDs (18-20mA each)

If you need some help using LEDs, please read Adafruit's "Introduction to using LEDs" tutorial for any electronics project.
