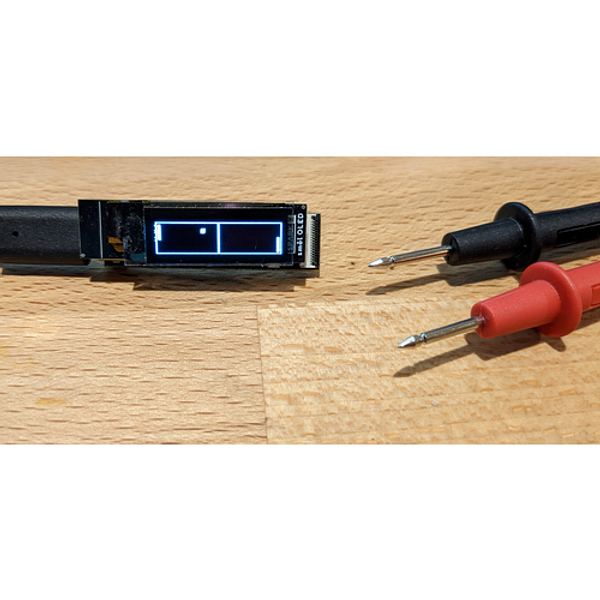

smôl OLED Display (0.91 in, 128x32)
Discontinued
The smôl OLED Display is a tiny 0.91" monochrome 128×32 pixel display designed for the smôl ecosystem. Using the common SSD1306 driver IC over I²C, it's fully supported by the SparkFun Qwiic OLED Arduino Library for fast, easy integration.
Part of the smôl range — miniature, low-power stackable boards connected via 16-way 0.5mm FPC cables. The OLED display has a single connector on the back, designed to sit as the top board in your smôl stack.
Key Features
- 0.91" OLED – High-contrast monochrome display, 128×32 pixels
- SSD1306 Driver – Widely supported, I²C interface at address 0x3C
- smôl Ecosystem – Stacks with other smôl boards via FPC
- Ultra-Compact – 40.6mm × 10.7mm × 4.5mm, weighs just 1.4g
Specifications
- Display Size: 0.91" diagonal
- Resolution: 128×32 pixels
- Driver IC: SSD1306
- Interface: I²C (address 0x3C)
- Dimensions: 40.6mm × 10.7mm × 4.5mm
- Weight: 1.4g
- PCB Thickness: 0.8mm
Ideal For
- Space-constrained IoT projects
- Wildlife tracking and environmental monitoring
- Wearable displays
- smôl ecosystem builds
Package Contents
- 1× smôl OLED Display (0.91", 128×32)
