SMD LED - RGB Inolux PI22TAT5R5G5B-2427 (Pack of 10)
Discontinued
The Inolux PI22TAT5R5G5B-2427 is an addressable RGB LED in a compact 2.4 × 2.7 mm SMD package. It uses the same 5 V single-wire protocol as WS2812B (NeoPixel) LEDs — with standard DI/DO data pins — but in a significantly smaller footprint, making it ideal for dense LED layouts and space-constrained designs.
Each LED provides 8-bit colour control per channel (256 brightness levels per colour), giving over 16 million possible colour combinations. The data timing is compatible with popular libraries such as FastLED.
Key Features
- WS2812B Compatible – Same 5 V single-wire protocol (DI/DO) as NeoPixel LEDs
- Ultra Compact – 2.4 × 2.7 mm SMD package
- 8-Bit Per Channel – 24-bit colour depth (16.7 million colours)
- Chainable – Standard data-in / data-out for daisy-chaining
- 4-Pin IC – 5 V, GND, DI, DO
Specifications
- Part Number – PI22TAT5R5G5B-2427
- Package Size – 2.4 × 2.7 mm
- Operating Voltage – 5 V
- Protocol – WS2812B-compatible single-wire
- Colour Depth – 8-bit per channel (24-bit RGB)
Ideal For
- Custom addressable LED PCB designs
- Dense LED arrays and matrices
- Wearable electronics
- Space-constrained lighting projects
Package Contents

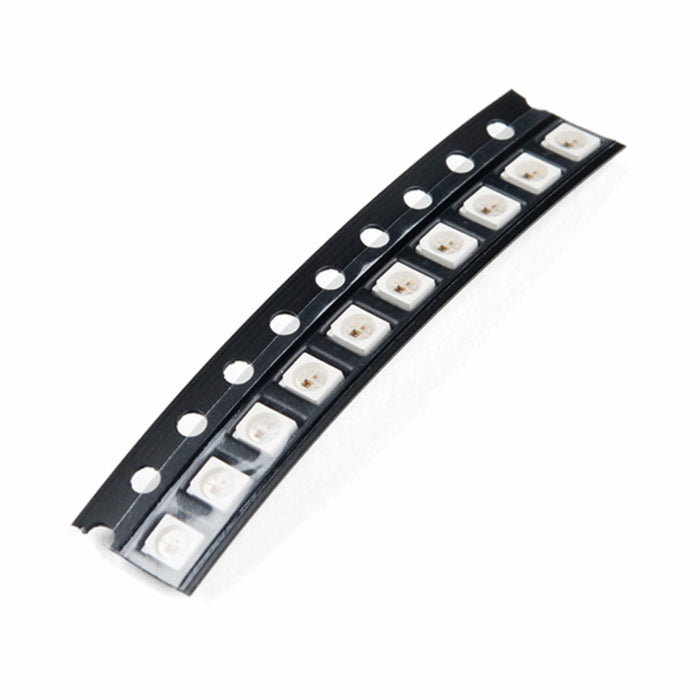

- 10× Inolux PI22TAT5R5G5B-2427 addressable RGB SMD LEDs
Note: These are SMD components and require reflow or hand soldering to a PCB. They are not breadboard-compatible.
