SmartLED Shield - Teensy 4

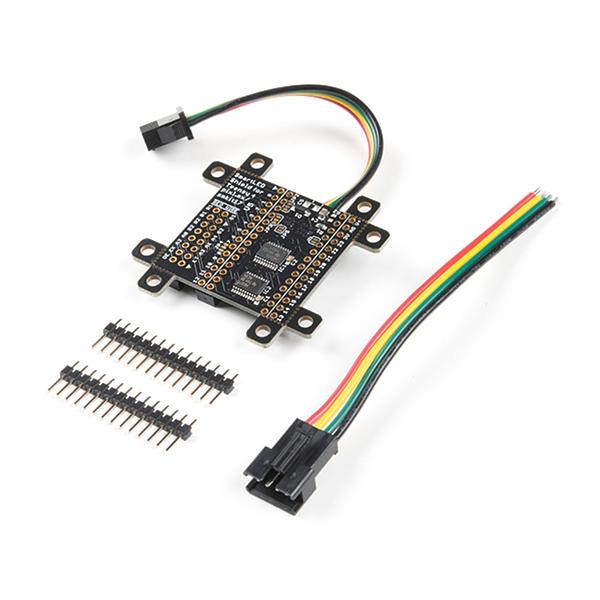

The SmartLED Shield enables the Teensy 4 to drive high-quality graphics to HUB75 RGB LED panels with 36-bit colour and 240 Hz refresh rates across large panels (e.g., 128 × 64 pixels). A Teensy 4.0 or 4.1 with pins fits directly into the shield's socket, and the shield connects to HUB75 panels either directly or via ribbon cable.

The SmartMatrix Arduino library provides a simple API for drawing graphics, scrolling text, rendering FastLED patterns, and playing animated GIFs. Special Teensy 4 peripherals handle display refresh in the background with minimal CPU usage, leaving the processor free for SPI communication, file decoding, or complex rendering.

Key Features

• 36-Bit Colour Refresh – Full colour range with smooth gradients and no visible brightness steps (up to 48-bit available)
• 240 Hz Refresh Rate – Flicker-free display even at high pixel counts
• Automatic Gamma Correction – 24-bit source graphics display with proper contrast without appearing washed out
• Global Brightness Control – Dim the panel without sacrificing colour depth
• Background Refresh – Minimal CPU usage leaves processing power for other tasks
• HUB75 Compatible – Direct connection or ribbon cable to standard RGB LED panels
• No Soldering Required – Beyond adding pins to the Teensy itself
• Removable Teensy – Swap between Teensy 4.0 and 4.1
• Expansion Rows – All long-edge Teensy signals broken out for prototyping

Ideal For

• Large RGB LED panel displays and signage
• Animated GIF playback on LED matrices
• FastLED pattern rendering
• Scrolling text and graphical displays

Package Contents

• 1× SmartLED Shield for Teensy 4

Resources

• Example Code & Getting Started
