Slide Pot - Medium (10k Linear Taper)
A simple slide potentiometer can go a long way. Rated at 10KOhm and 0.1W. Comes with solder tab connections. The pot has an overall travel of 30mm and has tw...

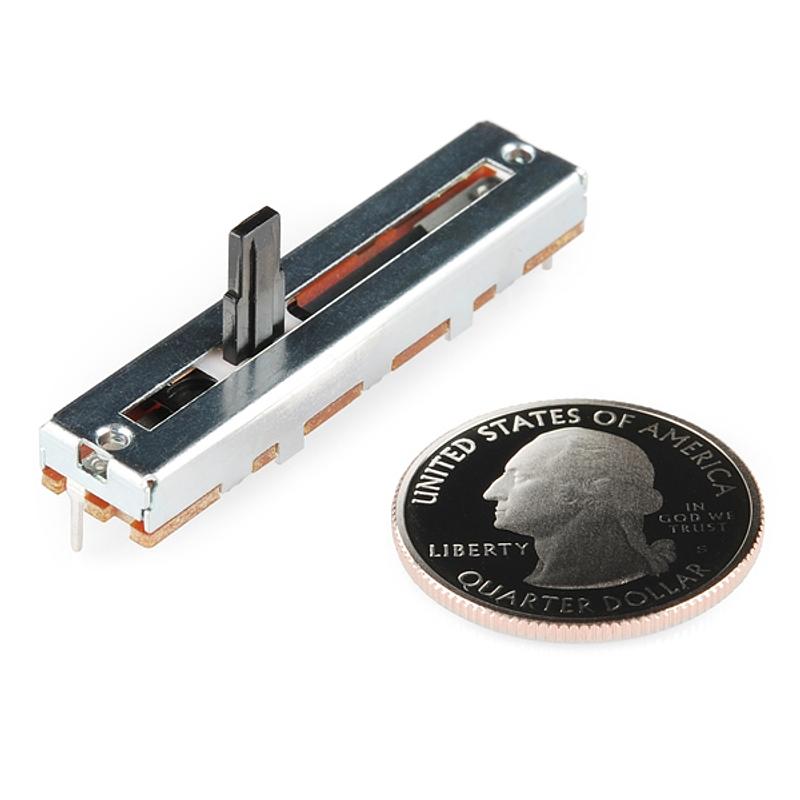

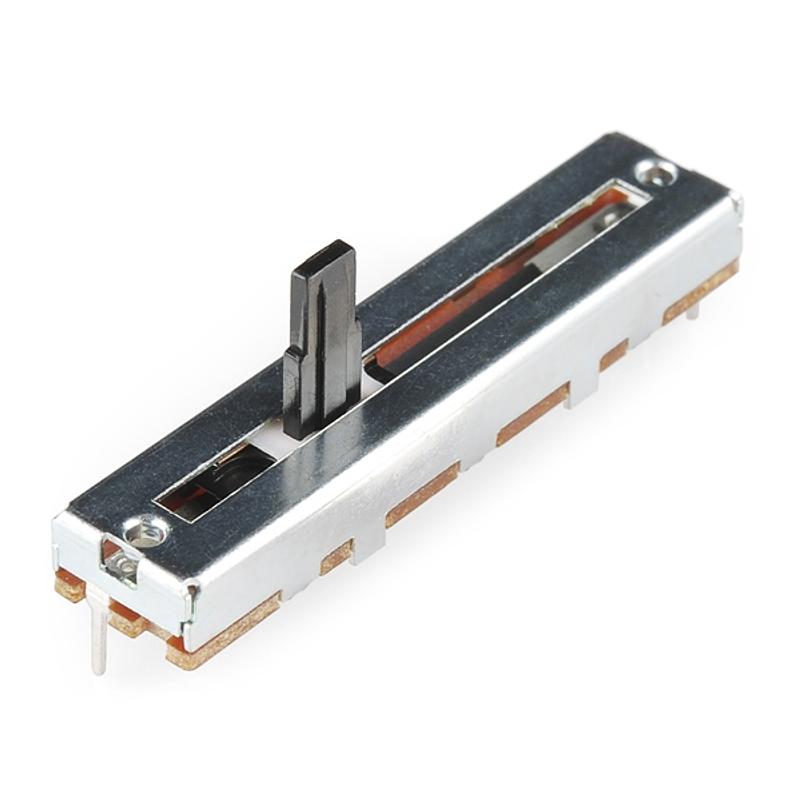

A simple slide potentiometer can go a long way. Rated at 10KOhm and 0.1W. Comes with solder tab connections. The pot has an overall travel of 30mm and has two mounting holes on top.
Dimensions: 9.5mm x 45mm
Documents:
- Datasheet (C3031N-1A2-B10K-GP)
Jargon buster
Plain-language definitions for the technical terms used above.
- potentiometer
- A variable resistor usually turned with a knob or shaft to create an adjustable electrical signal. It is often used for inputs such as volume, brightness or position, so it helps beginners learn how a microcontroller reads changing values.
Find this product in
Slide Potentiometer Datasheet
Datasheet · 1.1 MB · Click any page to view full size
Supplier page — sparkfun.com
Supplier Description · 463.9 KB · Click any page to view full size
